Air Conditioning & Heating System Trainer

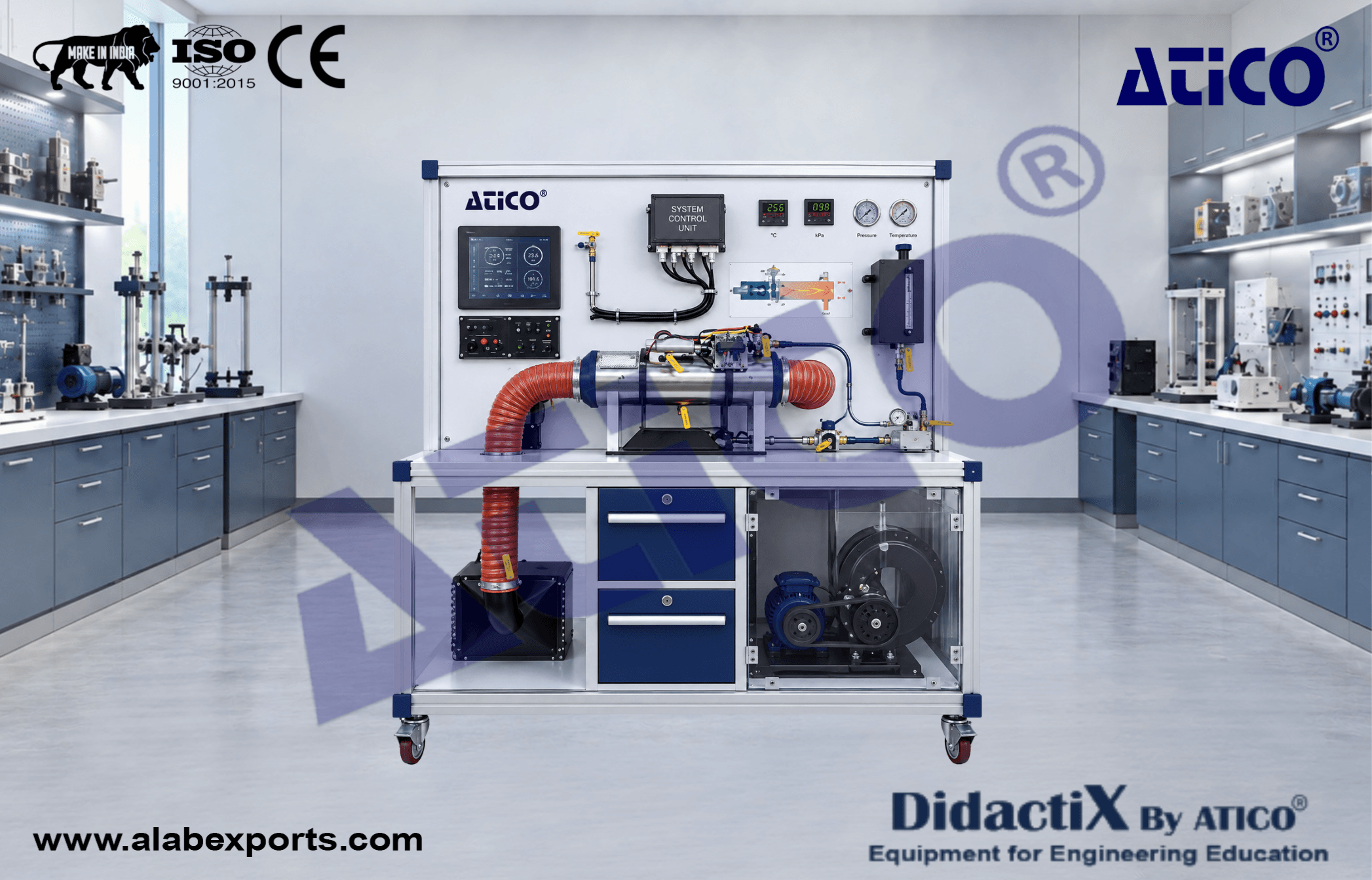

The Air Conditioning & Heating System Trainer demonstrates how an aircraft air conditioning and heating system functions.

The compact construction of the set allows trainees to understand the connections between the various parts of the system.

Manufactured by Atico Export with quality-focused production and attention to engineering specifications for teaching and training purposes.

Components :

Control Panel :

• Master caution
• Master warning
• Aural warning
• Circuit breaker
• Guarded master power switch
• Master power light

Air Conditioning Panel :

• Ventilation button

• Heater button

• Air conditioning button

• Heater running light

• Heater failure light

• Air conditioning manual/auto switch

• Set button

• Temperature control button

• ECAM/EICAS display to monitor the data

• System control computer

• Compressor motor

• Vapor cycle compressor

• Receiver dryer

• Condenser

• Combustion chamber

• Thermal switch

• Fuel tank with plumbing

• Fuel pump with electrical components

• Ignition system

• Thermal control switches

• Air blower and associated ducting

• Manual fuel shut-off valve

• Refrigerant low-pressure indicator

• Refrigerant high-pressure indicator

• Cabin air outlet port

• Metal aircraft cabin (simulated)

• Cabin air temperature sensor

• Outside air temperature sensor

• LAN output

Documentation :

• User’s Manual
• Study Guide
• Instructor’s Guide
• Training video for teachers

Power Specs :

• Electrical box
• LAN connection point
• Residual current device
• Emergency button
• Energy signal lamp
• 110 VAC, 60 Hz or 220–240 VAC, 50 Hz

Required Items :

• Refrigerant 134a
• Kerosene fuel

Optional Items :

• Pre-loaded Fault Panel Software with Laptop
• Computer Based Training Software

• Understanding fundamentals of aircraft air conditioning and heating system and its components
• The set is functional and configured like a typical aircraft air conditioning and heating system
• The selections made in the panels are visible on the screen
• Wiring on the trainer is connected via terminals
• Wires have clear identification labels for each wire
• All wires are coded and labeled for troubleshooting
• The system is mounted on a metal/aluminum mobile stand
• Metal/aluminum frame with 4 wheels, 2 of which are lockable
• Delivered fully assembled, tested and ready to operate
• Colored ultraviolet printing method on aluminum composite panel
