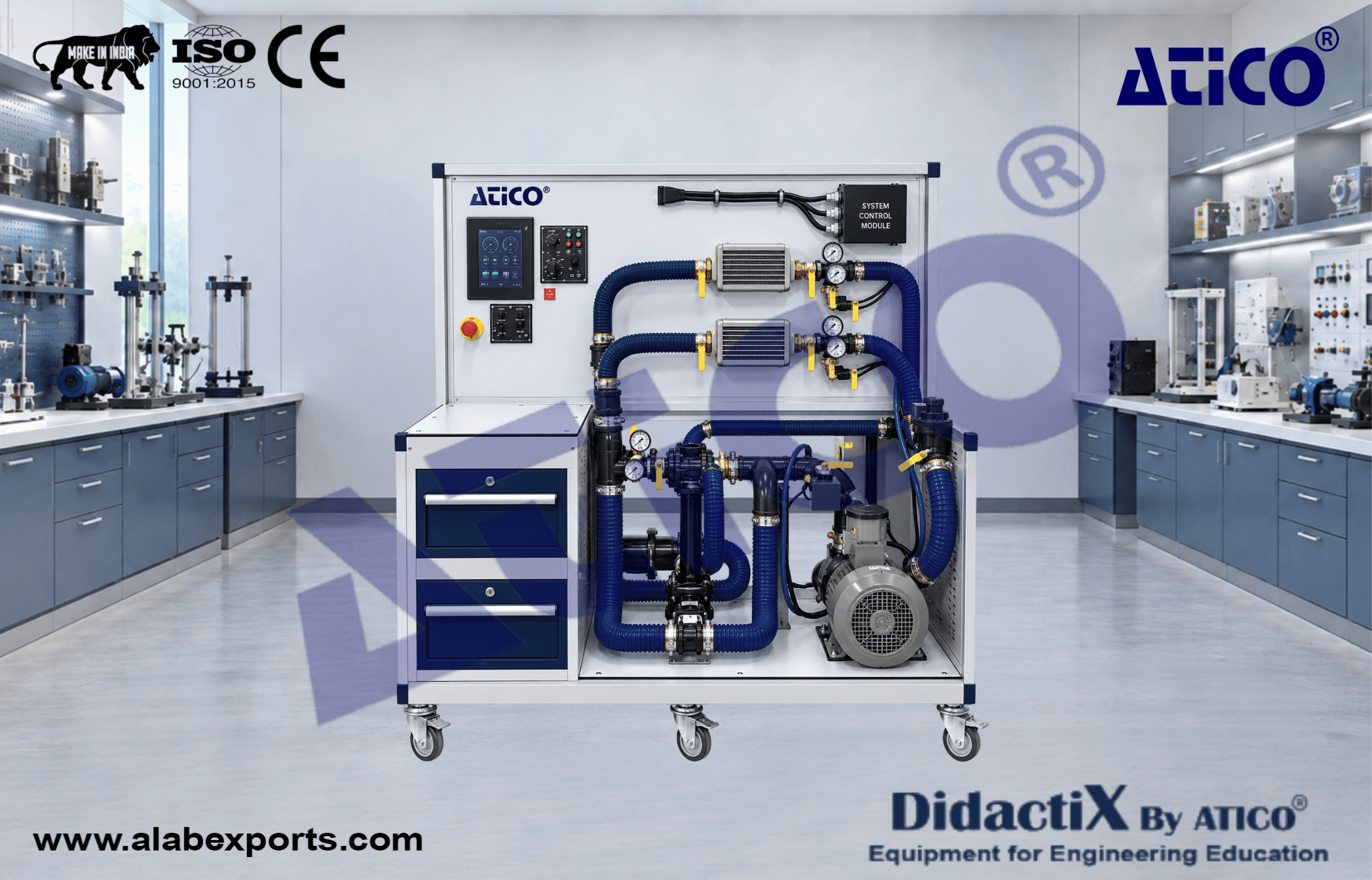

Air Cycle Machine Trainer

The Air Cycle Machine Trainer demonstrates how an aircraft air cycle machine system functions.

The compact construction of the set allows trainees to understand the connections between the various parts of the system.

Simulated turbine-engine bleed air represents a typical system in a modern turbine-engine-powered aircraft.

Manufactured by Atico Export with quality-focused production and attention to engineering specifications for teaching and training purposes.

Components :

• Air Cycle Machine (ACM) with compressor and turbine section
• Primary Heat Exchanger
• Secondary Heat Exchanger
• Water Separator
• Analog pressure and temperature sensors
• Digital pressure and temperature sensors
• Two ram air fans
• Engine throttle control knob
• Pack flow valve
• Pack flow valve position indicator lights
• Anti-ice valve
• Blower motor inverter for blower motor
• Blower motor
• Cabin air outlet port
• Valve position indicators located on the pack flow and temperature control valve itself
• Low-pressure and high-pressure bleed valve operation logic on the display
• Temperature control valve
• Digital display of the temperatures of the cabin chamber, bleed air and ambient air controller
• Bypass valve
• Ventilation blower
• Simulated bleed air source
• Master power panel
• Master power light
• Master caution panel
• Aural warning horn
• 7-inch touchscreen
• LAN output
• Circuit breakers
• 24 VDC power supply

Documentation :

• User’s Manual
• Study Guide
• Instructor’s Guide
• Training video for teachers

Power Specs :

• Electrical box
• LAN connection point
• Residual current device
• Emergency button
• Energy signal lamp
• 110 VAC, 60 Hz or 220–240 VAC, 50 Hz

Accessories :

• Instructor’s Panel Control Application without computer for scenario and fault simulation

• Understanding fundamentals of aircraft air cycle machine and its components
• The set is functional and configured like a typical aircraft air cycle machine system
• The selections made in the panels are visible on the screen
• Wiring on the trainer is connected via terminals
• Wires have clear identification labels for each wire
• All wires are coded and labeled for troubleshooting
• The system is mounted on a metal/aluminum mobile stand
• Metal/aluminum frame with 4 wheels, 2 of which are lockable
• Delivered fully assembled, tested and ready to operate
• Colored ultraviolet printing method on aluminum composite panel
