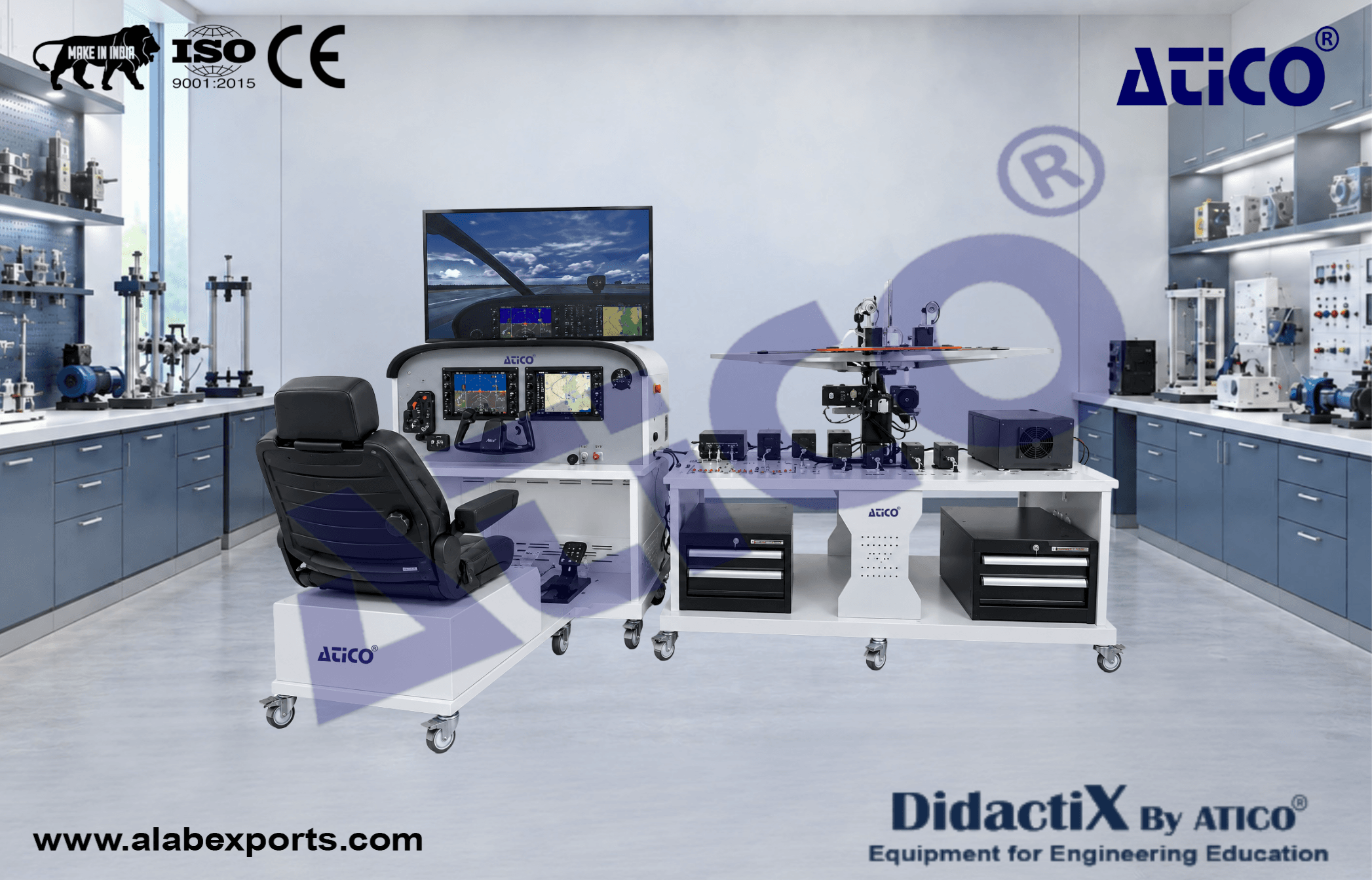

Aircraft Autopilot / Automatic Flight Controls Trainer

The Aircraft Autopilot / Automatic Flight Controls Trainer is an excellent resource for teaching the principles of automatic flight controls through demonstration using a complete system covering roll and pitch axis autopilot and automatic flight controls. The trainer includes a model aircraft that allows students to observe the operation of control surfaces and manually operate them using the yoke and rudder mechanism.

The system includes a realistic autopilot control panel, PFD and MFD displays, motorized yoke, rudder pedal mechanism, throttle and mixture controls, and synchronized flight indicators. Students can operate the aircraft manually or use the autopilot system to control the aircraft control surfaces and study automatic flight control functions.

The trainer supports autopilot, flight director, heading and altitude feedback, engine start procedures, automatic calibration, and instructor-controlled faults and scenarios. The system is mounted on a mobile metal/aluminum frame with four wheels, including two lockable wheels.

Designed and manufactured by Atico Export to meet the practical requirements of modern technical education laboratories.

Model Aircraft :

• Aircraft size: minimum 1400 mm × 1300 mm.
• Aircraft color: white.
• Aileron and elevator are different colors.
• Aileron and elevator can move.
• Aileron and elevator operate in sync with autopilot and yoke.
• 4 autopilot servos on the aircraft for aileron, elevator, rudder and pitch trim.
• Pitch, yaw, roll and pitch trim servos.
• 2 limit switches in servo.
• Servos operate in sync with autopilot and yoke.
• DOF system operates in sync with autopilot for aileron and elevator and with the yoke.
• One beacon light at the nose section of the model aircraft.

PFD/MFD System :

• Two PFD/MFD systems with bezels.
• PFD can be used as engine instruments in case of simulated failure.
• All buttons, switches and knobs can operate.
• Dual-control navigation knobs.
• Dual COMM rotary knob with three functions:
  • Outer ring tunes UHF/VHF frequency in MHz.
  • Inner ring tunes frequency in kHz.
  • Pressing the knob toggles the tuning cursor between COM1 and COM2 fields.
• Bezels include backlight function for night flights.

PFD/MFD Functions :

• Autopilot.
• Flight director.
• Pitch modes.
• Pitch Hold.
• Altitude Hold.
• Vertical Speed.
• Flight Level Change.
• Vertical Path Tracking.
• VNV Target Altitude Capture.
• Glidepath.
• Glideslope.
• Roll modes.
• Roll Hold.
• Heading Select.
• Navigation.
• Backcourse.
• Approach.
• Flight Plan.
• Invert Flight Plan.
• Parallel Track.
• Create ATK Offset Waypoint.
• Direct-to.
• Terminal Procedures.
• User-defined holding patterns.
• Navigation database.
• Inset map with zoom in/out, browsing, partial declutter, topo and terrain.
• VOR/ILS course select.
• ADF/VOR/Waypoint bearing indicator.
• CDI indicator.
• Wind.
• Bearing 1/2.
• HSI format.
• Altitude unit.
• Standard barometric pressure.
• DME source selection.
• Transponder settings.
• Timer and references including V speeds and minimums.
• Advisory and alerts.
• ADF dip.
• Automatic magnetic variation.
• Global navigation database and topo data.
• Engine status.
• Functional Map Setup.
• Flight plan storing/editing.
• Terminal procedures.
• User waypoint creating/editing.
• User-defined holding patterns.

PFD/MFD Controls :

• AP Key: Engages/disengages the autopilot and flight director. Pressing the AP Key activates the flight director and engages the autopilot in the default pitch and roll axis modes. Pressing the AP Key again disengages the autopilot and deactivates the flight director.
• HDG Key: Selects/deselects Heading Select Mode.
• NAV Key: Selects/deselects Navigation Mode.
• APR Key: Selects/deselects Approach Mode.
• VS Key: Selects/deselects Vertical Speed Mode.
• FLC Key: Selects/deselects Flight Level Change Mode.
• FD Key: Activates/deactivates the flight director only.
• ALT Key: Selects/deselects Altitude Hold Mode.
• VNV Key: Selects/deselects Vertical Navigation Mode.
• BC Key: Selects/deselects Back Course Mode.
• NOSE UP/NOSE DN Keys: Controls the active pitch reference for Pitch Hold, Vertical Speed and Flight Level Change modes.
• NAV VOL/ID Knob: Controls NAV audio level and toggles the Morse code identifier ON/OFF when pressed.
• NAV Frequency Transfer Key: Transfers standby and active NAV frequencies.
• Dual NAV Knob: Tunes MHz and kHz standby frequencies for the NAV receiver and toggles the tuning cursor between NAV1 and NAV2 fields.
• Heading Knob: Manually selects a heading on the HSI. When pressed, synchronizes the heading bug with the compass lubber line.
• Joystick: Changes the map range when rotated and activates the map pointer when pressed.
• CRS/BARO Knob: Large knob sets altimeter barometric pressure and small knob adjusts course.
• Dual COM Knob: Tunes MHz and kHz standby frequencies for the COM transceiver.
• COM Frequency Transfer Key: Transfers standby and active COM frequencies. Pressing and holding for two seconds automatically tunes the emergency frequency of 121.5 MHz.
• COM VOL/SQ Knob: Controls COM audio level.
• Direct-to Key: Allows the user to enter a destination waypoint and establish a direct course to the selected destination.
• FPL Key: Displays the active Flight Plan Page for creating/editing the active flight plan or accessing stored flight plans.
• Dual FMS Knob: Press to turn the selection cursor ON/OFF.
• PROC Key: Selects approaches, departures and arrivals from the flight plan and database.
• ENT Key: Accepts menu selections or data entries and confirms operations.
• Dual ALT Knob: Sets selected altitude. Large knob selects thousands and small knob selects hundreds; metric settings provide corresponding metric increments.

Additional Controls & Systems :

• All flight indicators operate in sync with the autopilot system.
• Aircraft position controlled by yoke.
• Yoke moves the aircraft control surfaces.
• Rudder pedal mechanism is metal.
• Rudder pedals move the aircraft control surfaces.
• Active throttle control.
• Active mixture control.
• Trainer master power and switch panel.
• Air/ground scenario selection switch.
• Engine start.
• Autopilot circuit breaker.
• Servo control switch.
• Beacon circuit breaker.

Documentation :

• User’s Manual.
• Study Guide.
• Instructor’s Guide.
• Device’s original Manual.
• Training video for instructors.

Power Specifications :

• Electrical box.
• Residual current device.
• Emergency button.
• Energy signal lamp.
• 110 VAC, 60 Hz or 220–240 VAC, 50 Hz.

Optional Items :

• Computer-based training software.

Upgrades :

• Gyro and HSI Indicator Package.

• Indicators operate in sync with the autopilot system.
• Aircraft position controlled by yoke and rudder system.
• Automatic/motorized yoke system.
• Yoke automatically moves in two axes using data from the autopilot computer.
• Automatic positioning is performed according to the position of the airplane.
• Metal rudder pedal system.
• Rudder surface moves in one axis according to manual rudder pedal inputs.
• Throttle and mixture lever operation.
• Yoke and rudder pedals can move the aircraft control surfaces in manual mode.
• Autopilot computer can move the aircraft control surfaces in autopilot modes.
• Servos operate in sync with autopilot, yoke and rudder pedals.
• 3 DOF system: 2-axis DOF + 1 DOF system.
• Heading feedback.
• Altitude feedback.
• Engine start process.
• Autopilot function.
• Flight director function.
• Aircraft automatically calibrated to runway position when the trainer is turned on.
• Instructor fault and scenario control window.
• Metal/aluminum mobile stand.
• Metal/aluminum frame with 4 wheels.
• 2 of the 4 wheels are lockable.
