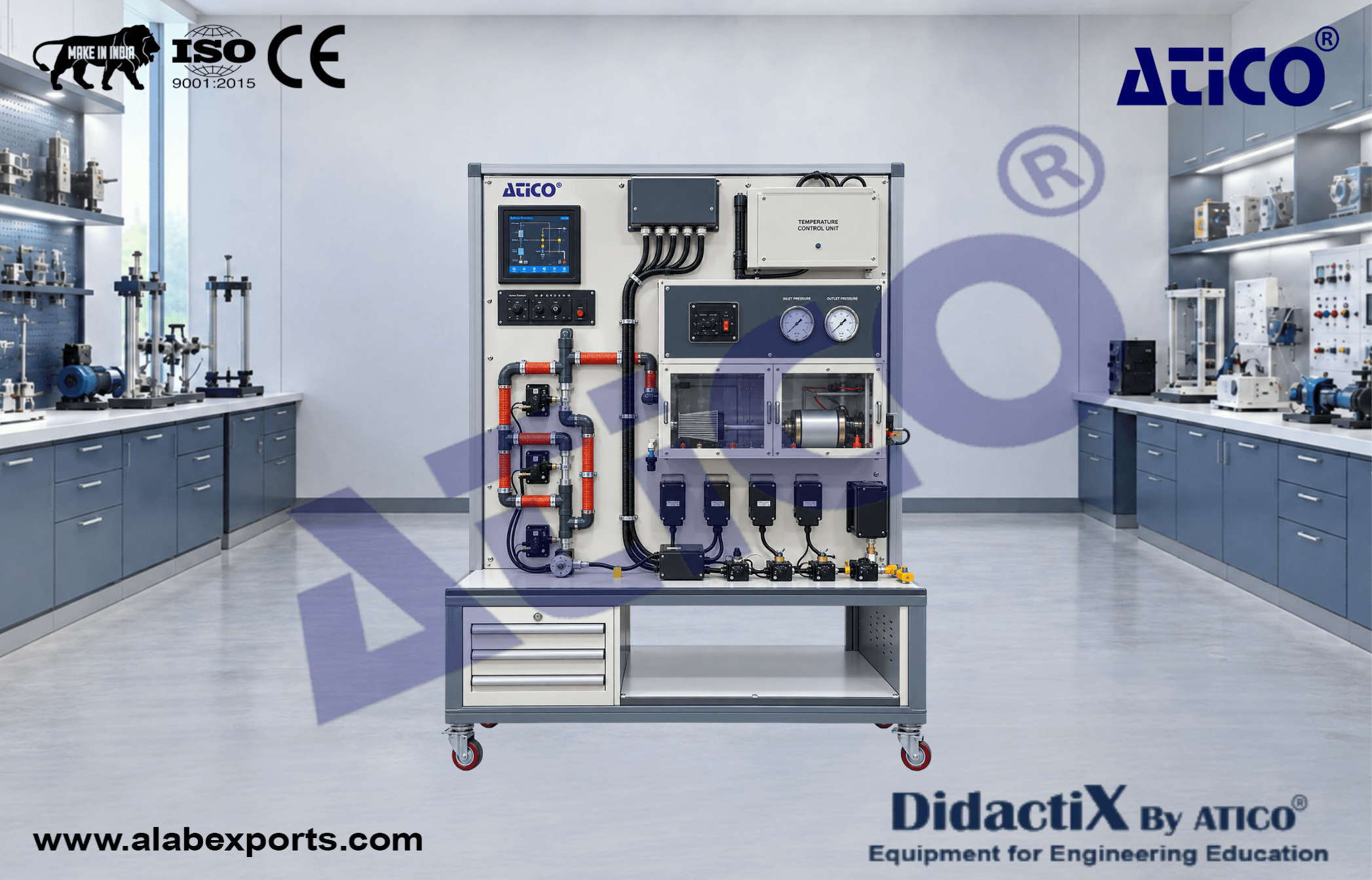

Aircraft Cabin Pressurization and Air Conditioning Training Set

The Cabin Pressurization Trainer demonstrates how an aircraft cabin pressurization and air conditioning system functions.

The compact construction of the set allows trainees to understand the connections between the various parts of the system and their role in regulating the cabin environment.

The trainer includes two chambers simulating altitude and cabin pressure.

The vacuum simulation chamber is able to simulate approximately 0–40,000 ft.

Manufactured by Atico Export with quality-focused production and attention to engineering specifications for teaching and training purposes.

Components :

Aircraft Air Conditioning Panel :

• Pack-1 Control
• Pack-2 Control
• ENG 1 Bleed
• ENG 2 Bleed
• APU Bleed
• Pack Flow Selector

Aircraft Auto-Pilot Control Panel :

• Vertical Speed Selector

• Altitude Knob

• Control Switch

• Terminals

• Master Power Panel

• Master Power Light

• Master Caution Panel

• Aural Warning Horn

• Test Panel

• Circuit Breakers

• LAN Output

• Outflow Valve Control Boxes

• Outflow Valve Terminals

• Vacuum Chamber (Altitude Simulator)

• Cabin Pressure Chamber (Cabin Simulator)

• Regulator (Simulates Air to Cabin)

• Cabin Pressure Sensor

• 24 VDC Power Supply

• PSU (Passenger Service Unit)

10-inch Lower ECAM :

• Vertical Speed Indicator

• Altimeter Indicator

• Cabin Altimeter

• Cabin Pressure

• Air Pressure

• Differential Pressure

• Status Area

  • Flow Status
  • Pack Flow Status
  • Bleed Status
  • Auto-Pilot Status
  • Pressurization Mode
  • Temperature
  • Air/Ground

• Minimum two (2) outflow valves

• Minimum two (2) outflow control computers

Aircraft Cabin Pressurization Panel :

• Manual V/S Control Switch
• Mode Selector
• LDG ELEV Knob

Documentation :

• User's Manual
• Instructor's Guide
• Study Guide
• Training video for teachers

Power Specs :

• Electrical box
• Residual current device
• Emergency button
• Energy signal lamp
• 110 VAC, 60 Hz or 220–240 VAC, 50 Hz

Required Items :

• Air Compressor: Maximum 90 PSI pressure outlet

Accessories :

• Instructor's Panel Control Application without computer for scenario and fault simulation

• Understanding fundamentals of aircraft cabin pressurization and its components
• The set is functional and configured like a typical aircraft cabin pressurization system
• The trainer includes the following functional panels
  • Aircraft Cabin Pressurization Panel
  • Aircraft Air Conditioning Panel
  • Aircraft Auto-Pilot Panel
  • Test Panel
  • Master Power Panel
  • Master Caution Panel
• Two transparent cabins in the training set to simulate the interior of the cabin
• Two (2) outflow valves, one (1) negative pressure safety valve and one (1) positive pressure safety valve are provided in the transparent cabin
• Outflow valves are engine controlled
• The valves in the cabin pressurization system operate automatically during take-off and landing
• Cabin pressurization valves are controlled both manually and automatically
• The trainer is able to perform fully automatic take-off and landing
• Indicators, panels and valves work simultaneously during landing and take-off simulations
• Take-off and landing simulations are controlled from the auto-pilot panel
• Vertical speed and altitude are determined and selected during take-off and landing
• Valve failures are easily observed on gauges and panels
• Pack, bleed, pack flow and temperature selections are made at the air conditioning panel
• Two transparent cabins are provided in the training set to simulate the interior of the cabin
