Aircraft Dual Electrical System Trainer

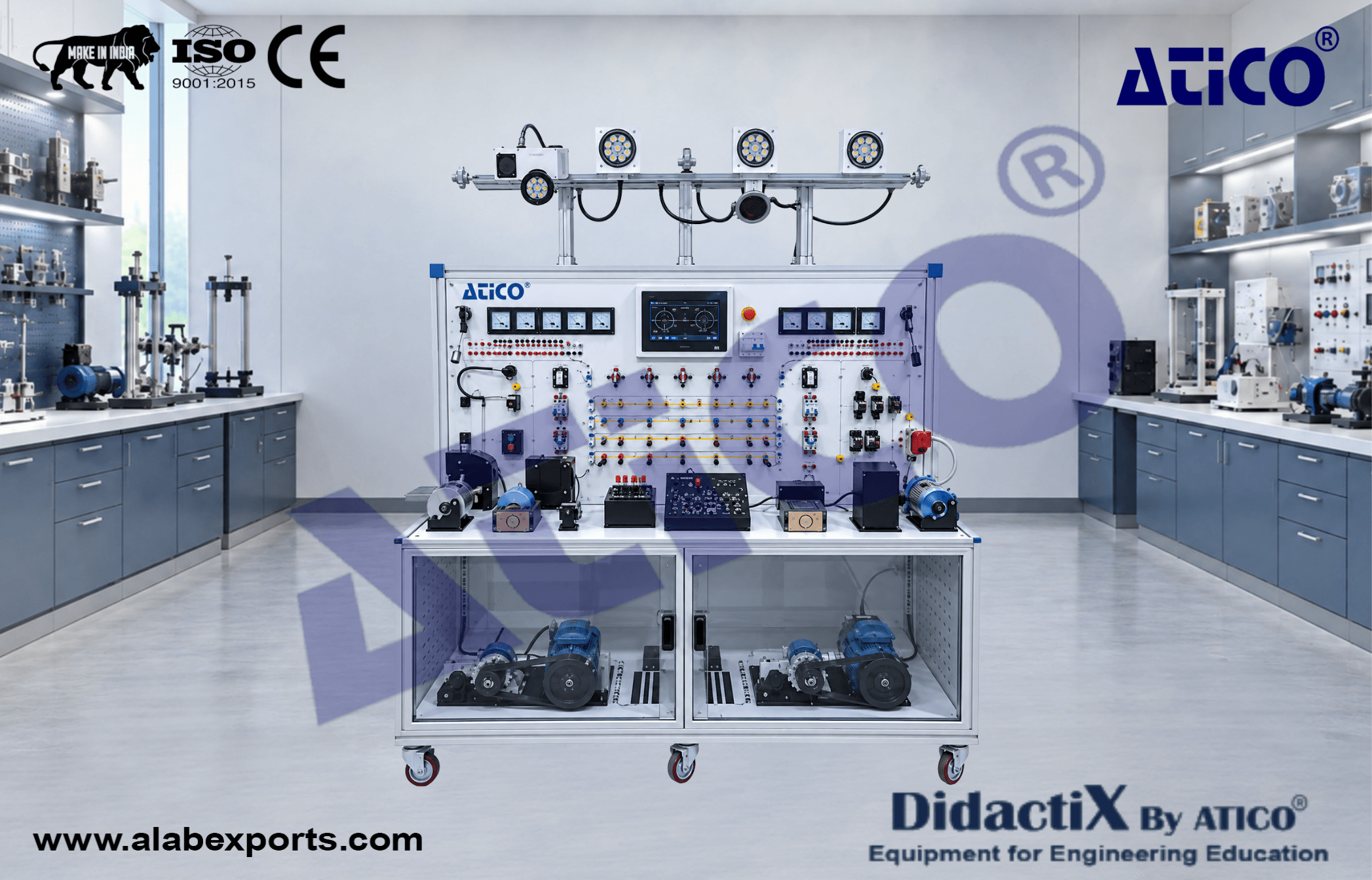

The Aircraft Dual Electrical System Trainer is a comprehensive system that is ideal for training on an aircraft dual-engine electrical system. By using this trainer, students learn the functionality of each component and develop a logical and systematic approach to performing troubleshooting tasks.

The system is designed to depict a typical aircraft electrical system and contains standard aircraft components and wiring. It is a complete functional simulation of a dual-engine 28V DC electrical system integrated with a 115/26 VAC, 400 Hz system.

Manufactured by Atico Export with quality-focused production and attention to engineering specifications for teaching and training purposes.

Components :

Control Panel :

• All bus control switch
• All load controls
• Navigation light control
• Beacon control
• Voltmeter selector knob
• External lights control switches
• Internal lights control switches

Breaker (CB) Panel :

• Generator 1 CB
• Generator 2 CB
• APU CB
• DC Essential Bus CB
• Shed Bus CB
• Dome Light CB
• Navigation Light CB
• Strobe Light CB
• Beacon Light CB
• Cabin Blower CB
• Landing Gear Actuator CB
• Avionics Blower CB
• Inverter CB

Relays :

• Bus 1 Relay
• Bus 2 Relay
• Avionics Bus Relay
• Non-Essential Bus Relay
• Generator 1 Relay
• Generator 2 Relay
• Bus Tie Relay
• Battery Bus Relay
• Essential Bus Relay
• Battery Starter Relay
• EPU Starter Relay
• EPU Bus 1 Control Relay
• EPU Bus 2 Control Relay
• Starter relays for left and right starters

Electromechanical Loads Generator :

• Landing Gear Motor
• Landing Gear Actuator
• Cabin Air Blower
• Avionic Blower
• Left Starter Motor
• Right Starter Motor

External Lights :

• Navigation Lights with Strobes
• Tail Light
• Beacon Light
• Retractable Landing Light
• Take-off Light
• Taxi Light
• Runway Turnoff Light

Bus Bars :

• Two AC buses, 115 VAC, 400 Hz
• Two AC buses, 26 VAC, 400 Hz
• Avionics Bus
• AC Essential Shed Bus
• DC Essential Shed Bus
• Battery Bus
• Battery Hot Bus
• DC Main Bus 1
• DC Main Bus 2
• Essential Bus
• Ground Bus 1
• Ground Bus 2

Internal Lights :

• Cabin Light
• Reading Light
• Map Light
• Dome Light

Instruments :

• Load status
• Two analog voltmeters
• Analog ammeter
• Two hour meters
• Analog pressure gauge
• Analog temperature gauge
• Two analog fuel level gauges

Sensors :

• Temperature Sensor
• Pressure Sensor
• Left Fuel Level Sensor
• Right Fuel Level Sensor
• Left Shunt
• Right Shunt

Wiring :

• Aircraft wires with clear identification labels for each wire
• All wires are coded and labeled for troubleshooting

Generator Controls (For Two Generators) :

• Electronically controlled generators
• Driven motor control switch and light
• Driven motor speed control knob (throttle lever for both engines)
• Voltage regulators

AC Powers :

• Static inverter
  • 115 VAC @ 400 Hz
  • 26 VAC @ 400 Hz

DC Powers :

• Two 24-volt generators driven by electric motors

• Aircraft EPU plug

• Aircraft EPU socket

• Stall warning horn

Documentation :

• User’s Manual
• Study Guide
• Instructor’s Guide
• Training Video for Teachers

Power Specs :

• Electrical box
• LAN connection point
• Residual current device
• Emergency button
• Energy signal lamp
• 110 VAC, 60 Hz or 220–240 VAC, 50 Hz

Optional Items :

• Pre-loaded Fault Panel Software with Laptop
• Computer Based Training Software

Required Items :

• Lighter
• Air Compressor: Maximum 90 PSI pressure outlet
• Two 12-Volt Batteries

Upgrades :

• Ground Power Upgrade
• Ram Air Turbine Upgrade

• Understanding fundamentals of aircraft electrical system and its components
• Typical aircraft dual electrical system
• Typical cockpit instrumentation, circuit breakers and controls
• Digital instrument panel (ECAM) system
• Analog instruments
• DC and AC power systems
• Representative DC and AC loads
• AC and DC bus system including main, auxiliary, bus, generator, AC and avionics buses
• Internal and external lights
• Split bus system
• Battery charging system
• Distribution terminal strip
• The system is mounted on a metal/aluminum mobile stand
• Metal/aluminum frame with 4 wheels, 2 of which are lockable
• Delivered fully assembled, tested and ready to operate
• Colored ultraviolet printing method on aluminum composite panel
• All components are connected via terminals
