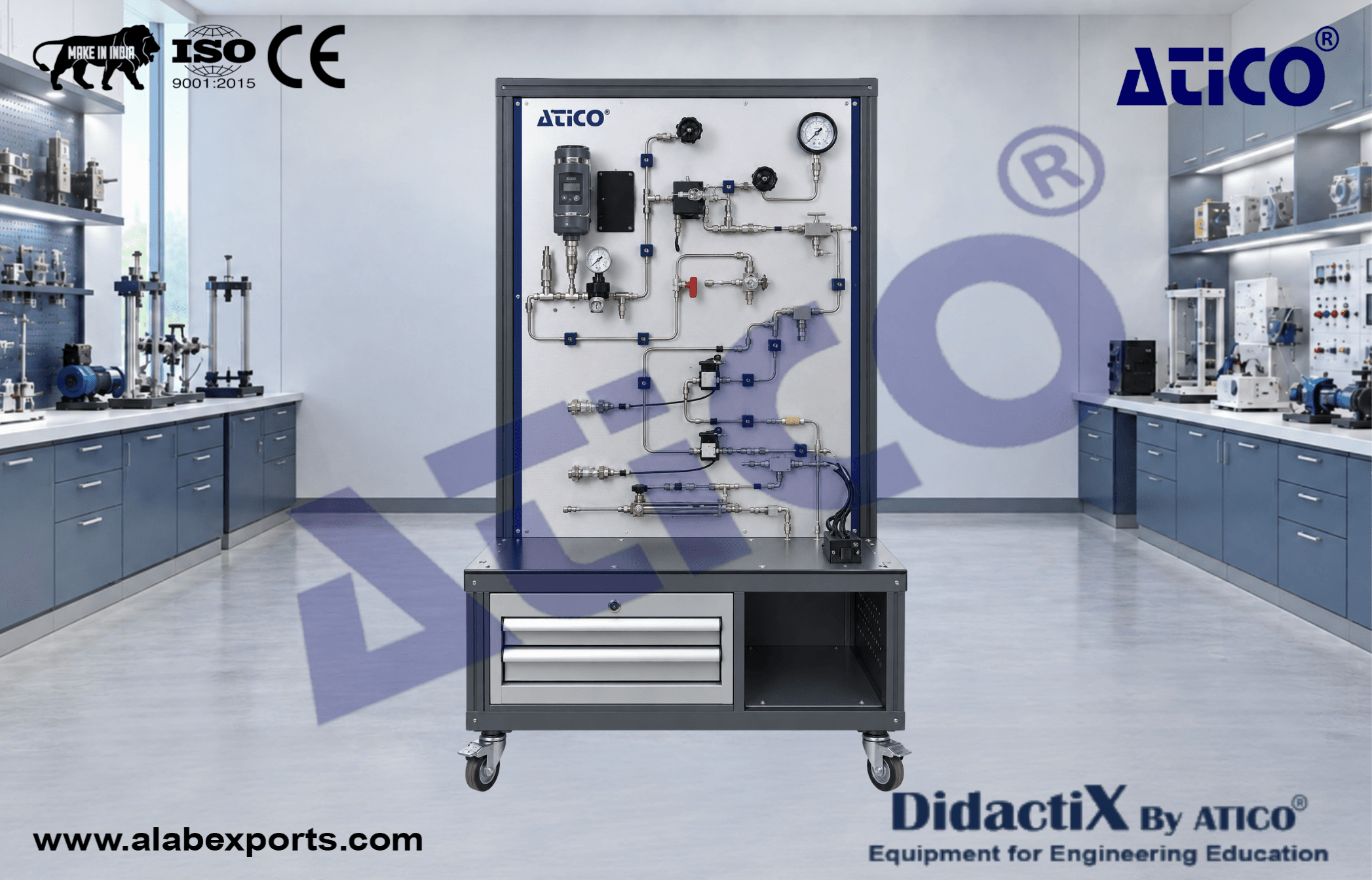

Aircraft Emergency Pneumatic Trainer

The Aircraft Pneumatic System Trainer is designed to provide hands-on training on a functional pneumatic system. The system represents a pneumatic system used as an emergency backup for a hydraulic system, such as an emergency braking system in case of hydraulically actuated brake failure.

The trainer can be operated by a switch that allows air pressure from a reservoir to operate an actuator. The reservoir can be refilled after use from any pressurized air source, such as shop air or an air compressor.

Manufactured by Atico Export with quality-focused production and attention to engineering specifications for teaching and training purposes.

Components :

• Air Pressure Gauge.
• Pneumatic Reservoir.
• Pneumatic Actuators (Qty. 2).
• Filler Valve.
• Air Filter.
• Selector Valve / Solenoid Control Valve.
• Shuttle Valve.
• Check Valve.
• Regulator.
• Moisture Separator.
• Air compressor not included; must be purchased locally.

• Understanding the main backup pneumatic system and its components.
• Understanding the emergency braking system.
• Understanding the emergency backup system for hydraulic system failure.
• Wiring on the trainer is connected via terminals.
• Wires have clear identification labels for each connection.
• All wires are coded and labeled for troubleshooting.
• The system is mounted on a metal/aluminum mobile stand.
• Metal/aluminum frame with 4 wheels; 2 of 4 wheels are lockable.
• Delivered fully assembled, tested, and ready to operate.
• Colored ultraviolet printing method on aluminum composite panel.
