Aircraft Glass Cockpit Trainer

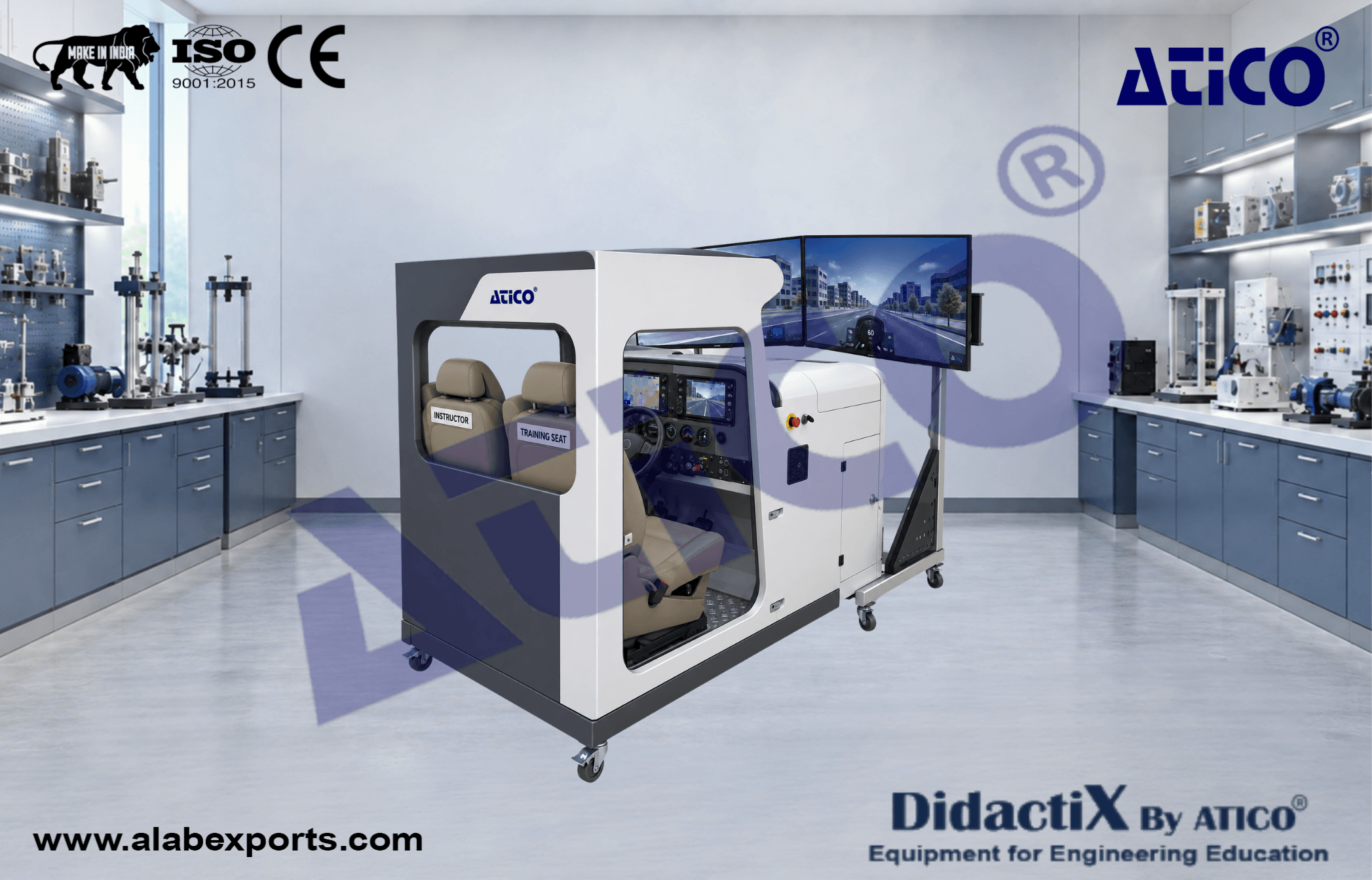

The Aircraft Glass Cockpit Trainer is a complete and fully functional simulation of a typical aircraft cockpit. It includes essential flight, engine, autopilot and pitot-static instruments and is designed to teach trainees the operation of a glass cockpit panel.

The trainer models a modern integrated glass cockpit system and is suitable for avionics technician and pilot training. All functions of the panel are available for practical operation and demonstration.

The system includes dual PFD/MFD displays, switch and audio panels, standby gauges, throttle and mixture controls, engine start key, dual-control yokes, dual rudder and brake mechanisms and adjustable pilot seats. The cockpit structure provides access to electronic parts and the computer for servicing.

The trainer incorporates flight director, autopilot, navigation, flight planning, terminal procedures, navigation database, engine status, map functions and other cockpit features for comprehensive practical training.

Designed and manufactured by Atico Export to meet the practical requirements of modern technical education laboratories.

Components :

Screen System :

• Screen system
• Two PFD/MFD
• Switch Panel
• Audio Panel
• Standby Gauges
• Throttle
• Mixture Lever
• Engine Start Key
• Full-scale Yoke: 2 units
• Full-scale Rudder Pedal: 2 units
• Two adjustable seats with belts
• Openable front surface for servicing electronic parts and computer

Bezels :

• All buttons, switches and knobs are operational
• Dual COMM rotary knob with three functions:
  • Outer ring tunes UHF/VHF frequency in MHz
  • Inner ring tunes frequency in kHz
  • Pressing the knob toggles the tuning cursor between COM1 and COM2 fields
• Backlight function for night flights

Autopilot and Flight Director :

• Autopilot
• Flight director
• Pitch modes
• Pitch Hold
• Altitude Hold
• Vertical Speed
• Flight Level Change
• Vertical Path Tracking
• VNV Target Altitude Capture
• Glidepath
• Glideslope
• Roll modes
• Roll Hold
• Heading Select
• Navigation
• Backcourse
• Approach

Navigation and Flight Planning :

• Flight plan
• Invert Flight Plan
• Parallel Track
• Create ATK Offset Waypoint
• Direct-to
• Terminal Procedures
• User-defined holding patterns
• Navigation database
• VOR/ILS course select
• ADF/VOR/Waypoint bearing indicator
• CDI indicator
• DME source selection
• Transponder settings
• Automatic magnetic variation
• ADF dip

Map and Display Functions :

• Inset map with zoom in/out
• Map browsing
• Partial de-clutter
• Topographic and terrain information
• Wind information
• Bearing 1/2
• HSI format
• Altitude unit
• Standard barometric setting
• Timer and references including V-speeds and minimums
• Advisory and alerts
• Synthetic Vision available as an optional software feature
• No traffic, storm scope or NEXRAD radar functions specified

PFD/MFD :

• Global navigation database and topographic data
• Engine status
• Functional Map Setup
• Flight plan storage and editing
• Terminal procedures
• User waypoint creation and editing
• User-defined holding patterns

Standby Gauges :

• Digital gauges with analogue appearance
• ALT
• ADI
• Customizable ASI

Dual-Control Yoke :

• Sectorized two-yoke system
• Auto-center position
• Yoke rods: 20 mm diameter chrome metal
• Metal yoke mechanism for durability
• Fiberglass yokes

Dual-Control Rudder and Brake Mechanism :

• Sectorized two rudder pedals
• Brake functions
• Metal rudder mechanism for durability
• Painted rudder mechanism for long service life
• Rudder yaw, steering and brake pedal position provided by absolute encoder or potentiometer located inside the rudder mechanism
• Dual-controlled rudder brake function operating similar to real aircraft brake pedals

Switch Panel :

• Active STBYBATT switch with ARM/TEST/OFF positions
• Active STBYBATT switch with green TEST light
• Active MASTER switch with BATT and ALT positions
• Active AVIONIC switch with BUS1 and BUS2 positions
• Active BEACON, LAND, TAXI, NAV, STROBE, FUEL PUMP, PITOT HEAT and CABIN PWR 12V switches
• Active PANELS, STBY IND, PEDASTAL and AVIONIC rotary knobs
• Adjustable backlight brightness

Throttle :

• Friction adjustment for throttle control
• Full range: 60 mm

Mixture Lever :

• Vernier control for mixture control
• Full range: 60 mm

Engine Start Key :

• Five positions: OFF, R, L, BOTH, START
• 30° between each notch
• Spring-loaded to BOTH position between BOTH and START positions

View Control :

• Rotary knob for changing pilot view in left and right directions
• Rotary knob for changing pilot view in up and down directions

Documentation :

• User’s Manual
• Instructor’s Guide
• Device’s Original Manual
• Training Video for Teachers

Power Specifications :

• Electrical box
• Residual current device
• Emergency Button
• Energy Signal Lamp
• 110 VAC, 60 Hz or 220–240 VAC, 50 Hz

Optional Items :

• Aircraft Glass Cockpit Trainer Autopilot Module
• Computer-Based Training Software
