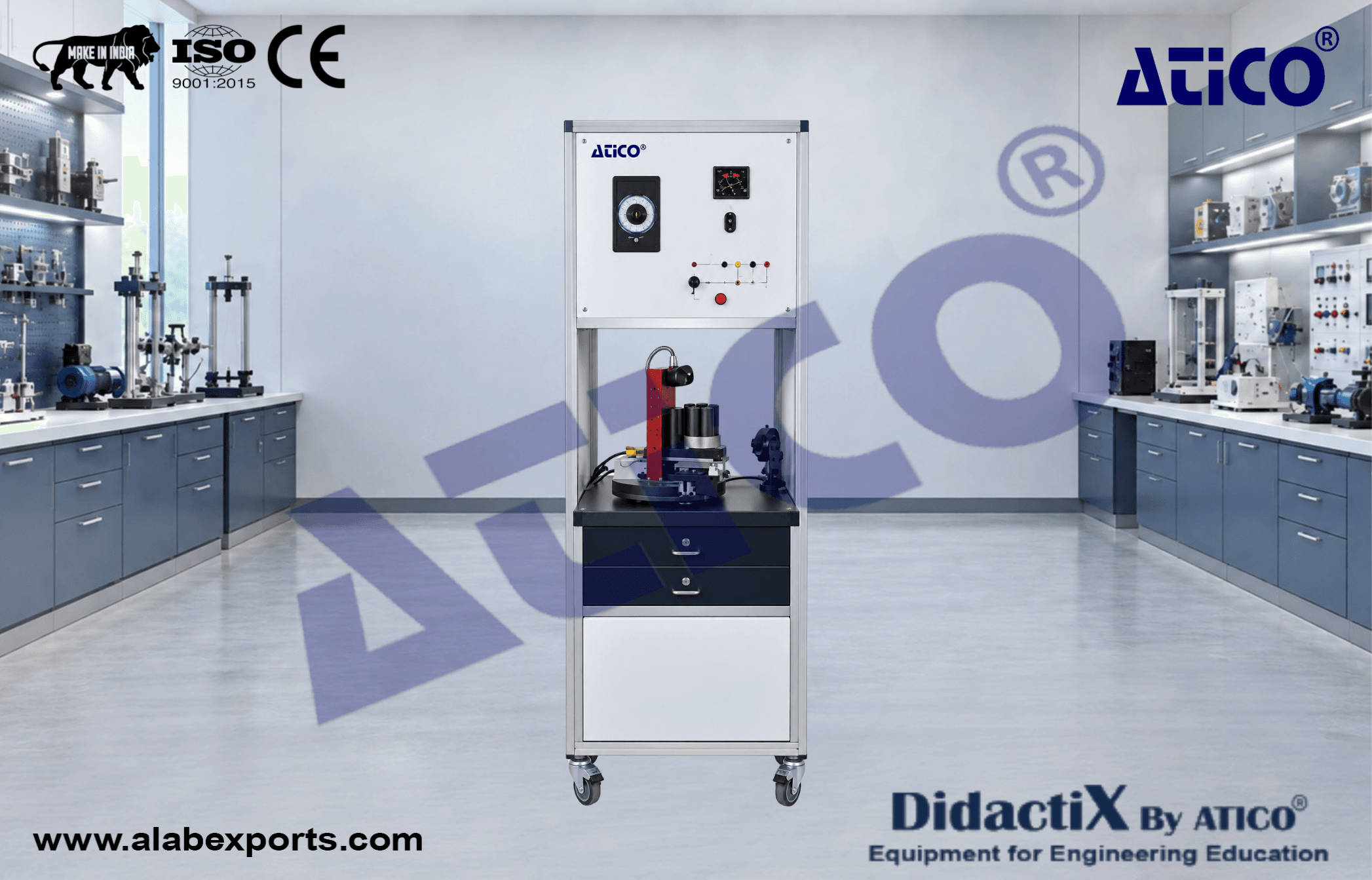

Aircraft Gyroscope Training Set

Aircraft Gyroscope Training Set is designed to teach the operational principles, functions and components of aircraft gyroscope and magnetic compass systems. Trainees can operate the system and observe the information through the indicator display.

The trainer also supports learning of maintenance principles and practical operation of aircraft magnetic compass and gyroscope systems.

Manufactured by Atico Export with a focus on precision, durability and consistent performance for technical education and practical training.

Components :

• Pictorial Navigation Indicator (HSI)
• Directional Gyro
• Flux Detector (Magnetic Azimuth Transmitter)
• Slaving Accessory
• Digital Instrument
• DC Power Box
• Circuit Breaker

Components Technical Specifications :

Pictorial Navigation Indicator :

• Lubber line
• NAV warning flag
• Heading select bug
• Compass warning flag
• Selected course pointer
• To/From indicator
• GS deviation scale
• Compass card
• VOR/LOC deviation bar

Directional Gyro :

• Remote-mounted unit
• Mounting tray
• Power: 14 or 28 V DC
• 300-degree free-turn system for testing

Flux Detector :

• Magnetic azimuth transmitter for sensing the direction of the earth's magnetic field

Slaving Accessory :

• Slave/Free Gyro switch
• Slaving meter indicator
• CW/CCW adjustment

Digital Instrument for Gyro Degree :

• Size: 7 inch minimum
• Touchscreen operation
• Real-time display

Documentation :

• User's Manual
• Study Guide
• Instructor's Guide
• Device's Original Manual
• Device's Original Wiring Diagrams
• Training Video for Teachers

Power Supply :

• Electrical box
• Residual current device
• Emergency button
• Energy signal lamp
• 110 VAC, 60 Hz or 220–240 VAC, 50 Hz

Accessories :

• Instructor's Panel Control Box for Scenario and Fault Simulation

Manufacturing :

• Manufactured by Atico Export with attention to applicable quality, safety and functional requirements for technical education applications.

• Fully functional and configured like a typical aircraft magnetic compass system
• Compass system provides a comprehensive visual display of aircraft heading and position in relation to a desired course
• Complete slaved compass system including magnetic slaving transmitter, slaving control and compensator unit, directional gyro and pictorial navigation indicator
• Combines directional gyro display functions with VOR/LOC course deviation and glideslope deviation indication
• Pictorial Navigation Indicator provides a visual display of the horizontal navigation situation
• Manual controls for course and heading datum selection
• System outputs suitable for automatic pilot, flight director, VOR receivers and additional compass loads
• Directional gyro provides gyro-stabilized magnetic heading to the system indicator
• Magnetic azimuth transmitter senses the direction of the earth's magnetic field and transmits this information to the pictorial navigation indicator
• Slaving accessory includes slaving meter, slaving switches and correction circuitry for local magnetic disturbances
• Supports understanding of aircraft magnetic compass system fundamentals and components
• System mounted on a metal/aluminum mobile stand
• Metal/aluminum frame with four wheels
• Two of the four wheels are lockable
