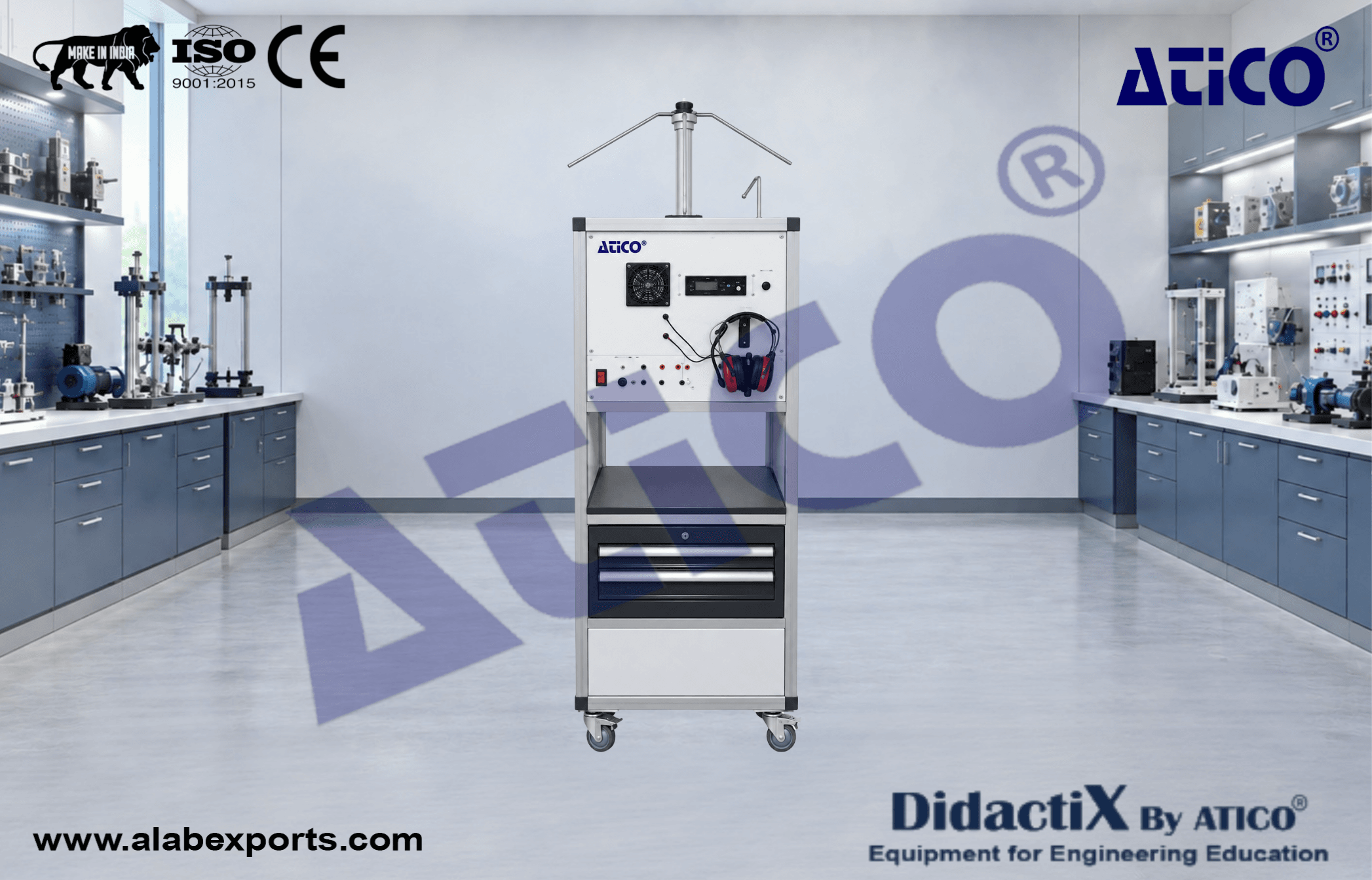

Aircraft Navigation & VHF System Trainer

Aircraft Navigation & VHF System Training Set is designed to teach the operational logic, functions and components of aircraft navigation and VHF communication systems. Trainees can operate the navigation and VHF communication systems and observe the information through the indicator display.

The trainer represents aircraft navigation and aircraft communication systems and supports practical training on navigation and VHF communication system operation.

Designed and manufactured by Atico Export to meet the practical requirements of modern technical education laboratories.

Components :

• NAV/COM Device
• Pictorial Navigation Indicator (HSI)
• NAV Antenna
• COM Antenna
• Digital Instrument
• DC Power Box
• Circuit Breaker

Components Technical Specifications :

NAV/COMM Device General Specifications :

• Solid-state, gas-discharge digital display NAV/COMM transceiver
• 720 or 760 frequency COMM available
• 200-channel NAV receiver
• Built-in VOR converter
• Maximum 25 kHz channel spacing with 8.33 kHz capability
• COM frequency range: 118.000 to 136.975 MHz minimum
• NAV receiver frequency range: 108.00 MHz to 117.95 MHz in 50 kHz increments
• VOR/LOC converter accuracy:
  • VOR typical bearing error less than 0.5° with precision track selector, 2° maximum error
  • LOC typical centering error less than 3 μA, 7 μA maximum error
• Receiver selectivity:
  • 6 dB at 34.8 kHz minimum
  • 80 dB at 84.0 kHz maximum
• Input voltage range: 14 or 28 VDC
• Operating temperature range: -18 to +50°C minimum
• Built-in VOR/Localizer converter
• VOR receiver displays to/from and radial
• Active and standby flip-flop frequencies
• Volume control
• Frequency memory and recall
• Digital display
• Output: 10 watts minimum
• Frequency stability: ±0.0015%
• Adjustable up to 100 mW into 500-ohm headphones
• 6 dB bandwidth: ±8.1 kHz
• 60 dB bandwidth: ±20.0 kHz
• Physical dimensions:
  • Width: 6.25 inches (15.88 cm)
  • Height: 2.05 inches (5.21 cm)
  • Depth: 10.16 inches (25.81 cm), including connector
• Installation manual

Pictorial Navigation Indicator :

• Lubber line
• NAV warning flag
• Heading select bug
• Compass warning flag
• Selected course pointer
• To/From indicator
• GS deviation scale
• Compass card
• VOR/LOC deviation bar

Headset :

• 24 dB NRR hearing protection
• 3.5 mm music input port
• Noise-reflective cup microphone
• Performance audio speakers
• Foam-fit comfort ear seals
• Deep-pocket ear canals
• Wind-block foam microphone muff
• Stainless-steel adjustable headband

Dynamic Microphone :

• Impedance: 50–600 ohms
• Includes 5 ft. coiled cord with right-angle plug and hanger bracket

Documentation :

• User's Manual
• Study Guide
• Instructor's Guide
• Device's Original Manual
• Device's Original Wiring Diagrams
• Training Video for Teachers

Power Supply :

• Electrical box
• Residual current device
• Emergency button
• Energy signal lamp
• 110 VAC, 60 Hz or 220–240 VAC, 50 Hz

Required Items :

• NAV/COM tester for effectively testing the avionics system
• Navigation test system for testing VOR, LOC, ILS, Marker Beacon, Transponder and DME operation

Accessories :

• Instructor's Panel Control Box for Scenario and Fault Simulation

Optional Items :

• VHF radio for transmitting and receiving radio voice transmissions
• Computer-Based Training Software

Manufacturing :

• Manufactured by Atico Export with quality-focused production and attention to engineering specifications for teaching and training purposes.

• Fully functional and configured like a typical aircraft navigation system
• Navigation indicator with VOR/LOC course deviation indication and glideslope deviation and flag in one compact indicator
• Pictorial Navigation Indicator provides a visual display of the horizontal navigation situation
• Manual controls for course and heading datum selection
• System outputs suitable for automatic pilot, flight director, VOR receivers and additional compass loads
• System mounted on a metal/aluminum mobile stand
• Metal/aluminum frame with four wheels
• Two of the four wheels are lockable
