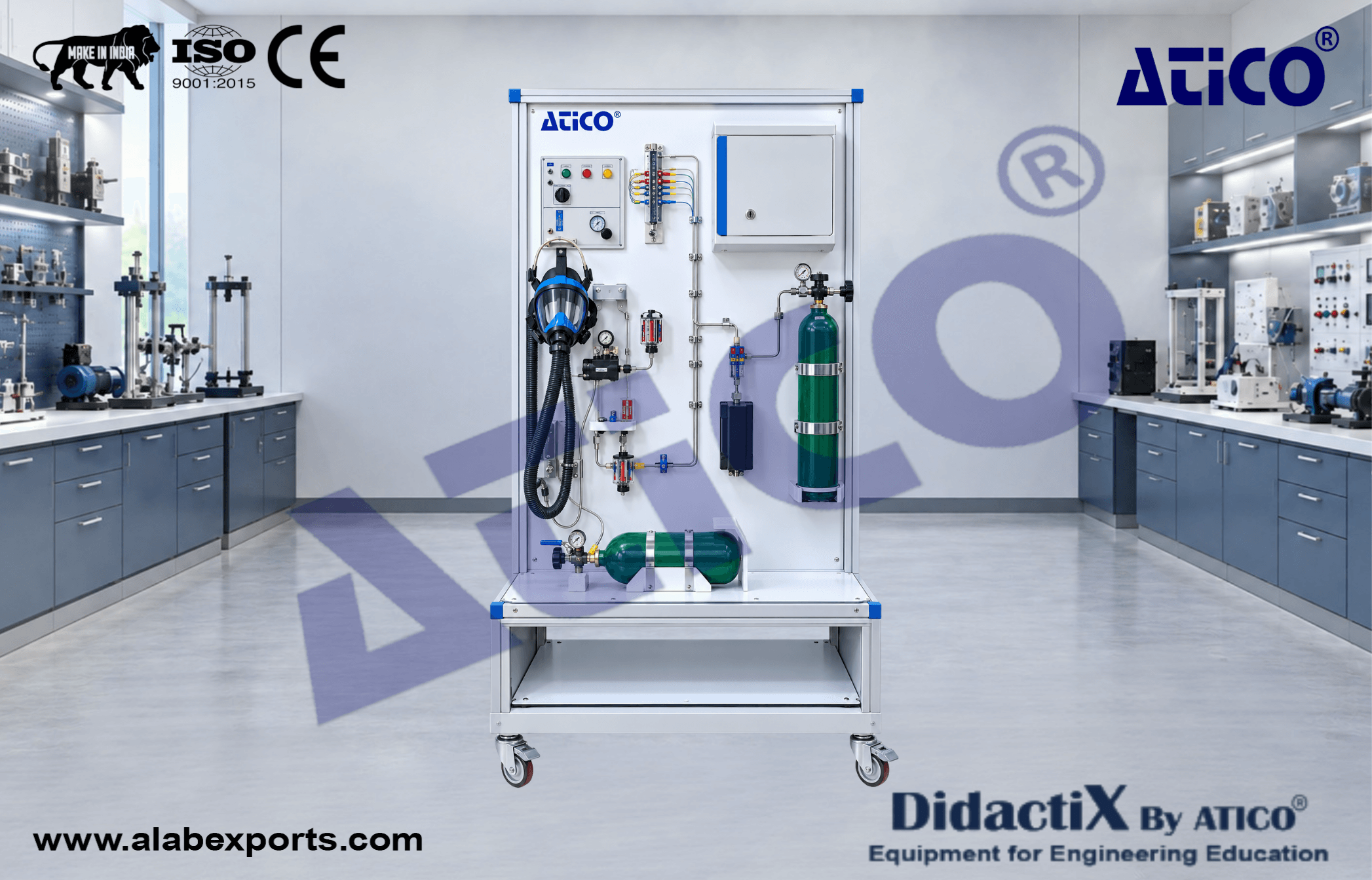

Aircraft Oxygen System Trainer B

This training set is a fully functional typical aircraft oxygen system. The external filler valve includes an orifice which restrains the filling rate, and it is protected by a cap so that contamination is prevented when the charging line is not connected.

The pressure regulator in the system adjusts the pressure in the cylinder to an amount that is usable by the masks.

NOTE: Pilot mask type may be changed according to stock availability.

This trainer allows practical tasks of EASA PART 147 ATA-35-00-00 to be performed.

Manufactured by Atico Export with quality-focused production and attention to engineering specifications for teaching and training purposes.

Components :

Control Panel :

• Aural warning horn

• Master ON/OFF switch

• Mask manual ON

• Test

• ON

• Seat belt

• Cabin pressure altimeter control switch

• DC Power Unit

• PSU (Passenger Service Unit)

• COG (Chemical Oxygen Generator)

• Oxygen Cylinder

• Cylinder Pressure Gauge

• Pressure Regulator

• Control Valve

• Filler Valve

• Pilots’ Oxygen Mask

• Crew Portable Oxygen Cylinder

• Passenger’s Portable Mask

• Passenger Drop-down Masks

• Terminals

Construction & Training :

• The system is mounted on a metal/aluminum mobile stand.
• Metal/aluminum frame with 4 wheels. 2 of 4 wheels are lockable.
• Training video for teachers
• Delivered fully assembled, tested, and ready to operate
• Colored ultraviolet printing method on aluminum composite panel

Documentation :

• User’s Manual
• Study Guide
• Instructor’s Guide
• Components Diagrams

Power Specs :

• Electrical box
• Residual current device
• Emergency button
• Energy signal lamp
• 110 VAC 60 Hz or 220-240 VAC 50 Hz

Required Items :

• Air Compressor, max. 90 PSI pressure outlet

Optional Items :

• Computer Based Training Software
• Manual Release Tool

• Understanding fundamentals of aircraft oxygen systems and their components.
• Passenger oxygen system
• Pilot oxygen system
• Crew oxygen system
• Passenger Service Unit system
• Seat belt light simulation
• Master caution functions
• Cabin altitude functions
• Oxygen filling process
• Oxygen cylinder removal process
• Chemical oxygen generator
• Filler point
• Wirings on the trainer are connected via terminals.
• Wires have clear identification labels for each wire.
• All wires are coded and labeled for troubleshooting.
