Aircraft Oxygen System Trainer C

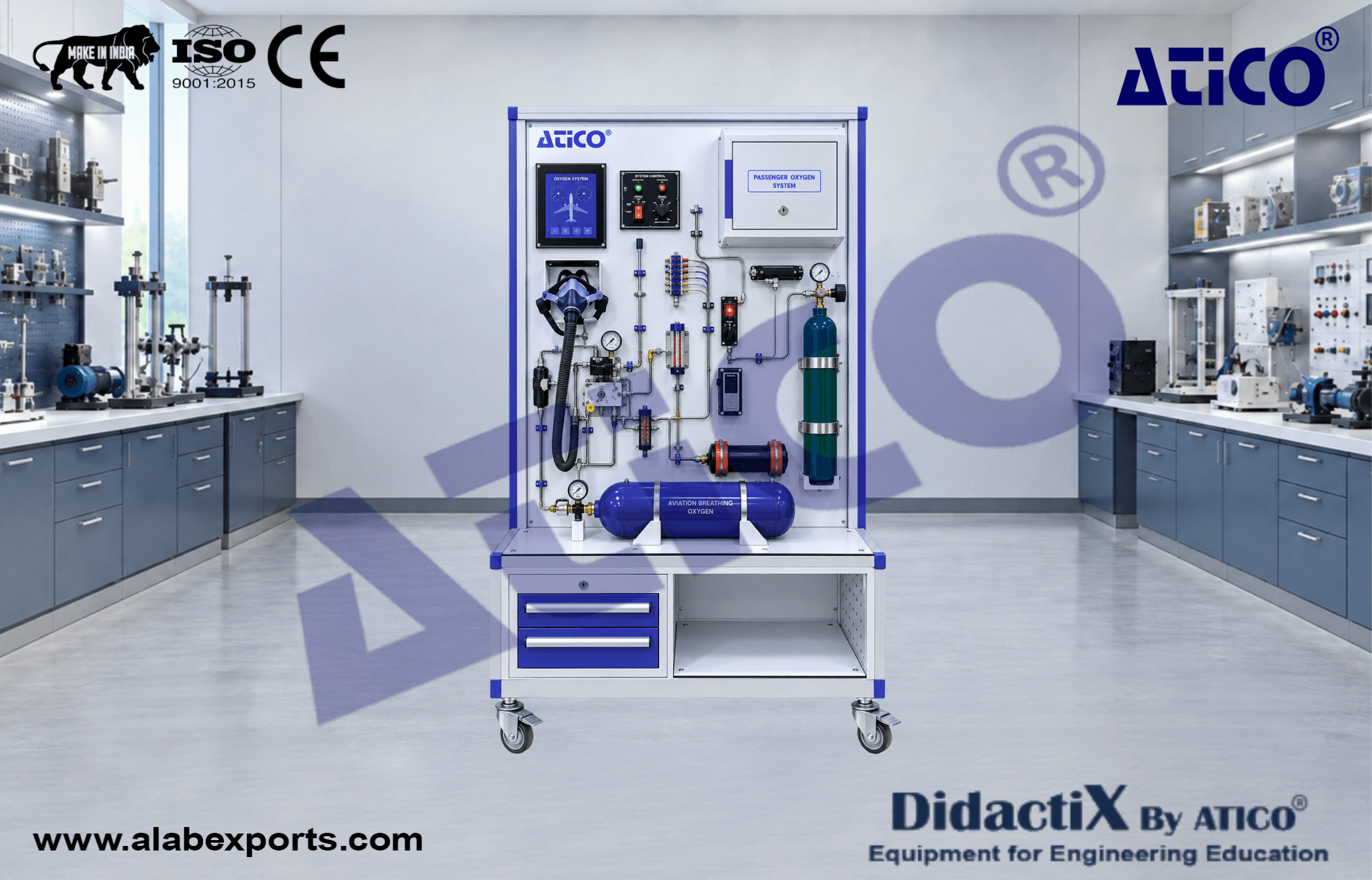

This training set is a fully functional typical aircraft oxygen system.

The external filler valve includes an orifice which restrains the filling rate, and it is protected by a cap so that contamination is prevented when the charging line is not connected.

The pressure regulator in the system adjusts the pressure in the cylinder to an amount that is usable by the masks.

NOTE: Pilot mask type may be changed according to stock availability.

This trainer allows practical tasks of EASE PART 147 ATA-35-00-00 to be performed.

Manufactured by Atico Export with quality-focused production and attention to engineering specifications for teaching and training purposes.

Components :

Control Panel :

• Crew Control illuminated pushbutton
• Mask MANUAL/AUTO control guarded switch
• Passenger status indicator
• High alt landing guarded illuminated pushbutton
• Timer reset illuminated push button
• Aural warning horn
• Master caution resettable illuminated push button

Master Power and Circuit Breaker Panel :

• Guarded Master Power Switch
• Crew Oxygen Supply Circuit Breaker
• Passenger System Circuit Breaker

7” Touchscreen (ECAM) :

• Oxygen pressure indicator

• Oxygen status indicator

• DC Power Unit

• PSU (Passenger Service Unit)

• COG (Chemical Oxygen Generator)

• Oxygen Cylinder

• Cylinder Pressure Gauge

• System Pressure Sensor

• Pressure Regulator

• Control Valve

• Filler Valve

• Filler Coupling

• Crew Portable Oxygen Cylinder

• Passenger’s Portable Mask

• Passenger Drop-down Masks

• Seat Belt Light

• LAN Output

• Fault & Instructor Port

• Terminals

• Storage Drawer

Construction & Training :

• The system is mounted on a metal/aluminum mobile stand.
• Metal/aluminum frame with 4 wheels. 2 of 4 wheels are lockable.
• Training video for teachers
• Delivered fully assembled, tested, and ready to operate
• Colored ultraviolet printing method on aluminum composite panel

Documentation :

• User’s Manual
• Study Guide
• Instructor’s Guide
• Components Diagrams

Power Specs :

• Electrical box
• LAN Connection Point
• Residual current device
• Emergency button
• Energy signal lamp
• 110 VAC 60 Hz or 220-240 VAC 50 Hz

Required Items :

• Air Compressor, max. 90 PSI pressure outlet

Optional Items :

• Pre-loaded Fault Panel Software with Laptop
• Computer Based Training Software
• Manual Release Tool

• Understanding fundamentals of aircraft oxygen systems and their components.
• Passenger oxygen system operation
• Pilot oxygen system operation
• Crew oxygen system operation
• Passenger Service Unit can be deployed automatically or manually
• ECAM
• Seat belt light
• PSU reset
• Single chime
• Master caution
• Cabin altitude selection
• Master caution functions
• Passenger mask automatic running test functions
• Oxygen filling
• Oxygen cylinder removal
• Passenger mask reset
• Chemical oxygen generator
• System control computer
• Filler point
• Wirings on the trainer are connected via terminals.
• Wires have clear identification labels for each wire.
• All wires are coded and labeled for troubleshooting.
