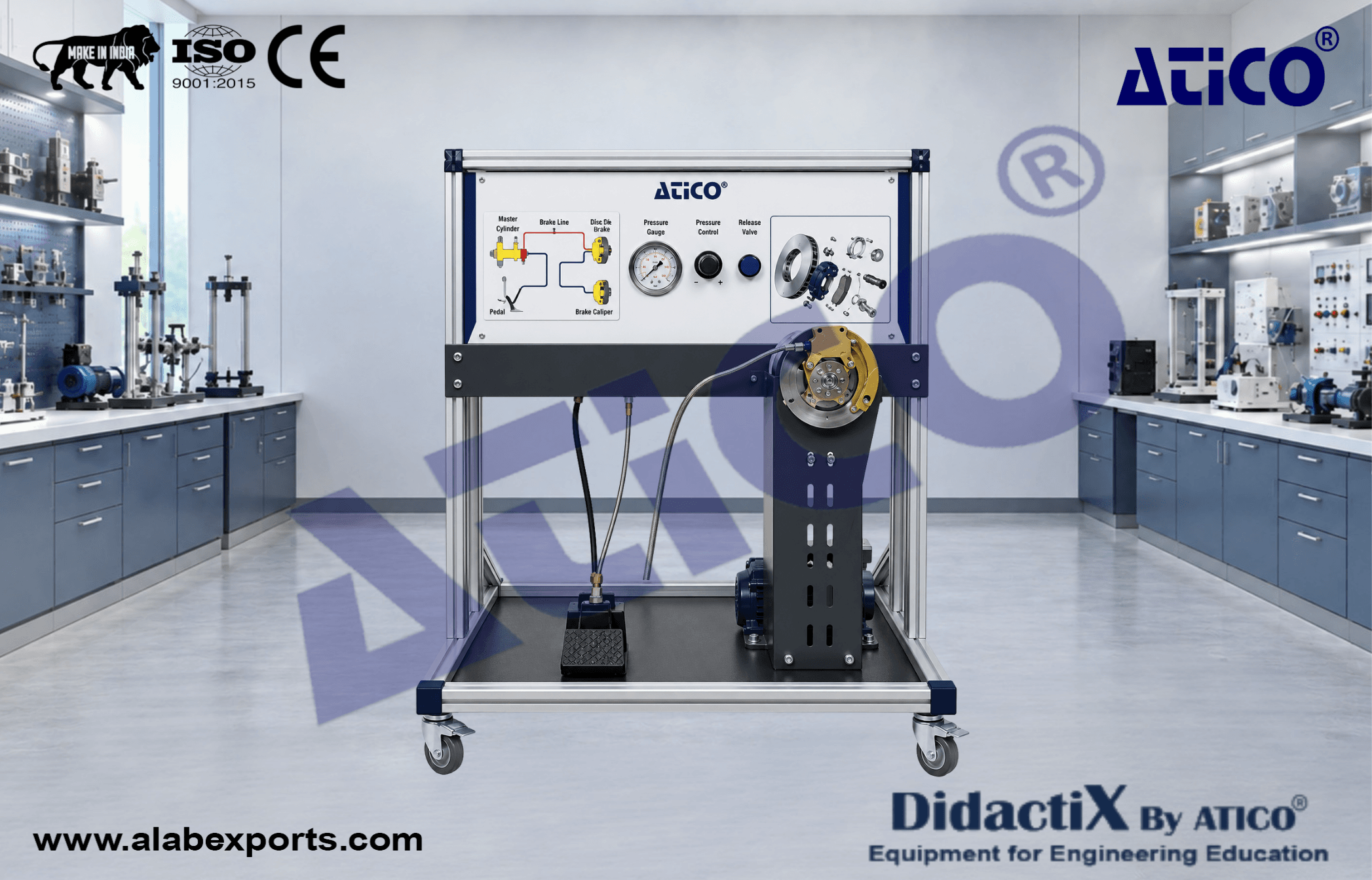

Aircraft Single Brake System with Electric Motor

The Aircraft Brake System Trainer is designed to train students on a functional single-disc brake system with an electric motor used to rotate the wheel. The trainer can be used to demonstrate brake bleeding procedures and maintenance procedures for the system.

The system includes a master cylinder, reservoir, parking brake valve, and brake pedal. It features a functional single-disc brake system and is mounted on a movable frame with wheels for convenient positioning.

The electric motor can rotate the wheel to simulate a real operating environment. When the brake is applied, the wheel stops, allowing students to understand the braking and deceleration process by applying the brakes.

Manufactured by Atico Export with quality-focused production and attention to engineering specifications for teaching and training purposes.

Documentation :

• User’s Manual.
• Study Guide.
• Instructor’s Guide.
• Flow Diagrams.
• Components Diagrams.

Power Specs :

• Electrical Box.
• Residual Current Device.
• Emergency Button.
• Energy Signal Lamp.

• Complete and functional single-disc brake system.
• Aircraft Wheel Assembly (6 or 8 inch).
• Aircraft Wheel.
• Aircraft Brake Disc.
• Aircraft Brake Plate.
• Aircraft Brake Caliper.
• Hydraulic Brake Components.
• Aircraft Brake Master Cylinder.
• Parking Brake.
• Brake Fluid Reservoir.
• Aircraft Brake Pedal.
• Brake Hose.
• Electric motor for rotating the wheel.
• The system is mounted on a metal/aluminum mobile stand.
• Metal/aluminum frame with 4 wheels; 2 of 4 wheels are lockable.
• Training video for teachers.
• Delivered fully assembled, tested, and ready to operate.
• Colored ultraviolet printing method on aluminum composite panel.
