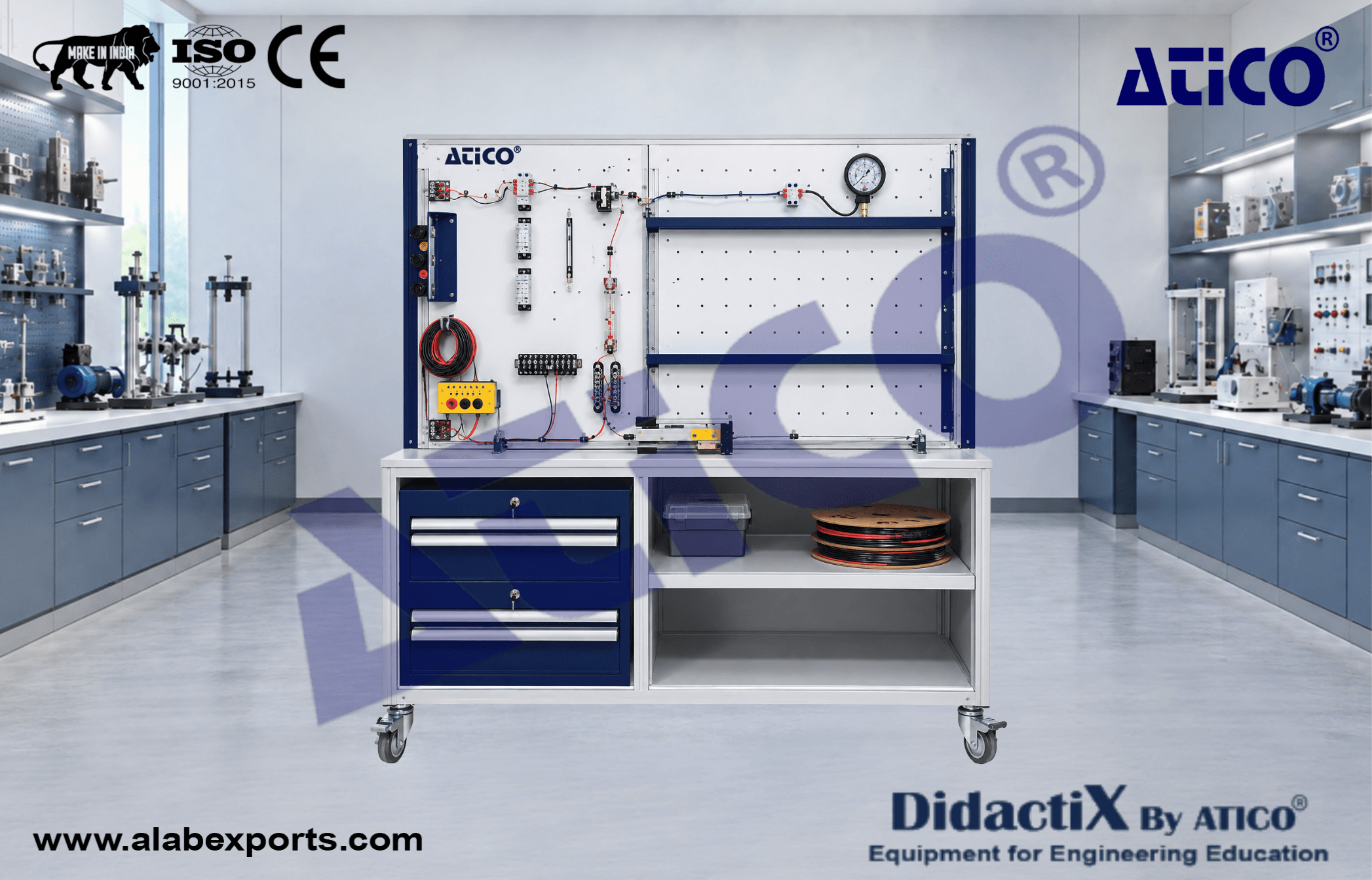

Aircraft Wire & Cable Application Trainer

The Aircraft Wire & Cable Application Training Stand is designed as a practical training system for wiring and cabling between devices. Trainees can practice various cabling and wiring applications on the set and learn different wiring and cable installation techniques.

Manufactured by Atico Export with quality-focused production and attention to engineering specifications for teaching and training purposes.

Components :

• 12V DC Power Supply
• DC Lamp
• Test Panel
• Aircraft Plug/Sockets
• Pin Insertion/Extraction Tool Kits and Cable Stopper
• Standard Crimp Ring Tool
• Automatic Wire Stripper
• Wire Cutter
• Terminals
• Straps Application
• Two (2) Different Heat Shrinks
• Three (3) Different Insulated Crimp Rings for Applications
• Three (3) Different Insulated Fork Crimps for Applications
• Antenna Cable
• Aircraft Antenna
• Antenna Cable Plug/Socket
• Static Discharger
• White Application Cable
• Avionic Device Tray Mount
• Relays
• Mock-Up Wing Ribs (2 Pieces)

Documentation :

• General Info Manual

Optional :

• Aircraft Pin Crimping Tool

• Understanding fundamentals of aircraft wire and cable applications and their components.
• Pin insertion/extraction application
• Heat shrink tube application
• Ring and fork crimp applications
• Socket application
• Terminal application
• Electric bar application
• Strap (tie) application
• Antenna cable application
• Aircraft relay cable application
• Line test application
• Butt splice application
• Wire cap application
• Wire clamp application
• Wire nylon clamp application
• Wire gauge application
• Cables displayed on ribs
• Drawers for tools
• The system is mounted on a metal/aluminum mobile stand.
• Metal/aluminum frame with 4 wheels. 2 of 4 wheels are lockable.
• Delivered fully assembled, tested, and ready to operate
• Colored ultraviolet printing method on aluminum composite panel
