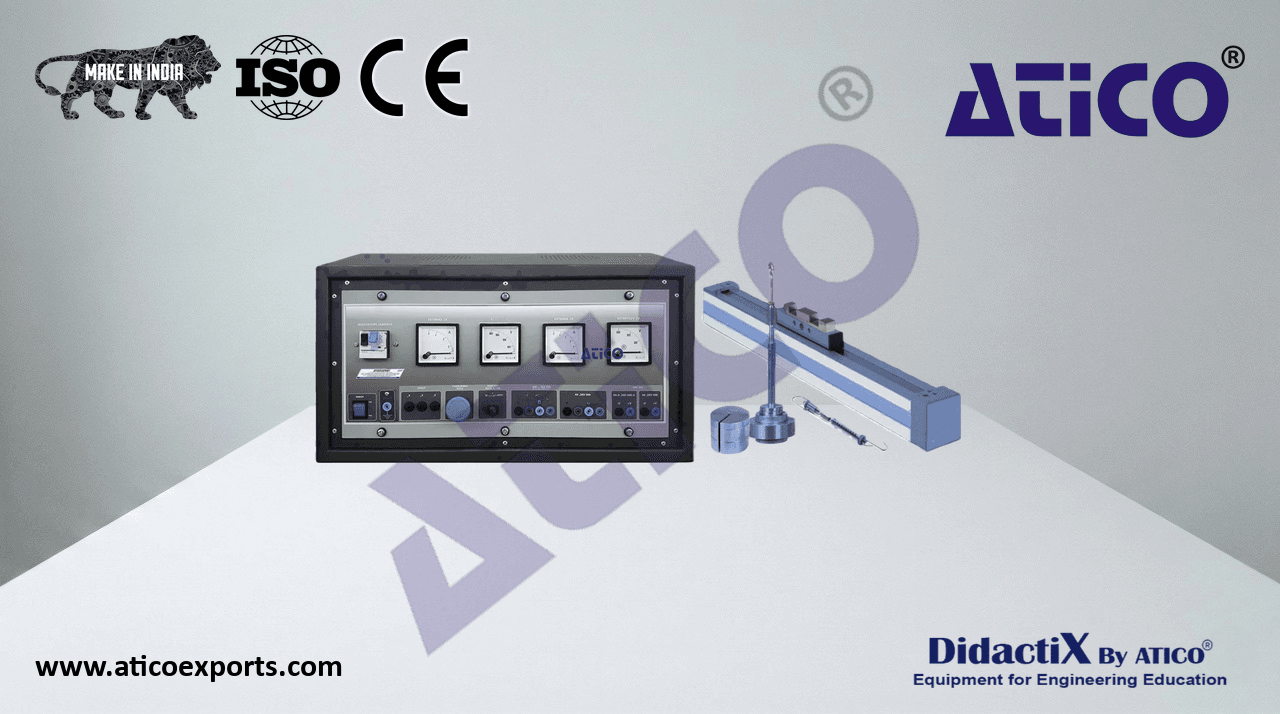

The Application of AC Linear Motor Operations, to study how AC linear induction motors (LIM) work.
Technical Specifications
ATENG 11134 — Application of AC Linear Motor Operations
The application “ATENG 11134” includes the following elements:
N-VPS01. 3PH AC Power Supply Module.
ON / OFF removable key.
Supply voltage: 3 x 400 VAC + N.
Emergency stop push-button.
Three-phase supply hose with IP44 3PN + E 32 A 400 V connecting plug.
Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
Fuses: 3 x 6 A. N-VPS01
Motorized variable autotransformer:
Nominal power: 3000 VA.
Input voltage: 400 VAC.
Fixed output voltage: 3 x 400 VAC + N.
Variable output voltage:
0 – 450 VAC (3 PH + N).
0 – 240 VDC.
Nominal current: 2 A.
Three-position switch with automatic return:
Position I: Voltage reduction.
Position 0: Constant voltage.
Position II: Voltage increase.
DC ammeter: 0 – 5 A.
AC ammeter: 0 – 5 A.
DC voltmeter: 0 – 300 V.
AC voltmeter: 0 – 500 V.
Autotransformer.
Nominal power: 3000 VA.
EMT23. AC Linear Induction Motor.
Stationary rail:
Length: 1.5 m.
Air gap: adjustable 1 – 5 mm.
Moveable motor:
Maximum voltage: 230 VAC. EMT23
Maximum current: 1.5 A.
DM. Dynamometer.
Force: 50 N.
Wheel to modify the tension.
Pulley.
Outer diameter: 136 mm.
DM
Inner diameter: 125 mm.
SET B. Brass Hook and Mass Set 2 kg.
Each “B Type” set includes:
Six weights of 200 g. (0.44 pounds)
Six weights of 100 g. (0.22 pounds)
Two weights of 50 g. (0.11 pounds)
Two weights of 20 g. (0.044 pounds)
Two weights of 10 g. (0.022 pounds)
One support hook of 100 g. (0.22 pounds)
All necessary cables to realize the practical exercises are included. SET B
Cables and accessories, for normal operation.
