Automated Centrifugal Pump Study Bench with Flow Rate Control

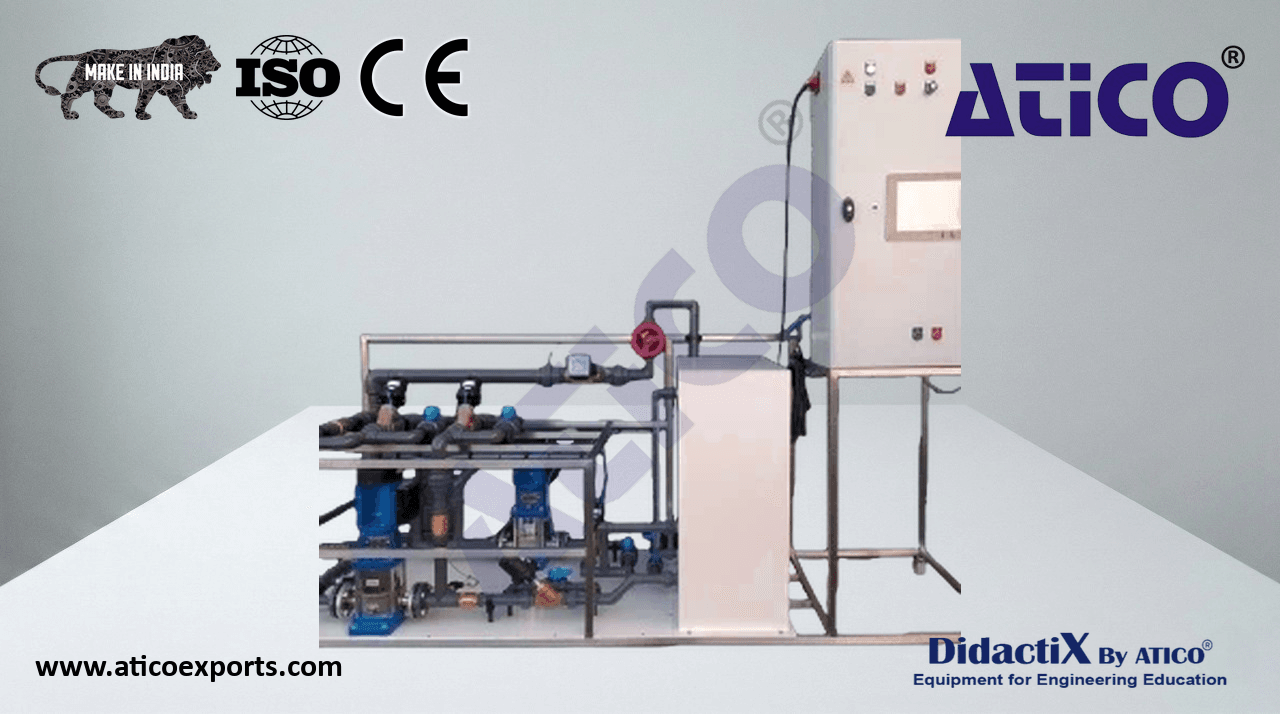

This bench, designed for closed-loop operation and mounted on a structure, is a complete experimental facility for studying the performance and characteristics of industrial centrifugal water pumps and for managing an automated installation with a control loop. Learning Objectives: Study of pumps in series or parallel coupling. Plotting a network curve and determining an operating point. Learn about Automated Centrifugal Pump Study Bench with Flow Rate Control price for optimal educational outcomes.. Control: Study of a simple closed-loop. Tuning of PID controller parameters. Learn about Automated Centrifugal Pump Study Bench with Flow Rate Control manufacturers for optimal educational outcomes.. Identification of control loop components. Automation: Use of a pre-programmed industrial programmable logic controller (PLC). Learn about Automated Centrifugal Pump Study Bench with Flow Rate Control exporters for optimal educational outcomes.. Identification of the elements of an automated system (control unit, operative unit, sensors, actuators).

Two identical pumps mounted under positive head, managed by electronic variable speed drives displaying torque, frequency, current, voltage, and absorbed power. Multicellular pumps (flow rate 1.

Two identical pumps mounted under positive head, managed by electronic variable speed drives displaying torque, frequency, current, voltage, and absorbed power. Multicellular pumps. Flow rate (1.2–4.4 m³/h) – maximum pressure 8 bar (series configuration).
Feed tank, 200-litre capacity.
A set of pneumatic solenoid valves allows series or parallel pump configuration; these are duplicated by manual valves.
A paddle flow meter with analogue output measures the pump outlet flow rate and sends the signal to the PLC controller, which adjusts pump speeds via two controllers.
Four pressure sensors (ranges: −1/0.6; −1/5; 0/4; and 0/10 bar).
A PLC to optimise one of the parameters recorded by the variable speed drive while maintaining constant flow.
An automatic cycle can be launched to review the different pump coupling modes for a requested flow setpoint, compare absorbed power for each operating mode, and return to the minimum absorbed power configuration.
A 9.7″ touchscreen displaying: machine synoptic with real-time values; real-time parameter curves; USB port on the cabinet front panel for CSV data export.
