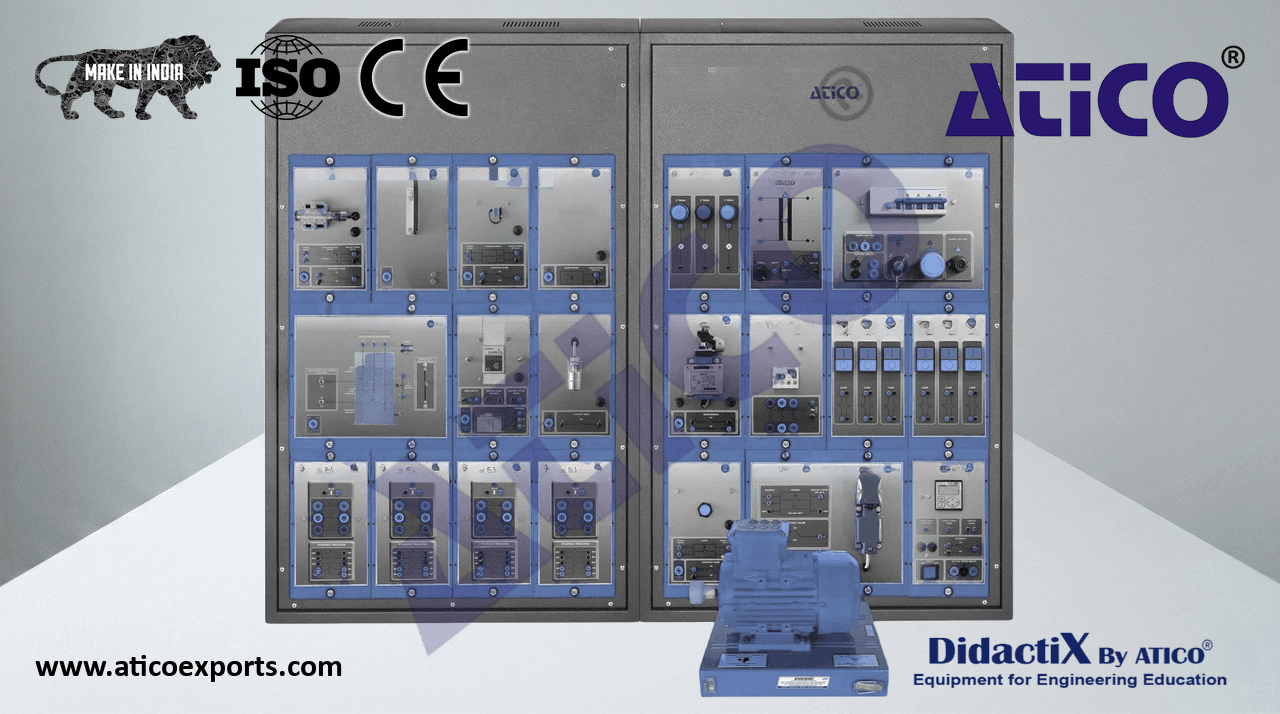

Automatic Control Operations with Contactors and Sensors IV Application

The Automatic Control Operations with Contactors and Sensors IV Application, for the study of automatic control operations with contactors and sensors connected to a load (induction motors, conveyor belts, lighting, etc).

ATENG 11048 — Automatic Control Operations with Contactors and Sensors IV Application

• The “ATENG 11048” application includes the following elements:
• N-ALI01. Industrial Main Power Supply Module.
• Supply voltage: 400 VAC, 3PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Three-phase + Neutral: 400 VAC.
• Single-phase: 230 VAC.
• Three-phase supply hose with IP44 3PN + E 32 A 400 V connecting plug. N-ALI01
• Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-ALI03. AC Auxiliary Power Supply (24 Vac) Module.
• Voltage supply (single-phase): 230 VAC, 1PH + N.
• Output voltage:
• Single–phase 24 VAC / 12 VAC.
• 24 VDC.
• 0 – 24 VDC through potentiometer.
  N-ALI03
• N-PUL48. Three Double Chamber Push-Buttons Module.
  Two independent chambers.
• Nominal voltage: 24 VAC.
  Three double chamber push-buttons (green and red).
• Contacts:
  Three normally open contacts (NO) for green switch.
  Three normally close contacts (NC) for red switch.
  N-PUL48
• N-LAM02. Auxiliary Lamps Module.
• Nominal voltage: 24 VAC.
  Three lamps (red, yellow and green).
• N-CON01. Three-Pole Contactor Module (24 Vac) (4 units).
• Nominal voltage for power contacts: 400 VAC.
• Nominal voltage for control contacts: 24 VAC.
  N-LAM02
• Nominal voltage for the control coil: 24 VAC.
• Contacts:
  Three-phase normally open contact (NO) for power circuit.
  Three normally open contacts (NO) for control circuit.
  Two normally close contacts (NC) for control circuit.
• N-REL47. Thermal Relay Module.
• Nominal voltage for power contacts: 400 VAC.
• Nominal voltage for the control coil: 24 VAC. N-CON01
• Contacts:
  Three-phase normally open vontact (NO) for power circuit.
• N-SFC. Limit Switch Module.
• Nominal voltage: 24 VAC.
• Nominal current: 3 A.
• Contacts:
  One normally open contact (NO).
  One normally close contact (NC).
  N-REL47
• Fuses: 2 x 3 A.
  Ground terminal.
• N-MED47. Pulse Counter Module.
• Supply voltage (single-phase): 230 VAC.
  Power switch.
  Digital display.
• Terminals (24 VDC):
• Output: N-SFC
  Two output terminals.
• Input:
  One input terminal.
  One counter digital input.
• Contacts (24 VAC):
  One normally open contact (NO).
  One normally close contact (NC).
  Common point of normally close / open contacts.
• Fuses: 2 x 1 A. N-MED47
  3

Specifications

• N-SEN05. Cylindrical Inductive Proximity Sensor Module.
• DC Circuit: 24 VDC.
  Detection surface.
  Light detection.
• Inductive sensor:
• Supply voltage: 0 – 58 VDC.
  Two digital outputs.
  N-SEN05
• Relay contact (24 VAC):
  One normally open contact (NO).
  One normally close contact (NC).
  Common point of normally close / open contacts.
• Fuse: 250 mA.
  Ground terminal.
• N-SEN13. DC Cylindrical Capacitive Proximity Sensor Module.
• DC Circuit: 24 VDC.
• Capacitive sensor:
• Supply voltage: 10 – 55 VDC.
  Two digital outputs.
• Relay contact (24 VAC):
  One normally open contact (NO).
  N-SEN13
  One normally close contact (NC).
  Common point of normally close / open contacts.
• Fuse: 500 mA.
  Ground terminal.
• N-SEN21. Barrier Photoelectric Sensor (Emitter) Module.
• Nominal voltage: 12 – 24 VDC.
  Emitter sensor.
• Fuse: 250 mA.
  Ground terminal.
  N-SEN21
• N-SEN22. Barrier Photoelectric Sensor (Receptor) Module.
• Nominal voltage: 12 – 24 VDC.
  Receptor sensor.
  Digital output signal
• Relay contact (24 VAC):
  One normally open contact (NO).
  One normally close contact (NC).
  Common point of normally close/open contacts.
  N-SEN22
• Fuse: 2 A.
  Ground terminal.
• N-SEN23. Reflecting Photoelectric Sensor (Emitter) Module.
• Emitter:
• Nominal voltage: 24 VDC
  Digital output signal
• Relay contact (24 VAC):
  N-SEN23
  One normally open contact (NO).
  One normally close contact (NC).
  Common point of normally close/open contacts.
• Fuse: 250 mA.
  Ground terminal.
• N-SEN24. Reflecting Photoelectric Sensor (Receptor) Module.
  Receptor sensor.
  Ground terminal.
  N-SEN24
• N-SEN25. Level Magnetic Sensor Module.
• Nominal voltage: 24 VAC.
  Magnetic level sensor.
• Contact:
  Normally open contact (NO).
• Fuse: 500 mA.
  Ground terminal.
  N-SEN25
  4

Specifications

• N-DPP. Water Tank Module.
  Three sounders connections.
• Two switches ON / OFF:
  Maximum water level simulator switch.
  Minimum water level simulator switch.
  Lineal potentiometer 0 – 50 kOhms.
  Three water resistor measurement terminals.
  Ground terminal. N-DPP
• N-CNV. Level Controller Module.
• Level controller:
• Nominal voltage: 24 VDC.
  Signal calibration potentiometer.
  Three sounders connections.
• Lamp 24 VDC.
• Contacts:
  One normally open contact (NO).
  N-CNV
• Fuse: 5 A.
  Ground terminal.
• . 3PH Squirrel-Cage Motor.
• Nominal power: 370 W.
• Nominal voltage: 3 x 230 / 400 VAC Δ/Y.
• Frequency: 50 / 60 Hz.
• Number of poles: 2.
• Speed: 2730 rpm.
• Nominal current: 1.67 / 0.97 A.
  EMT7
• Shaft height: 71 mm.
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
