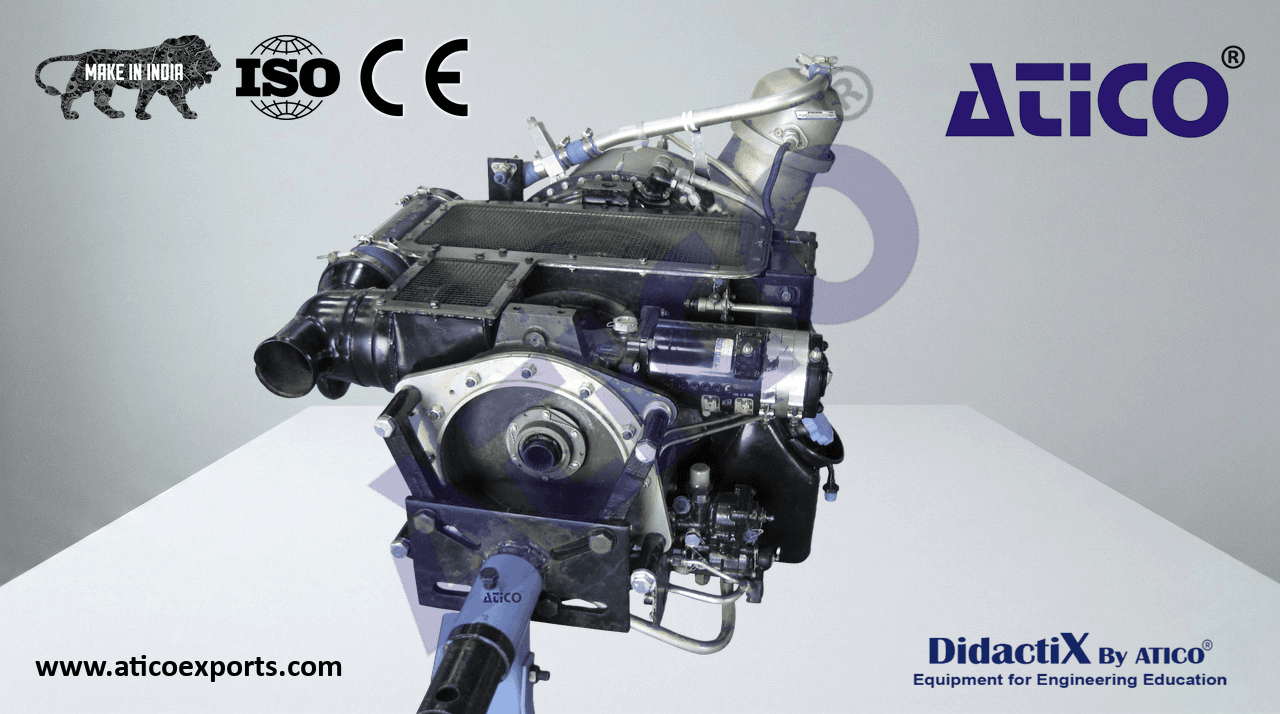

+91 98967 93832This auxiliary power trainer combines a real APU from a large aircraft with computer-based training (CBT), providing both hands-on training and reinforcement of classroom knowledge.
| Specification | Details |
|---|---|
| Power Output | 160 bhp |
| RPM | 40,800 |
| Compressor | Two-stage centrifugal impellers; pressure ratio 3.3:1; air mass flow 2.0 lb/sec at 40,800 rpm |
| Combustion Chamber | Reverse flow can type with single burner |
| Turbine | Radial inflow impeller; exhaust temperature 1310°F (710°C) |
| Starting | Electric starter |
| Ignition | High energy; 1 igniter |
| Fuel System | Integral pump (230 psi), governor, internal relief valve, flow control; fuel consumption 1.7 lb/shp-hr |
| Lubrication | Dry sump system; 90 psi air-cooled oil cooler; oil consumption 0.02 phr |
| Layout | Single spool with reduction gearbox; output speed 6,000 rpm |
| Weight | 200 lbs |
| Power/Weight | 0.71 shp/lb |
| Dimensions | 31L x 30D x 25H inches |
| Rating | 160 shp / 40,800 rpm / sea level max continuous |
