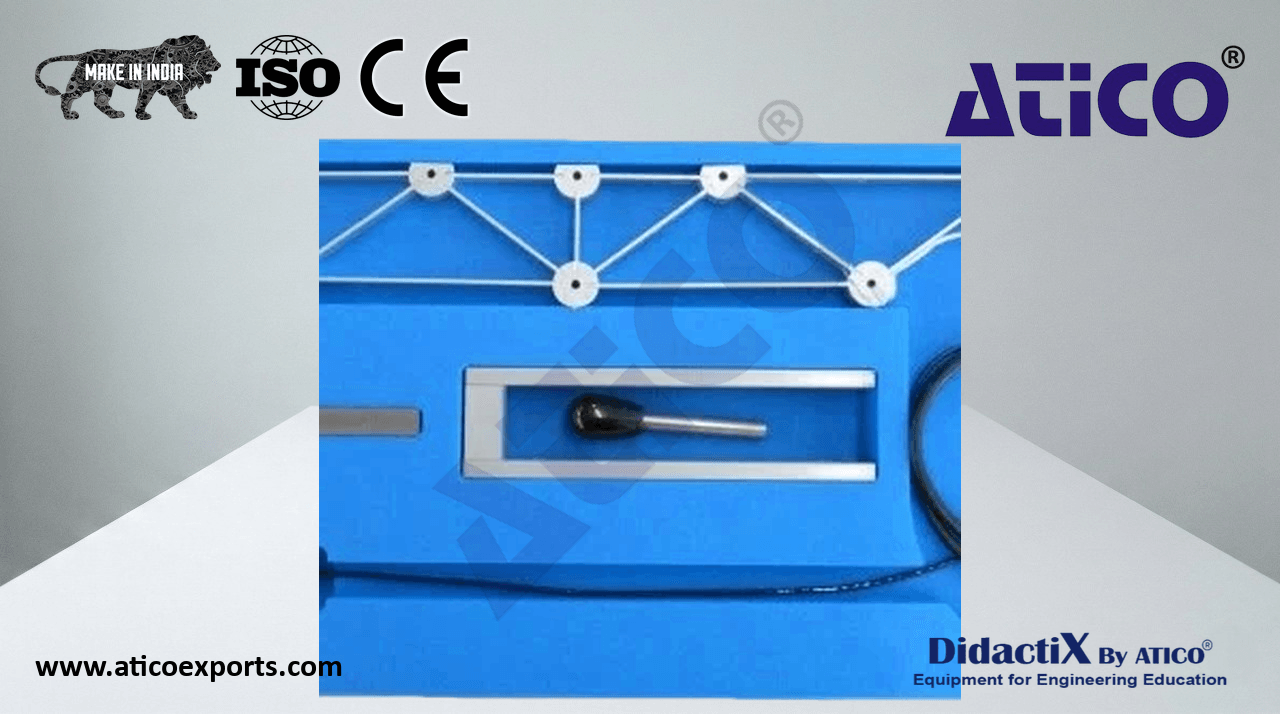

Bar Structure Study Apparatus

This apparatus enables the study of a triangulated truss-type structure subjected to a 3-point bending load. Pedagogical Objectives: Study and measurement of structural deformation. Study of deformation and forces in instrumented bars. Learn about Bar Structure Study Apparatus for educational labs for optimal educational outcomes..

Technical Description: Stress measurements at various points of the specimen are made using pairs of strain gauges bonded by an industrial process ensuring very high measurement accuracy and excellent long-term stability. The beam is in treated steel.
