Basic Heating Control Application

The Basic Heating Control Application," ", to study how a heating control application works. This application allows the students understand the control logic of a thermostat.

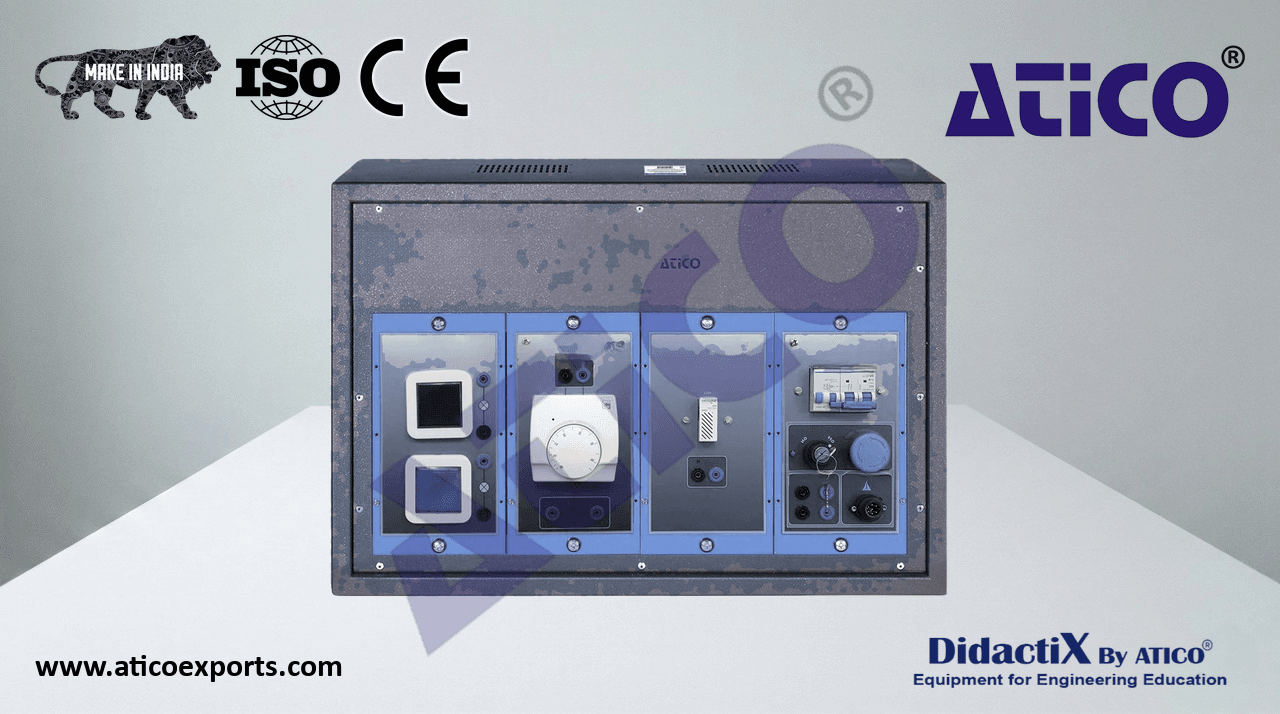

ATENG 11042 — Basic Heating Control Application

• The application “ATENG 11042” includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC. N-ALI02
  Single-phase supply hose connecting plug.
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push button.
• N-TIM01. Bell 70 dB Module.
• Nominal voltage: 230 VAC.
• Frequency: 50 Hz.
• Sound pressure level: 70 dB.
  N-TIM01
• N-SEL09. Double Luminous Signalling red/green 230 VAC Module.
• Nominal voltage: 230 VAC.
  Red and green luminous warning.
• Power of luminous warning: 5 W.
• Terminals: N-SEL09
  Two single-phase terminals (PH + N) to connect the electrical warning.
• N-MED76. Thermostat for Heating Module.
• Supply voltage: 230 VAC (PH + N).
• Nominal current: 10 A.
• Wheel to change the temperature:
  N-MED76
• Regulation: 5 °C – 30 °C.
• Accuracy: 0.25 °C.
• Contacts:
  One normally close contact (NC).
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
