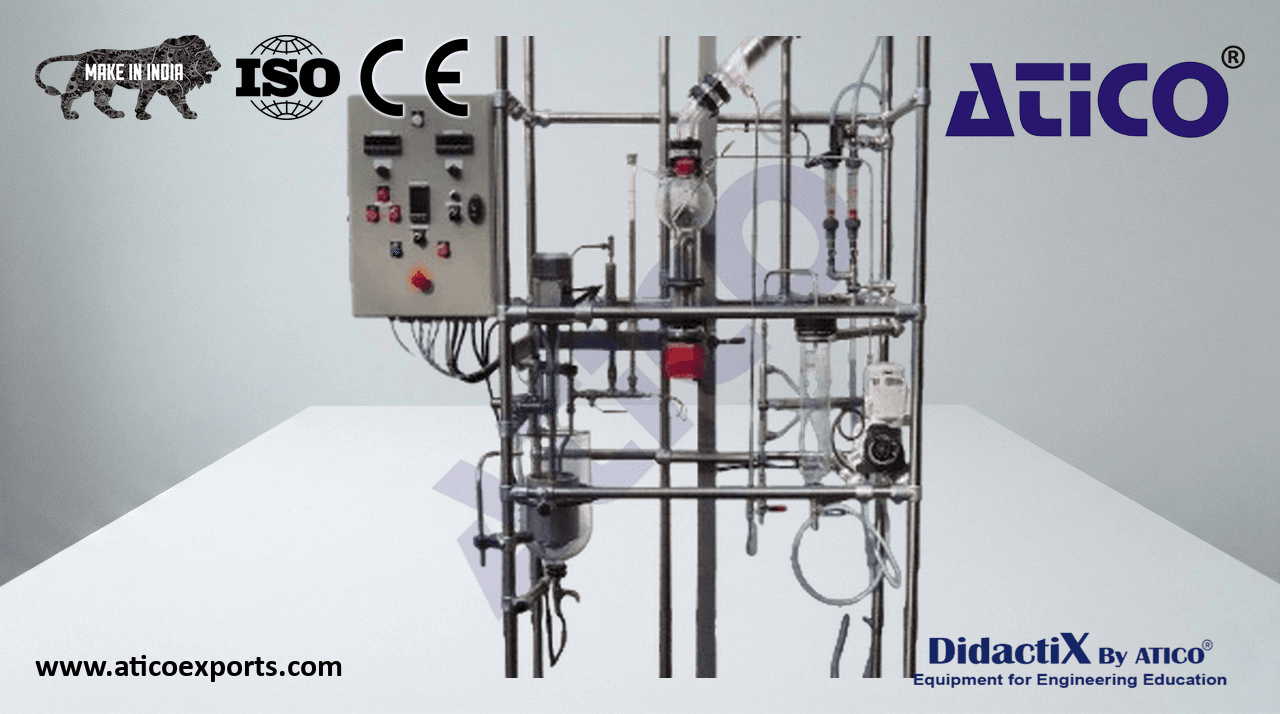

Batch Evaporation–Crystallisation Unit

Crystallisation enables the separation, from a solution, of one or more solid compounds dissolved in that solution. During separation, the dissolved compounds transition to the solid state when the required operating conditions (temperature, concentration) are met. The crystals formed are then separated from the liquid phase by filtration. Learn about Batch Evaporation–Crystallisation Unit for educational labs for optimal educational outcomes..

Graduated borosilicate glass storage receiver with siphon filling system. Cylindrical Grignard-type reactor: 316L stainless steel vessel with insulated thermal fluid double-jacket and flush-mounted drain valve; 316L stainless steel lid.

Graduated borosilicate glass storage receiver for the solution to be crystallised, with siphon system for filling the reactors.
Cylindrical Grignard-type reactor: 316L stainless steel vessel with insulated thermal fluid double-jacket heating and flush-mounted drain valve; 316L stainless steel lid.
Variable-speed 316L stainless steel agitation assembly with three-blade pitched turbine.
Stainless steel reaction mass cooling coil.
316L stainless steel column, DN50, in one 500 mm section.
Borosilicate glass column head, DN50, with temperature port.
Vertical condenser with borosilicate glass shell and 316L stainless steel coil heat exchanger.
316L stainless steel distillate cooler.
Graduated borosilicate glass distillate receivers.
Thermal fluid generator, 6 kW power, with circulation pump and temperature control.
Insulated thermal fluid heating flexible hoses.
Interconnecting pipework.
Reduced-pressure piping for sub-assemblies on the common manifold.
Borosilicate glass vacuum trap.
Support frame in 304L stainless steel tubing with aluminium fittings.
Condenser cooling water supply with rotameter, flow control valve, and water circulation monitor to stop heating on coolant failure.
Crystallisation reactor cooling water supply with rotameter and flow control valve.
Distillate cooler cooling water supply with rotameter and flow control valve.
Reflux flow measurement via rotameter.
Reactor and pilot pressure measurement via pressure gauges.
IP55 control and instrumentation cabinet with emergency stop, start/stop buttons, crystallisation reactor digital temperature indicator (Pt100 Ω), agitation speed variator, digital agitation speed indicator, and two digital temperature indicators for 6 Pt100 Ω probes.
