Braking Roller Deluxe

A braking roller is an industrial product inserted into a dynamic storage chain to brake pallets before final blocking and pickup by a handling machine. Students analyze constructive solutions from the braking roller in individual parts and 3D CAD files. Educational Objectives: Analyze constructive solutions from a volumetric representation and a real product, identify mechanical joints and verify speed regulation, study the product–process–material relationship, verify the elastic resistance of a complex-shaped part (non-beam). Learn about Braking Roller specifications for optimal educational outcomes..

Students verify speed regulation with the braking roller mounted on its support and the set of masses. Activities in mechanics and materials resistance are also proposed using software.

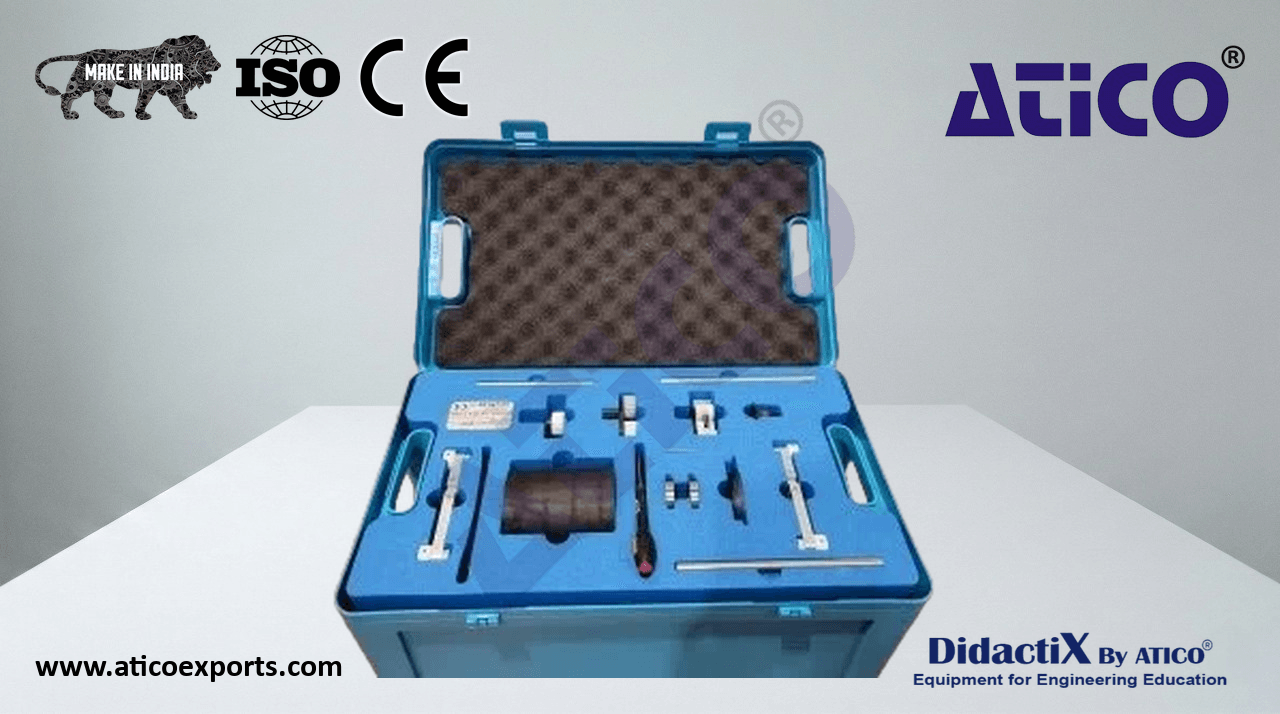

Complete braking roller and braking roller in individual parts
Situational support and mass support
CD-ROM with educational and technical resources (3D)
