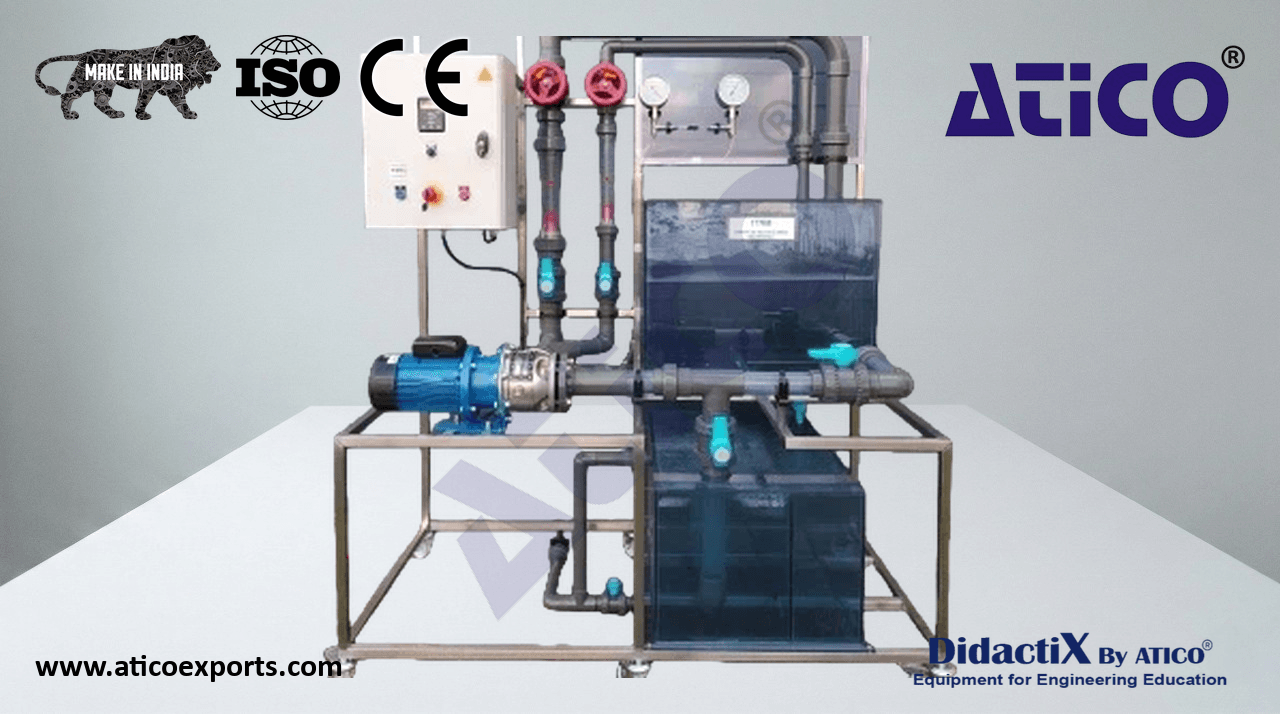

Centrifugal Pump Study Bench

This bench enables the study of an industrial centrifugal pump. Designed for closed-circuit operation, it is a complete experimental facility for studying the performance and characteristics of centrifugal pumps. Learning Objectives: Study of a centrifugal pump adapted to water treatment. Learn about Centrifugal Pump Study Bench specifications for optimal educational outcomes.. Determination of performance and characteristics. Measurement of total head as a function of flow rate. Learn about Centrifugal Pump Study Bench equipment for optimal educational outcomes.. Measurement of absorbed electrical power as a function of flow rate and pump speed. Determination of hydraulic efficiency. Learn about Centrifugal Pump Study Bench price for optimal educational outcomes.. Plotting of characteristic curves. Cavitation study. Learn about Centrifugal Pump Study Bench manufacturers for optimal educational outcomes..

With its feed tanks the bench is self-contained and requires only an electrical supply. The pump speed is adjusted by an electronic variable speed drive displaying speed and power consumed.

2 feed tanks of 100 litres each, with drain valve, 2 draw-off points, and a stabilising partition (for positive-head and suction configurations).
1 industrial single-stage stainless-steel-304 centrifugal pump with three-phase cage induction motor and external ventilation; IP55 protection. Managed by electronic variable speed drive. Power 1.1 kW, 2900 rpm, max. head 20 m, max. flow rate 20 m³/h. The pump casing has a polycarbonate window for cavitation visualisation. 2 rotameters (300–3000 L/h and 2500–25000 L/h). 1 manovacuometer. 1 pressure gauge. 1 thermometer. Transparent suction pipework. 1 spare impeller. Painted steel electrical cabinet containing: variable speed drive; pump control and protection; power indicator light; emergency stop; lockable isolator.
2 rotameters (300–3000 L/h and 2500–25000 L/h)
1 manovacuometer
1 pressure gauge
1 thermometer
Transparent suction pipework
1 spare impeller
Electrical cabinet containing: variable speed drive; pump control and protection; power indicator light; emergency stop; lockable isolator.
