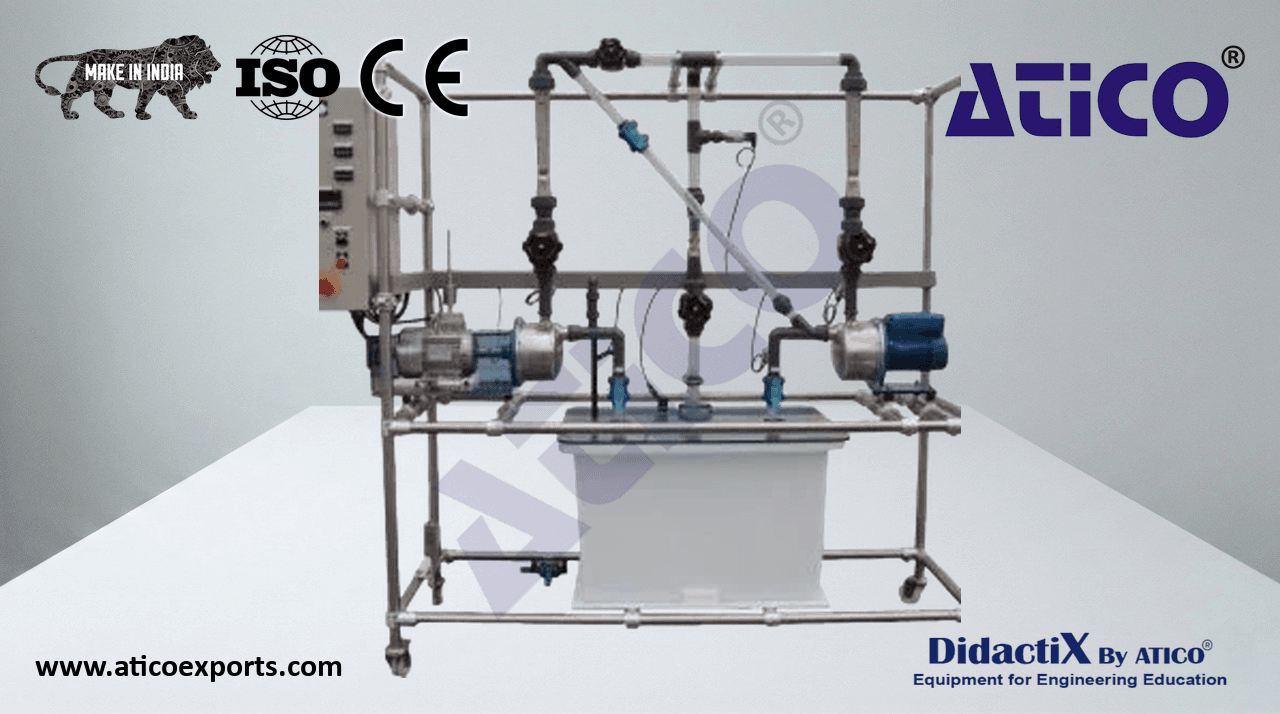

Centrifugal Pumps Study Bench – Series/Parallel

This bench enables the study of the operation and performance of centrifugal pumps, which are the fundamental actuators in process engineering across many fields. Learning Objectives: Study of pumps alone, in series, and in parallel. Determination of characteristic curves (suction and delivery). Learn about Digital Centrifugal Pumps Study Bench – Series/Parallel for optimal educational outcomes.. Study of the flow/pressure relationship. Influence of suction head. Learn about Centrifugal Pumps Study Bench – Series/Parallel exporters for optimal educational outcomes.. Influence of rotational speed on flow rate. Measurement of electrical power absorbed. Learn about Centrifugal Pumps Study Bench – Series/Parallel specifications for optimal educational outcomes.. Measurement of mechanical power absorbed. Calculation of pump efficiency. Learn about Centrifugal Pumps Study Bench – Series/Parallel manufacturers for optimal educational outcomes.. Demonstration of the cavitation phenomenon.

Translucent HDPE launch tank (170 L) with low-level alarm, return water stabiliser, drain valve, and transparent cover. Stainless-body centrifugal pump on anti-vibration mounts, torque-balanced.

One translucent HDPE launch tank, 170-litre useful volume, fitted with low-level alarm, pump return water stabiliser, drain valve, and transparent protection cover.
One stainless-body centrifugal pump mounted on anti-vibration mounts, torque-balanced for mechanical power measurement.
A second identical centrifugal pump for series or parallel configuration, on anti-vibration mounts.
Two transparent PVC suction assemblies with strainers and valves.
Two PVC delivery assemblies with membrane-type control valves.
One bypass assembly for series or parallel operation with membrane valve.
Five pressure measurements.
3 rotameters.
One integrated wattmeter with digital indicator.
One pump speed measurement with proximity detector and digital indicator.
One electronic frequency variable speed drive with control potentiometer.
One IP55 control cabinet with general switch with indicator light, fuses, mushroom-head emergency stop, and start/stop button.
One support frame on castors in 304L stainless steel tubing with aluminium fittings.
