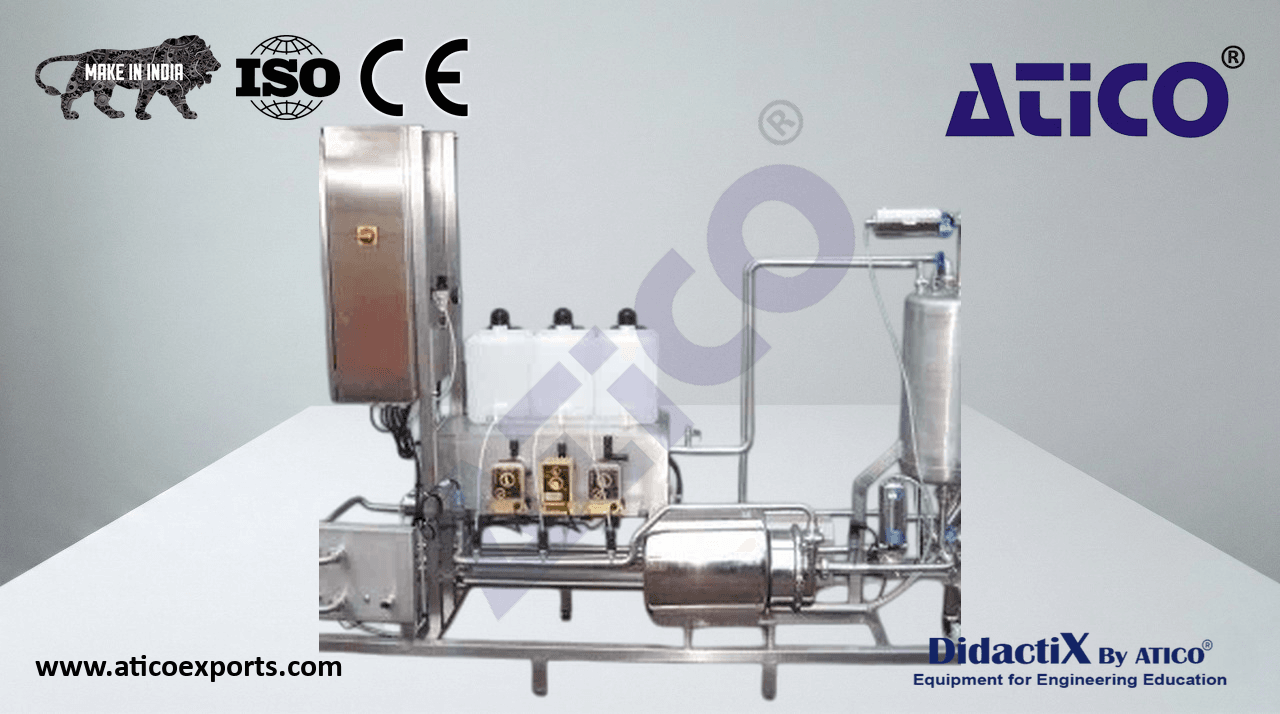

Clean-In-Place (CIP) Station

This station automatically refills a 30-litre diluted detergent preparation tank with network water when a low level is detected, until the high level is reached. In washing mode, a preparation phase adjusts the dose of each detergent in a closed loop on the preparation tank.

Technical Description: When the dose is correct for the determined sequence, automatic valves are actuated to connect the system to be cleaned. A programmable timer determines the circulation time of the washing solution.

1 stainless steel tank
Two stainless steel centrifugal pumps
3 electromagnetic polypropylene dosing pumps for detergent dosing
3 small HDPE tanks for detergent storage
An inline 6 kW heater for heating diluted solutions in closed loop before injection
A Pt100 temperature probe with temperature regulator
An inline pH meter with two thresholds and two relay contacts (on/off regulation)
A set of stainless steel piping and butterfly valves with pneumatic actuators
2 vibrating-blade level detectors for automatic filling of preparation tanks
2 detectors to protect the 2 pumps
A control and command cabinet with PLC, pH transmitter and control buttons
A display screen for commanding the various sequences
A cross-connection panel for manual connection of the station to various equipment (inlet and outlet connections required)
Temperature
Concentration
Washing time
Rinsing time
Tank drain sequence, etc.
Temperature control and regulation of detergents before washing
High level measurement in tank for filling
Low level measurement before centrifugal pumps to prevent dry running
pH measurement for end-of-wash determination
Cycle duration adjustment
