Complete Home Automation Application with ZigBee Wireless Protocol

The Complete Home Automation Application with ZigBee Wireless Protocol, is a cutting-edge home automation application.

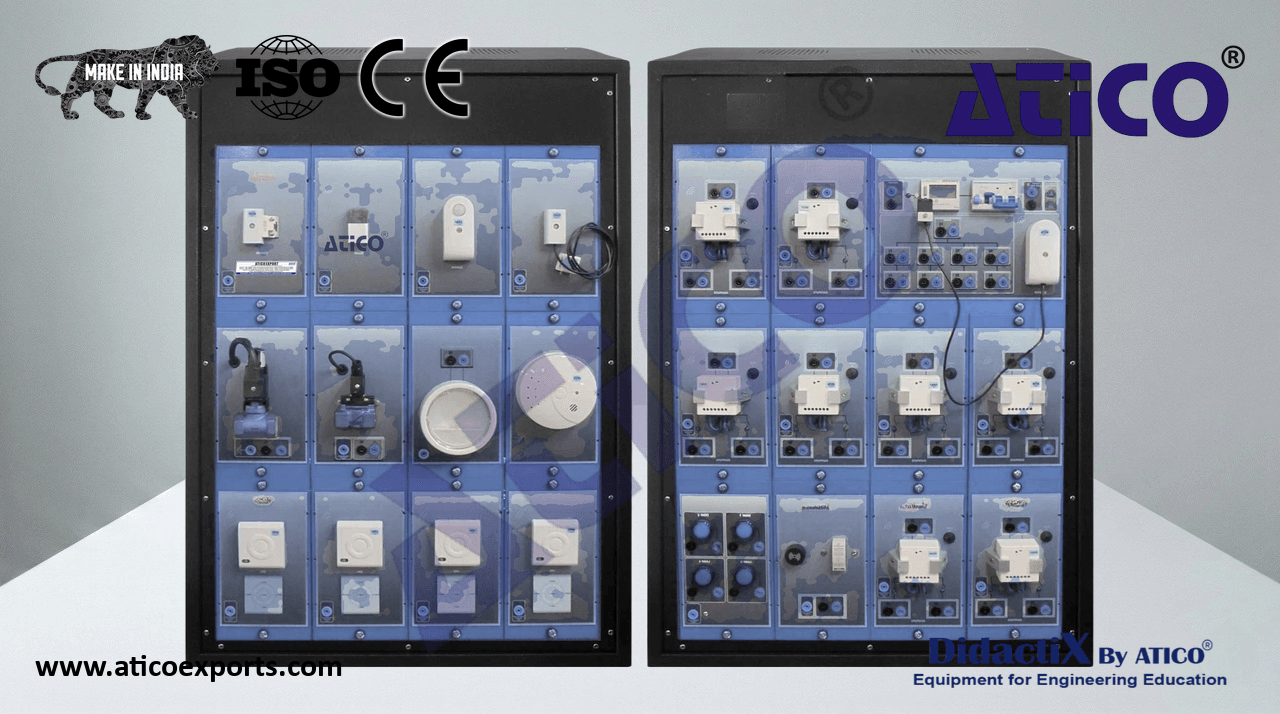

ATENG 11077 — Complete Home Automation Application with ZigBee Wireless Protocol

• The application “ATENG 11077” includes the following elements:
• N-HPM. Home Power Module.
• Voltage supply: 230 VAC.
  Residual current circuit breaker (RCCB).
  Power meter.
  Energized circuit LED.
  N-HPM
• Output voltage port: 230 VAC.
• Input voltage port: 230 VAC (it can be directly connected to the 230 VAC output).
  Eight supply output ports.
  Ground connection.
• Zmeter, wireless power meter capable of switching the circuit ON / OFF:
  ON / OFF switch.
• 3.5 mm jack.
  Two AAA batteries.
• Detection range: 10 m.
• Transmission range: 100 m outdoors and 30 m indoors.
• Channels: 19 (2445 MHz), 20 (2450 MHz), 25 (2475 MHz).
• N-WLSM. Wireless Light Sensor Module.
• ZLUM light sensor:
  CR2032 lithium battery.
  Measurement range, 1 – 65536 lux.
• Transmission range: 100 m outdoors and 30 m indoors.
  N-WLSM
• Sixteen transmission channels: 2.405 – 2.480 GHz.
  Ground connection.
• N-WISM. Wireless Intrusion Sensor Module.
• Sensor ZDOOR:
  Lithium battery CR2032.
  Fixed magnet for mobile part of door/window.
  Sensor for fixed part of Windows/door, it includes pilot light and button.
  N-WISM
• Transmission range: 100 m outdoors and 30 m indoors.
• Sixteen transmission channels: 2.405 – 2.480 GHz.
• N-WMSM. Wireless Motion Sensor Module.
• ZMOVE: wireless movement detector:
  Infrared detection up to 10 m.
• Horizontal range: 110°.
• Vertical range: 93°. N-WMSM
  Two AA batteries.
• Transmission range: 100 m outdoors and 30 m indoors.
  Ground connection.
  3

Specifications

• N-WSM. Wireless Switch Module (4 units).
  Ground connection.
• Wireless switch:
  Five opening/closing command.
  Temperature sensor. N-WSM
  CR2032 lithium batter.
• Transmission range: 100 m outdoors and 30 m indoors.
• Sixteen transmission channels: 2.405 – 2.480 GHz.
• N-IOWM. Wireless Output Module (8 units).
• Voltage supply: 230 VAC.
• 2 A fuse.
  Ground connection.
• Two outputs of 230 VAC. N-IOWM
  Two pilot lights to indicate energized outputs.
• ZLight, wireless module to control the outputs closing/opening:
• Maximum power: 50 W.
• Voltage supply range: 85 – 263 V.
• Frequency: 50 / 60 Hz.
• Transmission range: 100 m outdoors and 30 m indoors.
• Sixteen transmission channels: 2.405 – 2.480 GHz.
• N-WSDM. Wireless Smoke Detector Module.
• Detector ZGAS:
  Pilot light.
  Two alarms, for carbon monoxide and smoke.
• Battery 9V 6LR61. N-WSDM
  Carbon monoxide detection, 100 ± 50 ppm.
• Smoke detection: 1 % – 5 % PI OBS.
• Transmission range: 100 m outdoors and 30 m indoors.
• Channels: 19 (2445 MHz), 20 (2450 MHz), 25 (2475 MHz).
• N-WLDM. Wireless Leak Sensor Module.
• Water leakage sensor Zleak:
  CR2032 lithium battery.
• Transmission range: 100 m outdoors and 30 m indoors.
• Sixteen channels: 2.405 – 2.480 GHz. N-WLDM
• N-LAM16. Halogen Lamp Module.
• Nominal voltage: 230 VAC (PH + N).
  Halogen lamp.
• Power: 60 W.
  N-LAM16
  4

Specifications

• N-SEL04. Module of 4 Luminous Pilots.
• Voltage supply: 230 VAC.
• Colors: red and green.
  Ground connection.
  N-SEL04
• N-DET10. Water Solenoid Valve Module.
• Voltage supply: 230 VAC.
  Normally closed position.
• Maximum pressure: 1.5 MPa.
  N-DET10
• N-DET12. Gas Solenoid Valve Module.
• Voltage supply: 230 VAC.
• Power: 14 W.
  Ground connection.
  Automatic reset.
  N-DET12
• Maximum working pressure: 500 mBar.
• Closing time: 0.1 s.
• N-TIM05. Buzzer + Buzzer Module.
• Voltage supply: 230 VAC.
• Bell sound: 70 dB.
• Buzzer sound 80: dB.
  N-TIM05
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
