Compressed Air Pump

This device inflates vehicle tires and sports equipment with a digital pressure display and rechargeable battery. Educational Objectives: Expression of need, functional analysis, pump performance measurement, joint study, use of a 3D modeler to represent a simple shape, part drawing using a 3D modeler, comparative study of the pump with another lower-cost pump.

Kit 1

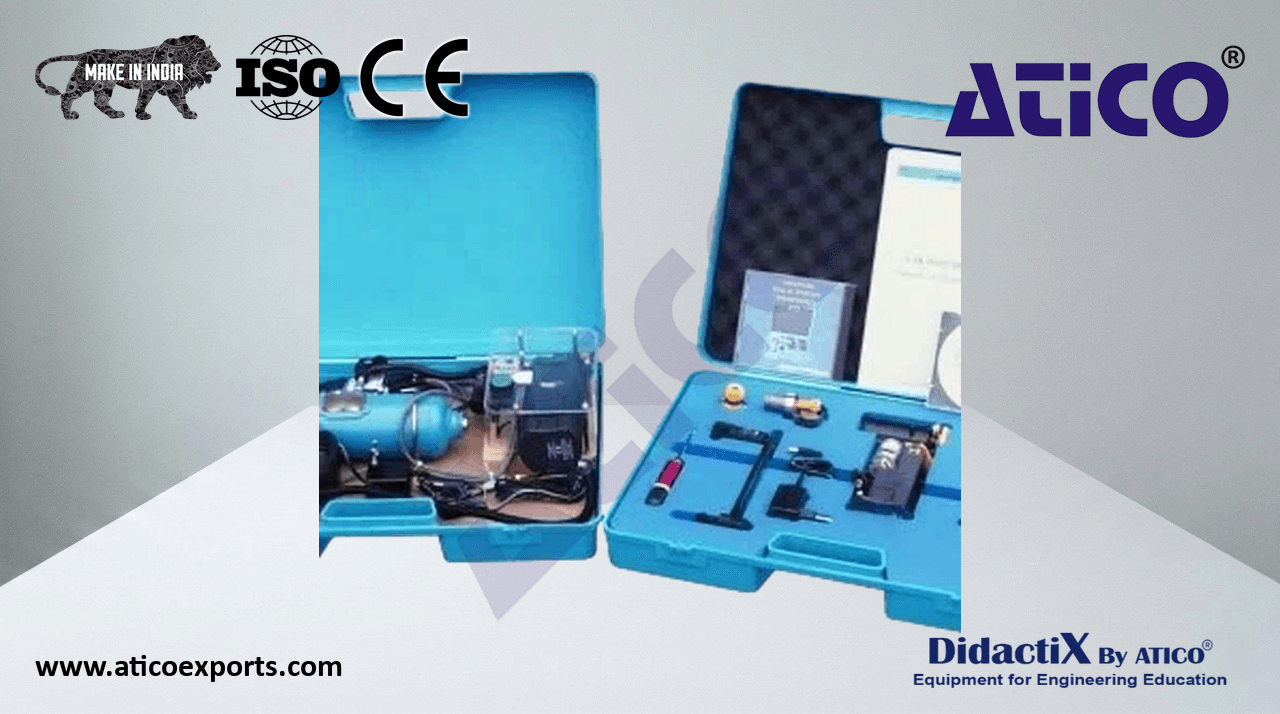

• A disassembled pump
• Tooling required for assembly and disassembly of the pump

Kit 2

• The pump in operation ('open')
• A 1-liter accumulator
• A pressure sensor with PC acquisition card
• Tooling required for assembly and disassembly
• A different pump for the mini-project
• CD-ROM with educational and technical resources and 3D drawing files

A disassembled pump
Tooling required for assembly and disassembly of the pump
The pump in operation ('open')
A 1-liter accumulator
A pressure sensor with PC acquisition card
Tooling required for assembly and disassembly
A different pump for the mini-project
CD-ROM with educational and technical resources and 3D drawing files
