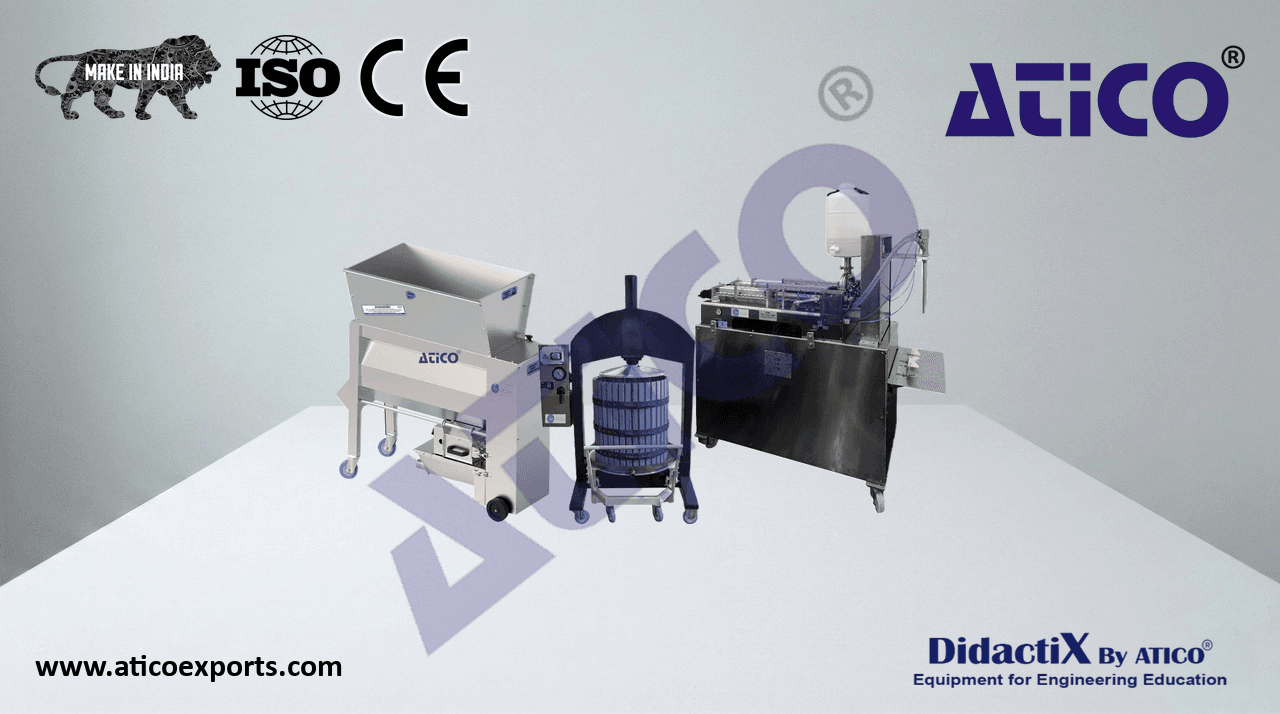

UV00 — Computer Controlled and Touch Screen Pilot Plant for the Grape Treatment
-
- UV00 Pilot Plant:
This plant includes all the necessary stages for the production
of wine.
Real unit used in wine industry.
Sensors and actuators which allows the study and understanding
of the differents processes of grapes products production.
Modular layout to allow adaptation to different spaces.
GD/CTS. Computer Controlled and Touch Screen Olive Washing Machine and Leaf Remover.
- Hourly production: 2500 - 3000 kg/h.
- Total power: 1.8 kW.
Receiving hopper.
Feeding auger from the hopper to the destemmer.
Destemmer with adjustable rubber paddles.
- Rotation speed: 520 rpm.
Rubber rollers for light pressing.
Screw conveyor for evacuation of pressed grapes.
Built in AISI 304 stainless steel.
Electric motor with pulley variator.
The rollers are adjustable, mobile and tilting.
The main elements can be removed for easy cleaning.
- Polyethylene basket: 230 x 1000 mm.
HGP/CTS. Computer Controlled and Touch Screen Hydraulic Grape Press.
- Maximum pressure: 350 bar.
- Total power: 0.75 kW.
- Stainless steel cage with wooden exterior:
- Capacity: 130 kg.
- Dimensions: 500 x 650 mm.
- Hydraulic piston:
- Diameter: 700 mm.
Stainless steel receiving vessel
Hydraulic oil.
Pressure gauge and automatic pressure adjustment.
UV00 Computer Controlled and Touch Screen Pilot Plant for the Grape Treatment
TMVF. Two Tanks for Maceration, Vatting and Fermentation of Wine.
Made of AISI 304 stainless steel.
Pneumatic kit (with manual pump and pressure gauge).
Pneumatic float.
Plastic vacuum pressure valve.
Stainless steel anti-drip rotary valve 1/2”.
Flat bottom.
- Capacity: 200 l.
- Diameter: 510 mm.
- Height: 1000 mm.
Stainless steel tripod.
AISI 304 stainless steel ribbed cooling plates inside.
- Surface area: 0.60 m2.
1/2” connection thread.
- Dimensions: 1000 x 270 mm.
ATENG 12023. Refrigeration or Heating Water Recirculation Unit.
- Reversible heat pump:
- Consumed power: 1.1 kW.
- Heat capacity: 5.5 kW.
Electronic defrost management for operation up to -2 °C. Defrost
mode cycle inversion.
COP higher than 4.3.
Rotary compressor.
- Fan:
- Power: 50 W.
- Rotational speed: 770 rpm.
Exchanger made of titanium.
Double-pass system to optimize the heat transfer.
Electronic, ergonomic and discreet control panel to display and
adjust the operation parameters of the heat pump easily. Set
point temperature setting.
- Refrigerant: R410A.
- Water tank capacity: 140 l approx.
Level sensor in the tank that prevents the unit from working with a too low water level.
- Centrifugal pump: 0.37 kW; 30 - 80 l/min to 20.1 - 12.8 m.
Flow control valve.
Drain valves to drain and clean the water tank.
Quick release fittings.
- Dimensions: 1100 x 750 x 1100 mm approx.
- Weight: 75 kg approx.
UV00 Computer Controlled and Touch Screen Pilot Plant for the Grape Treatment
EDLC. Computer Controlled Liquid Packaging Teaching Unit.
Liquid and semi-dense products dosing machine based on dose delivery through a pneumatically-operated
- cylinder:
Two cylinders with dosing nozzles with anti-drip system.
- Compressed air pressure: 6 - 8 bar.
- Dosing accuracy: ≤ 2 %.
- Dose range: 100 - 1000 ml.
- Air consumption: 370 l/min.
- Approximate production: ≤ 29 dose per minute.
(*) The production will be influenced by the product, the
selected dose, the configuration of the machine, etc.
Air flow regulators to modify the lowering/lifting speed of
the dosing nozzles.
Air flow regulators to modify the closing/opening speed of
each dosing nozzle.
Dose adjusting handle.
Air flow regulators to modify the speed of each cylinder.
- Supply tank, capacity: 20 l.
Compressed air filter and regulator.
Compressed air manometer.
Eight limit switches.
Three displacement sensors.
Manual (with a pedal) or automatic operation mode.
Safety pushbutton.
- Dimensions: 1200 x 450 x 900 mm approx.
- Weight: 50 kg approx.
