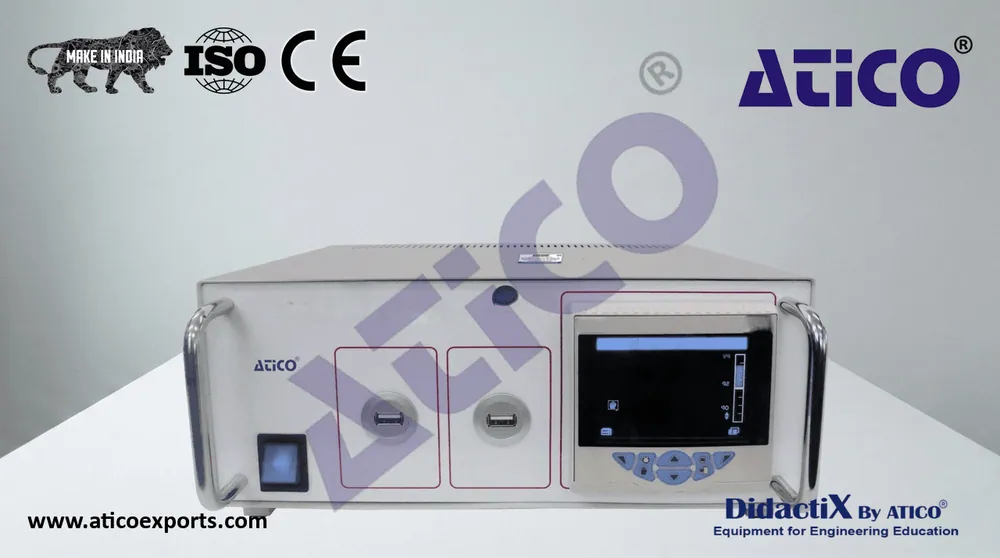

Computer Controlled Controller Tuning Unit Deluxe

The Computer Controlled Controller Tuning Unit, unit is an advanced system that operates in conjunction with a computer, which allows to change the control parameters performed by the industrial controller.

ATENG 12653 — Computer Controlled Controller Tuning Unit

(for main items)

• With this unit there are several options and possibilities:
• Main items: 1, 2, 3 and 4.
• Optional items: 5.
• Let us describe first the main items (1 to 4):
• 1CEAC. Unit:
  “ATENG 12653” interface box.
• System simulator:
  Based in Hardware-in-the-loop (HIL) technology.
  HIL with a 0.01 second per loop time.
  Real time simulation with all industrial system configured.
• Analog Input:
• Number: 10.
• Aggregate sample rate: 500kS/s.
• Resolution: 12 bits.
• 2 differential analog inputs with ±10V range.
• Analog Output:
• Number: 6.
• Aggregate sample rate: 345 kS/s.
• Resolution: 12 bits. Unit: ATENG 12653
• 2 single-ended channel with ±10V range.
• Digital I/O:
• Number: 24.
• 5 V compatible LVTTL.
• 3.3 V LVTTL output.
  USB connection to PC.
• Industrial Controller:
  ABB Control Master CM30.
• Display:
  Full-color LCD 9 cm (3.5in.) with built-in backlight.
• Language:
  English, German, French, Italian and Spanish.
• Operator keypad:
  6 tactile membrane keys.
• Password protection:
  Basic / Advanced user-assigned password protection.
• Trend display:
  Recording of 2 variables.
  Configurable sample rate (1 second to 5 minutes).
• Control output types:
  Voltage proportioning (through resistor).
• Control parameters:
• Proportional band: 0 to 999.9 %. Industrial Controller
• Integral: 0 to 10000 s.
• Derivative: 0 to 999.9 s.
• Manual Reset: 0.0 to 100 %.
• Time delay range: 0 to 1000s.
  3 sets of PID parameters when used with Gain Scheduling facility.
• Set points:
  Up to 4 local set points, all selectable via digital inputs or front panel.
  Remote selectable via digital input.
• Auto tune:
  On-demand calculation of control settings.
• Process alarms:
• Number: 8.
• Types: High / Low process and High / Low latch.
• Acknowledgement: via front panel keys or digital signals.
• Source: Fully configurable (for example, PV, analog input, math block inbuilt, OP control loop
  deviation).
• Hysteresis: Level and time.
• Alarm enable: Enable / Disable of individual alarms via a digital signal.
• Analog inputs:
• Number: 2.
• Sample rate: 125 ms.
• Type: Voltage (pre-configured), Current, Resistance (ohms), 3-Wire RTD, Thermocouple, Digital
• volt-free, Digital 24V, Frequency (Input 1) and pulse.
• Analog outputs:
• Number: 1.
• Type: Configurable as analog or digital pulse.
• Analog range: 0 to 10 V through a resistor.
• Relays:
• Number: 2.
• Type: N/O.
• Contact ratings: 5A, 240V.
• Communication: RS-485 MODBUS protocol.
  RS-485 to USB converter to make the connection with PC easy.
  4

Complete Technical Specifications (for main items)

• The complete unit includes as well:
  Advanced Real-Time SCADA.
  Open Control + Multicontrol + Real-Time Control.
  Specialized Control Software based on LabVIEW.
  Projector and/or electronic whiteboard compatibility allows the unit to be explained and
  demonstrated to an entire class at one time.
  Capable of doing applied research, real industrial simulation, training courses, etc.
  Remote operation and control by the user and remote control for technical support,
  are always included.
  Totally safe, utilizing 4 safety systems (Mechanical, Electrical, Electronic & Software).
  Designed and manufactured under several quality standards.
  Optional ICAI software helps the user perform calculations and comprehend the results.
  This unit has been designed for future expansion and integration. A common expansion is
  the Scada-Net (ESN) System which enables multiple students to simultaneously
  operate many units in a network.
• 2 CEAC/CCSOF. Computer Control + Data Acquisition + Data Management Software:
  The three softwares are part of the SCADA system.
  Compatible with actual Windows operating systems. Graphic and intuitive simulation of the
  process in screen. Compatible with the industry standards.
  Registration and visualization of all process variables in an automatic and simultaneous way.
  Flexible, open and multicontrol software, developed with actual windows graphic systems,
  acting simultaneously on all process parameters.
  The software allow to set different systems to control, such as integral systems, first order systems
  (with or without delay time) and second order systems.
  Every system has different dynamic animations that shows the response of the systems.
  The CEAC/CCSOF allows to show the mathematical model of the current simulated system.
  Control menu to adjust the different controls as PID, pPI and gain scheduling.
  Management, processing, comparison and storage of data. CEAC/CCSOF
  Sampling velocity up to 500 KS/s (kilo samples per second).
  Comparative analysis of the obtained data, after the process and modification of the conditions during
  the process.
  Open software, allowing the teacher to modify texts, instructions. Teacher’s and student’s
  passwords to facilitate the teacher’s control on the student, and allowing the access to different work
  levels.
  This unit allows the 30 students of the classroom to visualize simultaneously all the results
  and the manipulation of the unit, during the process, by using a projector or an electronic
  whiteboard.
  3 Cables and Accessories, for normal operation.
• 4Manuals:
• This unit is supplied with 7 manuals: Required services, Assembly and Installation, Control Software,
  Starting-up, Safety, Maintenance & Practices manuals.
• References 1 to 4 are the main items: ATENG 12653 + CEAC/CCSOF + Cables and Accessories + Manuals are included in the minimum supply
  for enabling normal and full operation.
