Computer Controlled Hydroelectric Power Plant with Francis Turbine

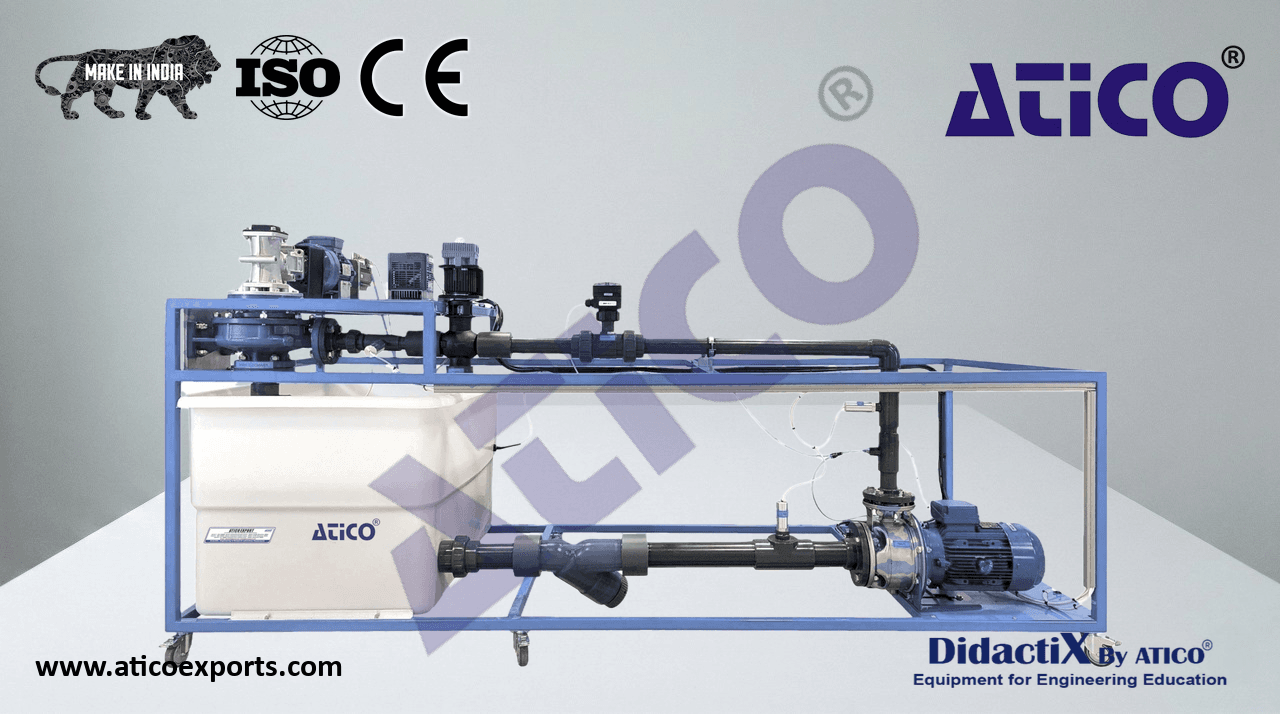

The Computer Controlled Hydroelectric Power Plant with Francis Turbine with the aim of reproducing, at laboratory scale, the real behavior of an industrial hydroelectric power plant. It allows the user to study, in an integrated way, the process of converting hydraulic energy into electrical energy (requires the recommended accessory HPPF-CR).

ATENG 11432 — Computer Controlled Hydroelectric Power Plant with Francis Turbine

(for main items)

• With this unit there are several options and possibilities:
• Main items: 1, 2, 3, 4, 5 and 6.
• Optional items: 7, 8, 9 and 10.
• Let us describe first the main items (1 to 6):
• 1HPPF Unit:
  Bench-top unit.
  Anodized aluminum frame and panels made of painted steel.
  The unit includes wheels to facilitate its mobility.
  Main metallic elements made of stainless steel.
  Diagram in the front panel with distribution of the elements similar to the real one.
• Includes:
• Francis Turbine:
• Speed range: 0 – 1700 rpm.
• Rated power: 0.75 kW.
• Generator:
• Output power: 0.75 kW.
• Nominal voltage: 3 PH, 400 V AC + N + GND.
• Speed range: 0 – 1700 rpm.
• Centrifugal Pump (PC-controlled):
• Maximum pressure: 3.2 bar.
• Maximum flow rate: 8 L/s (≈ 480 L/min).
• Unit: ATENG 11432
• Rated power: 4 kW, 3 PH.
• Frequency Converter:
• Nominal voltage: 400 V AC + 3PH.
• Rated power: 5 kW.
• Speed/flow control via analog signal: 0 – 10 VDC.
• Pressure Sensors:
• SP-1: 0 – 30 psi (0 – 2 bar).
• SP-2: 0 – 100 psi (0 – 6.7 bar).
• SP-3: 0 – 100 psi (0 – 6.7 bar).
• SP-4: 0 – 30 psi (0 – 2 bar).
• Flow Sensor:
• Measurement range: 0.9 – 45 m³/h.
• Servomotor with Incremental Encoder:
• 2 kW servomotor.
  High-resolution encoder for angular speed measurement.
  Torque transducer function for direct measurement of the torque transmitted by the turbine shaft.
• Transparent Water Tank:
• Capacity: ≈ 400 l.
  Manual drain valve.
• Instrumentation and Valves:
• Pressure gauge: 0 – 5 bar.
  Proportional servo-actuated flow control valve.
  Safety pressure switch.
• Main interface with data acquisition system:
  4-pole differential circuit breaker, C16, 30 mA.
• Nominal voltage: 400 V AC + 3PH + N + GND.
• Nominal power: 5 kW.
  ON/OFF switch.
  Anti-reset safety system.
  Emergency stop push-button.
  Protection fuses.
• Sensor connection terminals: SP-1, SP-2, SP-3, SP-4, SC-1, torque.
  Control terminal for frequency converter.
• Secondary interface with servomotor control system:
• 2 kW servo drive. Secondary interface with
  servomotor control system
  Power indicator lamp.
  4

Complete Technical Specifications (for main items)

• The complete unit includes as well:
  Advanced Real-Time SCADA.
  Open Control + Multicontrol + Real-Time Control.
  Specialized Control Software based on LabVIEW.
  National Instruments Data Acquisition board (250 KS/s, kilo samples per second).
  Calibration exercises, which are included, teach the user how to calibrate a sensor and the
  importance of checking the accuracy of the sensors before taking measurements.
  Projector and/or electronic whiteboard compatibility allows the unit to be explained and
  demonstrated to an entire class at one time.
  Capable of doing applied research, real industrial simulation, training courses, etc.
  Remote operation and control by the user and remote control for technical support,
  are always included.
  Totally safe, utilizing 4 safety systems (Mechanical, Electrical, Electronic & Software).
  Designed and manufactured under several quality standards.
  Optional ICAI software to create, edit and carry out practical exercises, tests, exams,
  calculations, etc. Apart from monitoring user's knowledge and progress reached.
  This unit has been designed for future expansion and integration. A common expansion is
  the Scada-Net (ESN) System which enables multiple students to simultaneously
  operate many units in a network.
