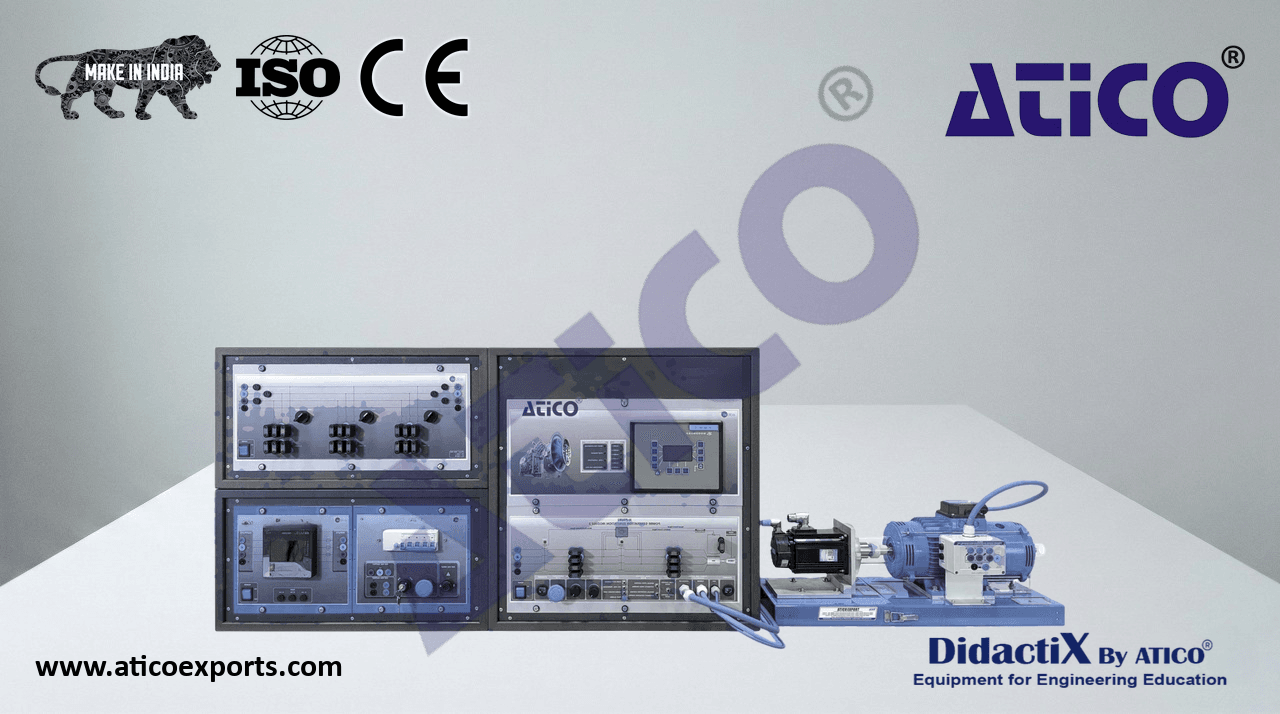

ATENG 11429 — Computer Controlled Power Plant Application
(for main items)
- With this unit there are several options and possibilities:
- Main items: 1, 2, 3 and 4.
- Optional items: 5, 6, and 7.
- Let us describe first the main items (1 to 4):
- 1AEL-EPP. Unit.
- N-ALI01. Industrial Main Power Supply Module.
- Supply voltage: 400 VAC, 3PH + N.
ON / OFF removable key.
- Output voltage connections:
- Three-phase + Neutral: 400 VAC.
- Single-phase: 230 VAC.
- Three-phase supply hose with IP44 3PN+E 32 A 400 V connecting plug.
- Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
Emergency stop push-button. N-ALI01
- N-PSUB2. Power Generation Substation Module 2.
- Supply voltage: 400 VAC, 3P H+ N.
ON / OFF switch.
- Power and signals connection:
Auxiliary connection.
- Three-phase turbine supply hose with IP44 3PN+E 32 A 400 V connecting plug.
- Three-phase generator supply hose with IP44 3PN+E 32 A 400 V connecting plug.
- Three switches to choose between the different modes:
Local and remote control mode.
Manual and automatic speed control.
Manual and automatic excitation control.
- Three control switches to: N-PSUB2
Start and stop the turbine.
Give permission to synchronize the generator with the grid.
Give permission to close 52NET circuit breaker.
- Two potentiometers to regulate:
Turbine speed.
Generator excitation.
Emergency stop button.
Two circuit breakers for synchronization and stand-alone operations.
Different terminals to measure.
- Ethernet connection: RJ-45 communication port for SCADA remote control.
- Automatic speed and voltage controller (easygen):
Enables to connect up to 16 electric generators in parallel-island with distribution of active
and reactive load and start/stop in function of the load demand.
Enables to connect a generator in parallel with the grid.
Enables different switches control modes, such as opening, closing and synchronization.
Analogical outputs to control voltage and frequency regulators.
Three-phase measurement of the grid and the generator voltage.
Three-phase measurement of the generator intensity and power.
Single-phase measurement of the grid intensity.
- Protection system:
- Generator:
Maximum/minimum voltage (59/27), maximum/minimum frequency (81O/U),
voltage asymmetry, detection of dead busbars, overvoltage (32), load unbalance
(46), negative sequence power/reduced power (32R/F), overcurrent by defined curve
(50/51), inverse time overcurrent (IEC255), measured ground fault (50N/51N), phase
rotation, switches faults.
- Network:
Maximum/minimum voltage (59/27), maximum/minimum frequency (81O/U), vector
jump, phase rotation.
- Six alarms:
- Alarm 1: Reverse power.
- Alarm 2: Overcurrent.
- Alarm 3: Over/under voltage.
- Alarm 4: Inverse time overcurrent.
- Alarm 5: Over/under frequency.
- Alarm 6: Shutdown alarms.
- Four operation signals:
Ready for operation.
Start request.
Synchronization conditions.
Permission for synchronization.
3
Complete Technical Specifications (for main items)
- EMT6/1K. Independent Excitation 3PH Synchronous Motor-Generator, 1 kW.
- Nominal power: 1000 VA.
- Power factor: 0.8.
- Nominal output voltage: 3 x 400 VAC.
- Frequency: 50/60 Hz.
EMT6/1K
- Speed: 3000 rpm.
- Nominal output current: 0.8 A.
- Nominal excitation current: 5 A.
- Shaft height: 71 mm.
- SERV01. Servomotor de CA 1.
- Nominal power: 2000 W.
- Nominal voltage: 400 VAC.
- Nominal speed: 3000 rpm.
- Nominal current: 5 A.
SERV01
- N-EALD. Electrical Network Analyzer Module with Oscilloscope and Data Acquisition.
The network analyzer module allows fulfilling measurements, displaying and analyzing all
the parameters of the AC electrical networks. It has an LCD screen and push-buttons for the
navigation through the different menus. It includes specific software for monitoring current and
voltage curves, harmonics display, tariffs programming, alarms programming and electrical
parameters storage.
- Features: N-EALD
- Multifunctional three-phase power meter:
- Three-phase and single-phase voltage. Up to 690 VAC L-L.
- Line and neutral nominal current: 10 A.
Active, reactive and apparent power.
- Suitable frequencies: 25 Hz, 50 Hz, 60 Hz and 400 Hz.
Display of the V-I vector diagram.
- Supply voltage: 85 – 265 VAC.
- Energy quality control:
Current and voltage individual harmonics measurement. Up to the 40th harmonic.
Voltage and current THD, TDD and K-Factor.
Maximums and minimums display.
Waveforms display, 128 samples/sec.
- Events and data storage:
- Harmonics analyzer:
Voltage and current THD, current TDD and K-Factor, up to the 40th harmonic.
Current and voltage harmonic spectrum and angles.
- Tariff programming:
Class 0.5S IEC 62053 – 22, active and reactive power in four quadrants.
Measurement of the total and per phase three-phase active, reactive and apparent powers.
Usage time, four energy/demand records of total tariffs.
Eight tariffs, four seasons and four types of days.
Automatic daily report of energy consumption maximums and minimums.
- Communications:
RS – 485 communication port.
4
Complete Technical Specifications (for main items)
- Elements required (at least one) (Not included):
- TPEL/1800W. Single-phase AC/DC Electronic Load of 1800W (3 units).
The TPEL/1800W electrical load stands out for its versatility in operating in both AC and DC.
- With a wide power range from 0 to 1800VA and an adjustable frequency from 45 Hz to 450
Hz, this electronic source offers exceptional capabilities.
With its advanced measurement capabilities, 7-inch LCD display, and features such as the built-
in oscilloscope, the TPEL/1800W is the ideal solution for laboratory testing of most of ’s
equipment such as UPS, inverters, AC power supplies, electrical generators and AC electronic
components. In addition, its connectivity via LAN and USB interfaces ensures reliable and fast
control, adding an additional level of efficiency to its capabilities. TPEL/1800W
- Technical Features:
- Frequency Range: 45 Hz ~ 450 Hz.
- Power Range: 0 ~ 1.8 kVA.
- Voltage Range: 50 – 420 Vrms, 15 – 260 Vrms.
- Parallel Connection/Three Phase Control: Capacity can be extended up to 43.2kVA.
- 7 Inch LCD Display: Provides a clear and accessible interface.
- Oscilloscope Function: Allows display of voltage and current waveforms.
- High Speed AD Sampling: Captures real-time waveforms.
- Measurement Modes: Includes Vrms, Vpk, Vdc, Irms, Ipk, Idc, W, VA, VAR, ATENG 11797, PF and FREQ.
- Harmonic Measurement: Up to harmonic 50 (THD-V).
- AC Electronic Load: DC/CR/CP modes.
- DC Electronic Load: DC/CR/CP/CV modes.
- External Analog Control: 0~10 V analog input, with voltage and current monitoring functions.
- Protection Functions: OTP, OCP, OVP, UVP and OPP.
- Communication Interfaces: LAN and USB, plus external interface for USB flash disk.
- RLC-KIT-1. RLC Load with Manual Control Kit.
- N-REFT/3C. 3 x 300 W Three-phase Configurable Resistors Module.
Configurable star and delta connections.
Three banks with three three-phase resistors of 1600 Ω.
- Nominal voltage: 400 VAC.
- Nominal power: 3 x (3 x 300) W. N-REFT/3C
- N-INDT/3C. 3 x 300 Var Three-phase Configurable Inductances Module.
Configurable star and delta connection.
- Inductance: 3 x (3 x 5) H.
- Nominal voltage: 400 VAC.
N-INDT/3C
- Nominal power: 3 x (3 x 100) Var.
- Supply voltage: 230 VAC.
Common point of normally close/open contacts.
- N-CAR19T/3C. 3 x 300 Var Three-phase Configurable Capacitors Module.
Configurable star and delta connections.
Three banks with three three-phase capacitors of 2 μF.
- Nominal voltage: 400 VAC.
N-CAR19T/3C
- Nominal power: 3 x (3 x 300) Var.
5
Complete Technical Specifications (for main items)
- Required elements (Not included):
- AEL-PC. Touch Screen and Computer.
- Touch screen:
- Energy efficiency class: A.
- Screen diagonal: 68.6 cm (27 inch (s)).
- Power consumption (operating): 26 watts.
AEL-PC
- Annual energy consumption: 38 kWh.
- Power consumption (standby / off): 0.49 watts.
- Screen resolution: 1920 x 1080 pixels.
- Computer:
- Processor number: Intel Core i7-6600U Processor (4M cache, up to 3.40 GHz).
- Cache: 4 MB Intel Smart Cache.
- Clock speed: 2.6 GHz.
-
Of Cores/# of threads: 2/4.
- Max. TDP / Power: 15 W.
- Memory types: DDR4-2133, LPDDDR3-1866, DDR3L-1600.
- Graphics: graphics Intel HD 530.
Slot for PCI Express.
