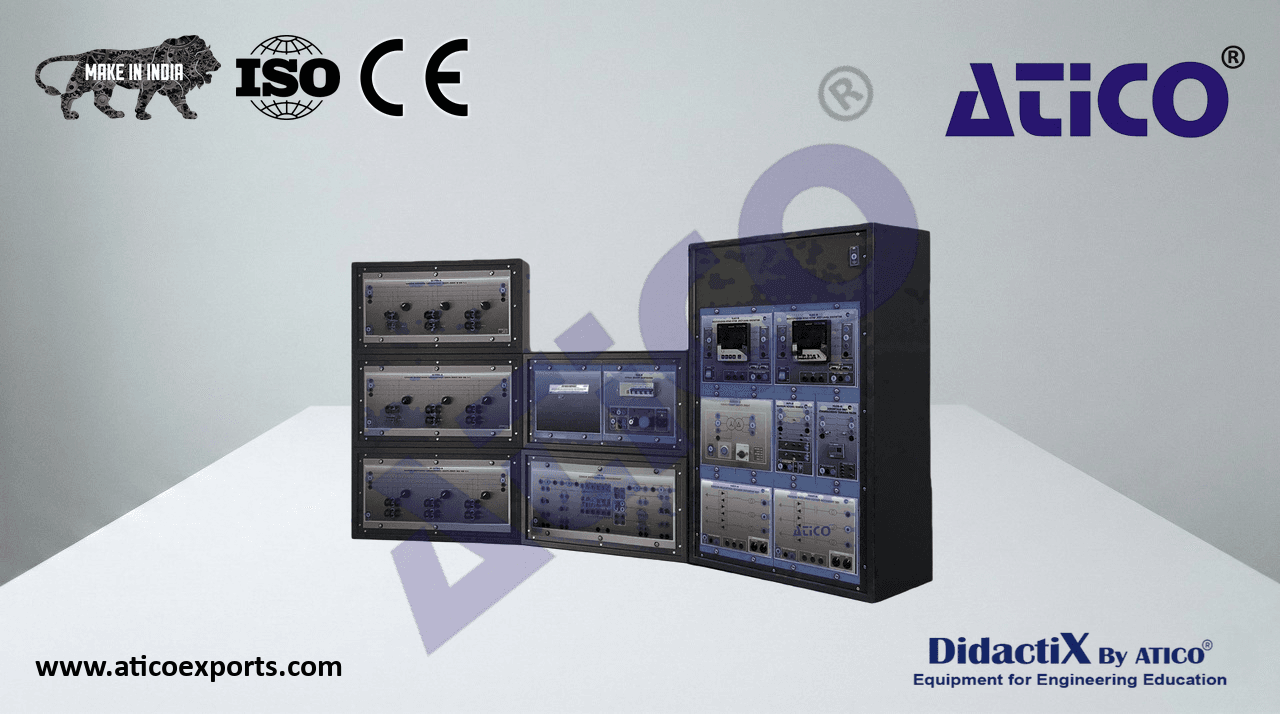

Computer Controlled Power Transmission Smart Grid Application, with SCADA

The Power Transmission Smart Grid Application, with SCADA, has been designed to study the most important applications based on thyristor controlled reactor (TCR), thyristor switched capacitor (TSC), STATCOMs and High Voltage DC Transmision Systems.

ATENG 11468 — Computer Controlled Power Transmission Smart Grid Application, with SCADA

(for main items)

• With this unit there are several options and possibilities:
• Main items: 1, 2, 3 and 4.
• Optional items: 5, 6 and 7.
• Let us describe first the main items (1 to 4):
• 1AEL-PTSG Application.
• N-ALI01. Industrial Main Power Supply Module.
• Supply voltage: 400 VAC, 3PH + N.
  ON/OFF removable key.
• Output voltage connections:
• Three-phase + Neutral: 400 VAC.
• Single-phase: 230 VAC.
• Three-phase supply hose with IP44 3PN + E 32 A 400 V connecting plug.
  N-ALI01
• Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-AE1. Transmission Lines Simulation Module (2 units).
  Return line of 10 Ohm.
• The resistive part: two resistance values of 15 Ohm and 33 Ohm with the following possible
• connections:
• Only one:
  15 Ohm.
  33 Ohm.
  N-AE1
• Serie:
  48 Ohm.
• Parallel:
  10.31 Ohm.
• The inductive part:
• Possibilities:
  33 mH, 78 mH, 140 mH, 193 mH, 236 mH.
• The capacitance between conductors:
  0.5 µF and 1 µF for each conductor.
• The capacitance between conductor and ground:
  1 µF and 2 µF, also at the beginning and at the end of the line.
• N-EALD. Network Analyzer Module with Oscilloscope and Data Acquisition (2 units).
  The network analyzer module allows fulfilling measurements, displaying and analyzing all
  the parameters of the AC electrical networks. It has an LCD screen and push-buttons for the
  navigation through the different menus. It includes a specific software for monitoring current
  and voltage curves, harmonics display, tariffs programming, alarms programming and electrical
  parameters storage.
• Features:
  N-EALD
• Multifunctional three-phase power meter:
• Three-phase and single-phase voltage. Up to 690 VAC L-L.
• Line and neutral nominal current: 10 A.
  Active, reactive and apparent power.
• Suitable frequencies: 25 Hz, 50 Hz, 60 Hz and 400 Hz.
  Display of the V-I vector diagram.
• Supply voltage: 85 – 265 VAC.
• Energy quality control:
  Current and voltage individual harmonics measurement. Up to the 40th harmonic.
  Voltage and THD current, TDD current and K-Factor.
  Maximums and minimums display.
  Waveforms display, 128 samples/sec.
• Events and data storage:
• Harmonics analyzer:
  Voltage and THD current, TDD current and K-Factor, up to the 40th harmonic.
  Current and voltage harmonic spectrum and angles.
• Tariff programming:
  Class 0.5S IEC 62053 – 22, active and reactive power in four quadrants.
  Measurement of the total and per phase three-phase active, reactive and apparent powers.
  Usage time, four energy/demand records of total tariffs.
  Eight tariffs, four seasons and four types of days.
  Automatic daily report of energy consumption maximums and minimums.
• Communications:
  RS – 485 communication port.
  4

Complete Technical Specifications (for main items)

• N-REL09. Time Electronic Relay against Overcurrents Module (0-16 A).
  Electronic thermal relay.
  Overload protection.
• Range: 0 – 16 A.
  Reset and test function.
  One NO/NC contact. N-REL09
  Temporization.
• N-REFT/3C. 3 x 300 W Three-phase Configurable Resistors Module.
  Three three-phase banks with resistors of 1600 Ω each one.
  Configurable star and delta connections.
• Nominal voltage: 400 VAC. N-REFT/3C
• Nominal power: 3 x (3 x 300) W.
• N-INDT/3C. 3 x 300 Var Three-phase Configurable Inductances Module.
  Three three-phase banks with inductances of 5 H each one.
  Configurable star and delta connection.
• Nominal voltage: 400 VAC. N-INDT/3C
• Nominal power: 3 x (3 x 100) Var.
• N-CAR19T/3C. 3 x 300 Var Three-phase Configurable Capacitors Module (2 units).
  Three three-phase banks with capacitors of 2 µF each one.
  Configurable star and delta connection.
• Nominal voltage: 400 VAC. N-CAR19T/3C
• Nominal power: 3 x (3 x 300) Var.
• N-TRANS09. Three-phase Isolating Transformer, 400/400 VAC, 1 kVA, Module (2 units).
• Nominal power: 1 kVA.
• Primary winding voltage: 3 x 400 VAC Δ.
• Secondary winding voltage: 3 x 400 VAC Y.
  N-TRANS09
• Fuses: 3 x 5 A.
• N-FILT01. Three-phase Filter Module 1.
  Filter for power electronics.
• Nominal current: 5 A.
  N-FILT01
• N-INDT/L01. Three-phase Line Inductors Module 1.
  Filter for power electronics.
• Nominal current: 5 A.
• N-TRANS3R/1K. Three-phase Transformer with Motor Voltage Regulator Module (2 units).
  3PH autotransformer.
  N-INDT/L01
• Primary winding voltage: 3 x 400 VAC.
• Secondary winding voltage: 3 x 450 VAC.
• Nominal power: 1 kVA.
• Frequency: 50/60 Hz.
  Voltage regulation switch.
• Digital input 1: 12 VDC (Regulation +).
  N-TRANS3R/1K
• Digital input 2: 12 VDC (Regulation -).
• N-IGBT01. Chopper/Inverter Module 1.
  6 x IGBT.
  Digital inputs for firing of IGBT.
  Fuses.
  N-IGBT01
  5

Complete Technical Specifications (for main items)

• SVC-K1. TCR Thyristor Reactor Controller Kit.
• N-TCR01. TCR Thyristor Reactor Controller Module.
• Supply voltage: 230 VAC.
• Nominal power: 1 kVA.
• Nominal current: 1.44 A.
  Thyristor bridge firing angle control.
  N-TCR01
• N-INDT. Three-phase Commutable Inductive Load Module.
• Nominal voltage: 400 VAC.
• Inductance: 1.4 H.
• Nominal current: 1.6 A.
  Manual switch to turn ON/OFF inductances.
• Fuses: 3 x 2 A.
• Terminals: N-INDT
  Four input terminals (3PH + N).
  Four output terminals (3PH + N).
• SVC-K2. TSC Thyristor Switch Capacitor Kit.
• N-TSC01. TSC Thyristor Switch Capacitor Module.
• Supply voltage: 230 VAC.
• Nominal power: 1 kVA.
• Rated current: 1.44 A.
  Thyristor bridge firing angle control.
  N-TSC01
• N-CONT. Three-phase Commutable Capacitive Load.
• Nominal voltage: 400 VAC.
• Capacitance: 3 x 7 µF.
  Manual switch to turn ON/OFF capacitors.
• Fuses: 3 x 4 A.
• Terminals:
  Four input terminals (3PH + N). N-CONT
  Four output terminals (3PH + N).
• Recommended additional elements (Not included):
• TPEL/1800W. Single-phase AC/DC Electronic Load of 1800W (3 units).
  The TPEL/1800W electrical load stands out for its versatility in operating in both AC and DC.
• With a wide power range from 0 to 1800VA and an adjustable frequency from 45 Hz to 450
  Hz, this electronic source offers exceptional capabilities.
  TPEL/1800W
  With its advanced measurement capabilities, 7-inch LCD display, and features such as the
  built-in oscilloscope, the TPEL/1800W is the ideal solution for laboratory testing of most
  of ’s unit such as UPS, inverters, AC power supplies, electrical generators and AC
  electronic components. In addition, its connectivity via LAN and USB interfaces ensures reliable
  and fast control, adding an additional level of efficiency to its capabilities.
• Technical Features:
• Frequency Range: 45 Hz~450 Hz.
• Power Range: 0~1.8 kVA.
• Voltage Range: 50-420 Vrms, 15-260 Vrms.
• Parallel Connection/Three Phase Control: Capacity can be extended up to 43.2 kVA.
• 7 Inch LCD Display: Provides a clear and accessible interface.
• Oscilloscope Function: Allows display of voltage and current waveforms.
• High Speed AD Sampling: Captures real-time waveforms.
• Measurement Modes: Includes Vrms, Vpk, Vdc, Irms, Ipk, Idc, W, VA, VAR, ATENG 11797, PF and FREQ.
• Harmonic Measurement: Up to harmonic 50 (THD-V).
• AC Electronic Load: DC/CR/CP modes.
• DC Electronic Load: DC/CR/CP/CV modes.
• External Analog Control: 0~10 V analog input, with voltage and current monitoring
  functions.
• Protection Functions: OTP, OCP, OVP, UVP and OPP.
• Communication Interfaces: LAN and USB, plus external interface for USB flash disk.
• All necessary cables to realize the practical exercises are included.
  6

Complete Technical Specifications (for main items)

• The complete unit includes as well:
  Advanced Real-Time SCADA.
  Open Control + Multicontrol + Real-Time Control.
  Specialized Control Software based on LabVIEW.
  Projector and/or electronic whiteboard compatibility allows the unit to be explained and
  demonstrated to an entire class at one time.
  Capable of doing applied research, real industrial simulation, training courses, etc.
  Remote operation and control by the user and remote control for technical support,
  are always included.
  Totally safe, utilizing 4 safety systems (Mechanical, Electrical, Electronic & Software).
  Designed and manufactured under several quality standards.
  Optional ICAI software to create, edit and carry out practical exercises, tests, exams,
  calculations, etc. Apart from monitoring user's knowledge and progress reached.
  This unit has been designed for future expansion and integration. A common expansion is
  the Scada-Net (ESN) System which enables multiple students to simultaneously
  operate many units in a network.
• 2 AEL-PTSG/CCSOF. Computer Control + Data Acquisition + Data Management
• Software:
  The three softwares are part of the SCADA system.
  Compatible with actual Windows operating systems. Graphic and intuitive simulation of the process in
  screen. Compatible with the industry standards.
  Registration and visualization of all process variables in an automatic and simultaneous way.
  Flexible, open and multicontrol software, developed with actual windows graphic systems, acting
  simultaneously on all process parameters.
  Management, processing, comparison and storage of data.
  It allows the registration of the alarms state and the graphic representation in real time.
  Comparative analysis of the obtained data, after the process and modification of the conditions during AEL-PTSG/CCSOF
  the process.
  Open software, allowing the teacher to modify texts, instructions. Teacher’s and student’s
  passwords to facilitate the teacher’s control on the student, and allowing the access to different work
  levels.
  This unit allows the 30 students of the classroom to visualize simultaneously all the results
  and the manipulation of the unit, during the process, by using a projector or an electronic
  whiteboard.
  3 Cables and Accessories, for normal operation.
• 4Manuals:
• This unit is supplied with 7 manuals: Required services, Assembly and Installation, Control Software,
  Starting-up, Safety, Maintenance & Practices manuals.
• References 1 to 4 are the main items: ATENG 11468 + AEL-PTSG/CCSOF + Cables and Accessories + Manuals are included in the
  minimum supply for enabling normal and full operation.
