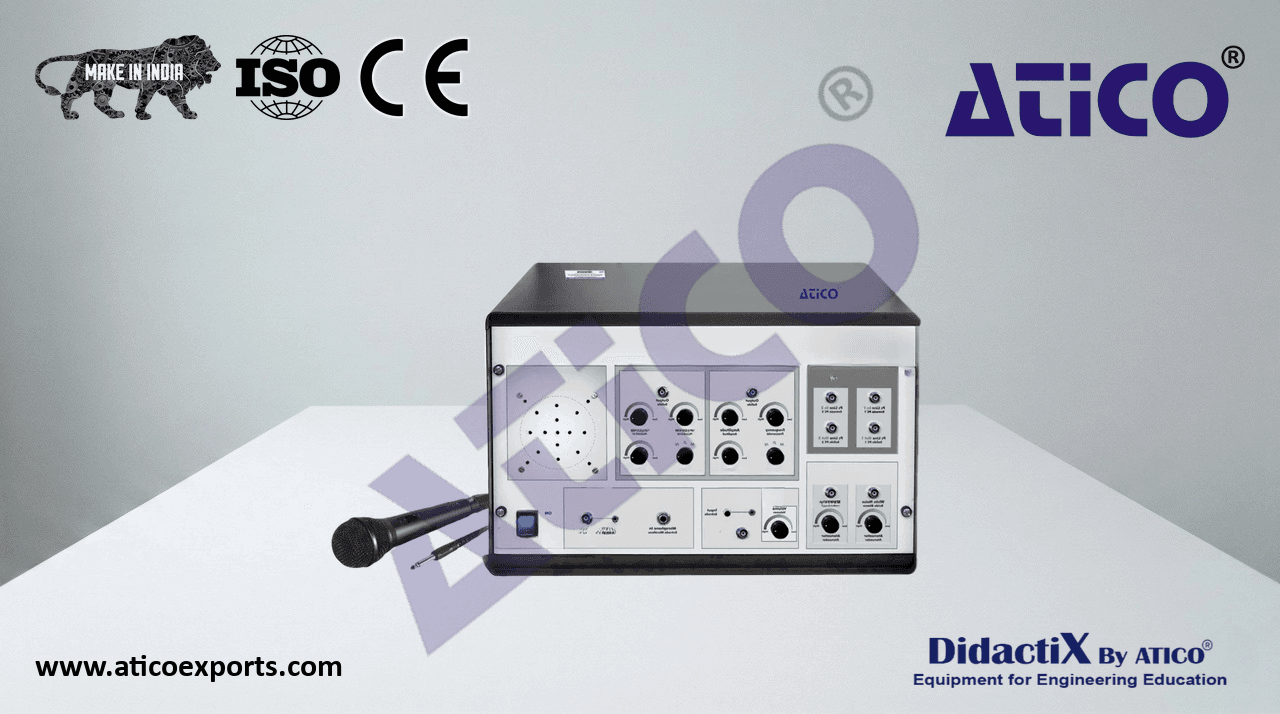

Computer Controlled Teaching Unit for the Study of Digital Signal Processing Deluxe

The Computer Controlled Teaching Unit for the Study of Digital Signal Processing, allows to understand the principles of digital signal processing and signal analysis.

ATENG 12353 — Computer Controlled Teaching Unit for the Study of Digital Signal Processing

(for main items)

• With this unit there are several options and possibilities:
• Main items: 1, 2, 3, 4 and 5.
• Optional items: 6, 7 and 8.
• Let us describe first the main items (1 to 5):
• 1TDS. Unit:
  Unit mounted in a metallic box.
• Two Function Generators modules, each one includes:
• Waveform selector: sine, square and triangular.
• Frequency potentiometer, range: 20 Hz to 20 KHz.
• Amplitude potentiometer, range: ± 10 V.
• Duty cycle potentiometer, range: 0% to 100%.
  BNC output connector.
• Noise Generator module:
• White noise generator:
• Amplitude potentiometer, range: ± 10 V.
  BNC output connector.
• Pink noise generator (also called frequency inverter or noise 1/ ƒ):
• Amplitude potentiometer, range: ± 10 V.
  BNC output connector.
• Microphone Pre-Amplifier module:
  It adapts the microphone signal to be analyzed by the data
• acquisition system or by the speaker. Unit: ATENG 12353
  1/4’’ jack input connector for the microphone.
  BNC output connector.
• Microphone:
• Impedance: 500 W.
• Frequency response: 70 Hz to 14 KHz.
  1/4’’ jack connector.
• Power Amplifier module, including:
  BNC input connector.
  BNC output connector.
  Potentiometer to regulate the power amplifier gain.
• Speaker module:
• Impedance: 8 W.
• Nominal maximum power: 30 W.
• Frequency response: 100 Hz to 13 KHz.
• PC input/output module, including:
  Two BNC input connectors.
  Two BNC output connectors.
  SCSI connector to the data acquisition board (to be placed in the computer).
  Possibility of working simultaneously with two external signals, facilitating operations that require more
  than one signal.
  Moreover, it is possible to generate different waveforms by the software and send them to the outputs
  of the unit.
  These signals can be visualized by an external oscilloscope or be listened by the speaker.
• The complete unit includes as well:
  Advanced Real-Time SCADA.
  Open Control + Multicontrol + Real-Time Control.
  Specialized Control Software based on LabVIEW.
  National Instruments Data Acquisition board (250 KS/s, kilo samples per second).
  Projector and/or electronic whiteboard compatibility allows the unit to be explained and
  demonstrated to an entire class at one time.
  Capable of doing applied research, real industrial simulation, training courses, etc.
  Remote operation and control by the user and remote control for technical support,
  are always included.
  Totally safe, utilizing 4 safety systems (Mechanical, Electrical, Electronic & Software).
  Designed and manufactured under several quality standards.
  Optional ICAI software to create, edit and carry out practical exercises, tests, exams,
  calculations, etc. Apart from monitoring user's knowledge and progress reached.
  This unit has been designed for future expansion and integration. A common expansion is
  the Scada-Net (ESN) System which enables multiple students to simultaneously
  operate many units in a network.
  4

Complete Technical Specifications (for main items)

• DAB. Data Acquisition Board:
  The Data Acquisition board is part of the SCADA system.
  PCI Express Data acquisition board (National Instruments) to be placed in a computer slot. Bus
  PCI Express.
• Analog input:
  Number of channels= 16 single-ended or 8 differential. Resolution=16 bits, 1 in 65536.
• Sampling rate up to: 250 KS/s (kilo samples per second).
• Input range (V)=±10 V. Data transfers=DMA, interrupts, programmed I/0. DMA channels=6.
• Analog output:
  Number of channels=2. Resolution=16 bits, 1 in 65536.
• Maximum output rate up to: 900 KS/s. DAB
• Output range (V)=±10 V. Data transfers=DMA, interrupts, programmed I/0.
• Digital Input/Output:
• Number of channels=24 inputs/outputs. D0 or DI Sample Clock frequency: 0 to 100 MHz.
• Timing: Number of Counter/timers=4. Resolution: Counter/timers: 32 bits.
  The Data Acquisition board model may change at any moment, providing the same or better
  features than those required for the unit.
• 3 TDS/CCSOF. Computer Control + Data Acquisition + Data Management Software:
  The three softwares are part of the SCADA system.
  Compatible with actual Windows operating systems. Graphic and intuitive simulation of the
  process in screen. Compatible with the industry standards.
  Registration and visualization of all process variables in an automatic and simultaneous way.
  Management, processing, comparison and storage of data.
  Two signals can be visualized simultaneously.
  Two signals can be generated simultaneously.
• Totally configurable digital filters: Infinite Impulse Response (IIR) filter and Finite
  Impulse Response (FIR) filter.
• Totally configurable analog filters: Butterworth filter, Chebyshev filter, etc.
  Visualization of frequency and time response of the signal before and after filter.
  Visualization of each input signal and the signal result of the combination of the two
  input signals.
  This signal combination allows the study of the generated signal (sine, square and triangle) TDS/CCSOF
  or the user voice (with the microphone and microphone pre-amplifier) when a white noise or
  pink noise is added to the signal.
  Sampling velocity up to 250 KS/s (kilo samples per second).
  Open software, allowing the teacher to modify texts, instructions. Teacher’s and student’s
  passwords to facilitate the teacher’s control on the student, and allowing the access to different work
  levels.
  This unit allows the 30 students of the classroom to visualize simultaneously all the results
  and the manipulation of the unit, during the process, by using a projector or an electronic
  whiteboard.
  4 Cables and Accessories, for normal operation.
• 5Manuals:
• This unit is supplied with 7 manuals: Required Services, Assembly and Installation and Control
  Software, Starting-up, Safety, Maintenance & Practices Manuals.
• References 1 to 5 are the main items: ATENG 12353 + DAB + TDS/CCSOF + Cables and Accessories + Manuals are included in the minimum
  supply for enabling normal and full operation.
