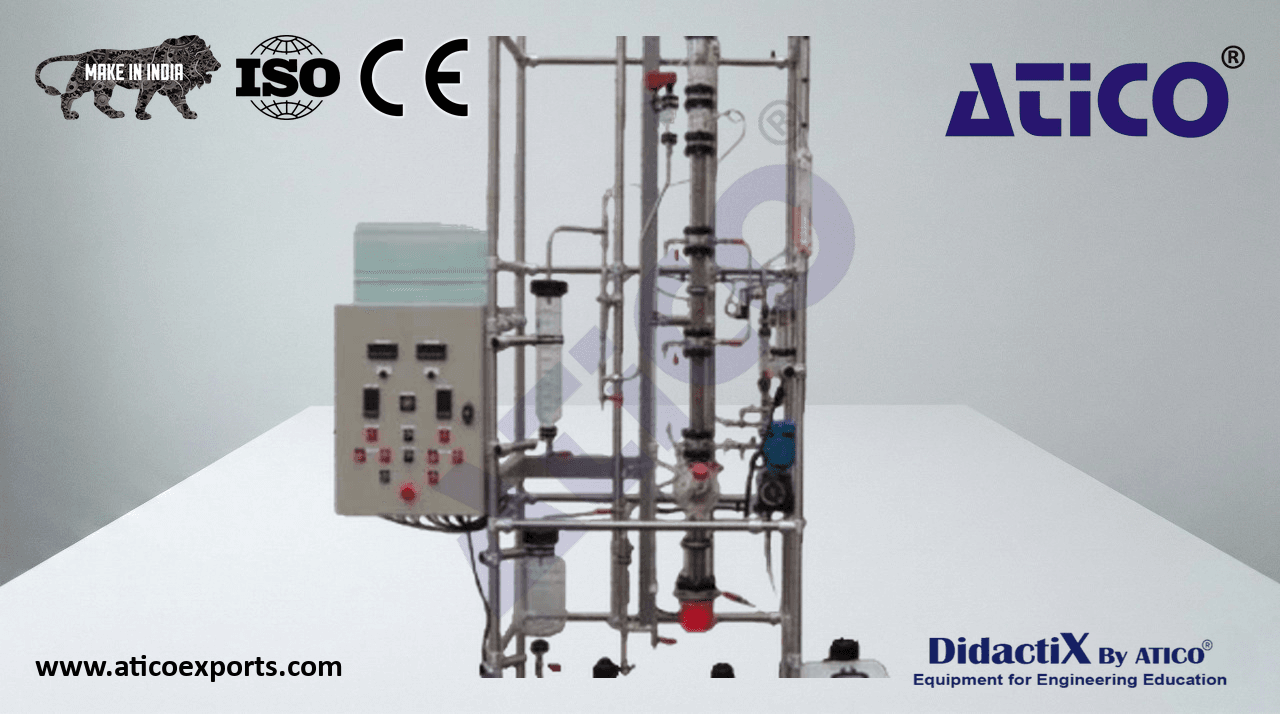

ATENG 10807 — Continuous Distillation Unit
Anodized aluminum frame and panels made of painted steel.
Main metallic elements made of stainless steel.
Diagram in the front panel with distribution of the elements similar to the real one.
Sieve Plates Column with eight plates with with samples on each plate and temperature taking (“J” type
- sensor):
- Internal diameter: 50 mm.
- Length: 1000 mm.
Vacuumed, silver-plated and double transparent band for vision.
The column can work both continuously and discontinuously.
Column head with temperature taking, conical output for distilled product and ball refrigerator.
Column head with a valve for the steam distribution. The valve operates in an electromagnetic way.
- Boiler (with sample outputs) with heating mantle, with maximum adjustable power: 500 W. Capacity: 2 l.
ATENG 10807 detail
- Distillation collector of graduated glass, capacity: 2 l.
Liebig-west coolant.
Feeding system in continuous with preheating (heating resistance) at the specified temperature and a pump that provides a maximum flow
of 3.81 l/min.
- Feed vessel, capacity: 10 l.
- Adjustable vacuum pump that allows to decrease the atmospheric pressure to 0.5 bar.
Temperature measurement system. Twelve temperature sensors (“J” type).
Flow meter.
Manometer tubes.
- Working temperature: ambient temperature up to 125 °C.
Solenoid valve.
- Electronic console:
Metallic box.
Temperature sensors connections.
Digital display for temperature sensors.
Selector for temperature sensors.
Heating resistance controller.
Pump switches.
Solenoid valve timer controller. (Solenoid valve reflux time control).
Level switch.
Main switch.
Cables and accessories, for normal operation.
