Control Application for Home Electric Service through the telephone

The Control Application for Home Electric Services through the Telephone, to study some home safety applications.

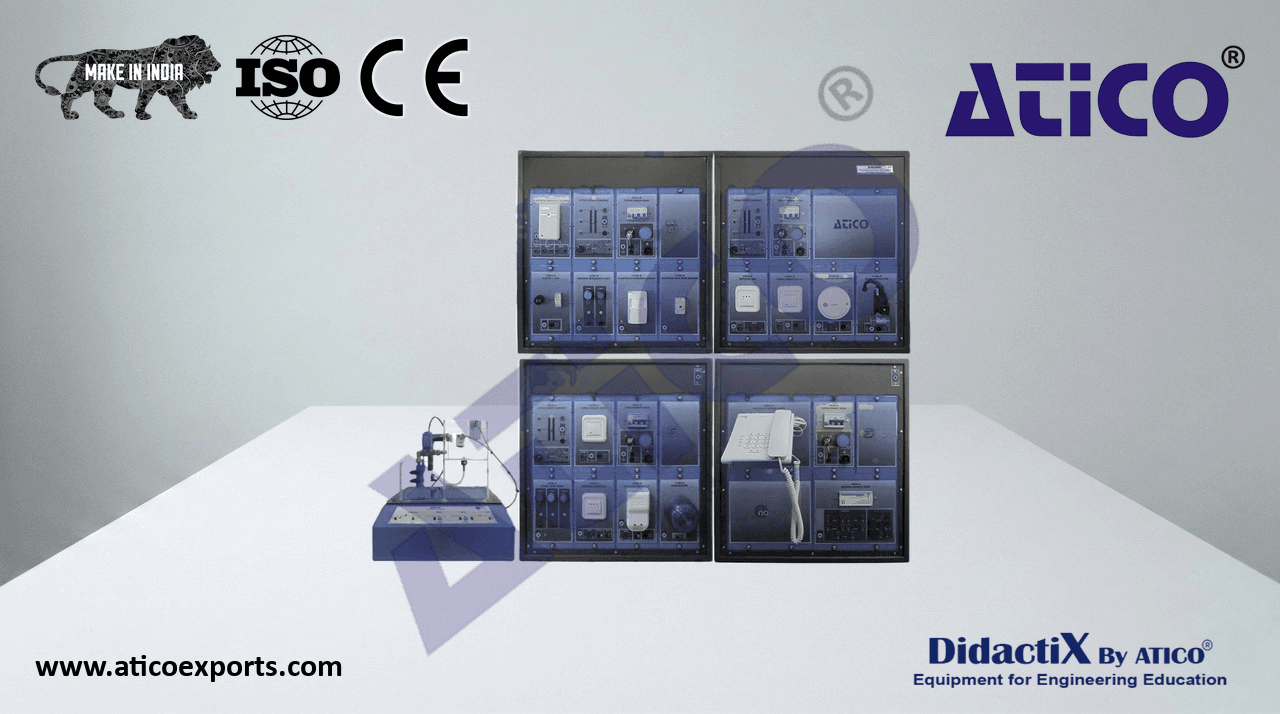

ATENG 11069 — Control Application for Home Electric Service through the telephone

• The application “ATENG 11069” includes the following elements:
• The application “ATENG 11071” includes the following elements:
• N-ALI02. Domestic Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  Single-phase supply hose with connecting plug. N-ALI02
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-ALI03. Variable Auxiliary Voltage Supply Module (24 Vac).
• Supply voltage (single-phase): 230 VAC, 1PH + N.
• Output voltage:
• Single-phase 24 VAC / 12 VAC.
• 24 VDC.
  N-ALI03
• 0 – 24 VDC through potentiometer.
• N-DET01. Flood Detector Module.
• Voltage supply: 230 VAC.
• Frequency: 50 / 60 Hz.
• Power: 5 W.
  Alarm LED.
  One input for probe. N-DET01
  Two alarm outputs.
  Connectable to the solenoid valve.
  Status LED.
• N-DET03. Built-in Power Supply Module (gas, flood detector).
• Voltage supply: 230 VAC.
• Output voltage: 12 VAC.
  Ground connection.
  N-DET03
  Service LED.
• N-DET04. Built-in Flood Detector Module.
• Voltage supply: 12 VAC.
  One input for probe.
  Two alarm outputs.
  N-DET04
  Alarm and status LED.
  Acoustic alarm.
• N-SEL03. Three Pilots Light Module.
• Voltage supply: 24 VAC.
• Colors: red, yellow and green.
  N-SEL03
• N-SEL21. Indoor Siren Module.
• Volume configuration through voltage: 12 – 24 VDC.
  87 – 112 dB.
  12 – 30 mA.
  32 tones.
  N-SEL21
  4

Specifications

• The application “ATENG 11081” includes the following elements:
• N-ALI02. Domestic Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  N-ALI02
  Single-phase supply hose with connecting plug.
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-ALI03. Variable Auxiliary Voltage Supply Module (24 Vac).
• Supply voltage (single-phase): 230 VAC, 1PH + N.
• Output voltage:
• Single-phase 24 VAC / 12 VAC.
• 24 VDC.
  N-ALI03
• 0 – 24 VDC through potentiometer.
• N-DET13. Wireless RF Intrusion Detector Module.
• Vision angle: 90°.
• Frequency: 433.92 MHz.
• Voltage supply: battery of 3.6 VDC.
• Max area: 12 x 12 m.
  N-DET13
  Status LED.
• N-DET14. Wireless RF Panic Button Module.
• Frequency: 433.92 MHz.
• Voltage supply: battery of 12 VDC.
  Battery status LED.
• Working temperature: 0 – 49 °C.
• Dimensions: 32 x 53 x 17 mm. N-DET14
• N-DET15. Wireless RF Single Channel Receiver Module.
  Communication with 10 transmitter modules.
• Frequency: 433.92 MHz.
• Voltage supply: 12 VDC.
  One alarm output. N-DET15
  One tamper output.
• Dimensions: 110 x 63 x 25 mm.
• N-SEL01. Luminous Signaling Beacons Module.
  Two pilots, yellow and red.
• Voltage supply: 230 VAC. N-SEL01
• N-TIM05. Bell + Buzzer Module.
• Voltage supply: 230 VAC.
• Bell sound: 70 dB.
• Buzzer sound: 80 dB. N-TIM05
  5

Specifications

• The application “ATENG 11072” includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC. N-ALI02
  Single-phase supply hose with connecting plug.
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-ALI03. Variable Auxiliary Voltage Supply Module (24 Vac).
• Supply voltage (single-phase): 230 VAC, 1PH + N.
• Output voltage:
• Single-phase 24 VAC / 12 VAC.
• 24 VDC. N-ALI03
• 0 – 24 VDC through potentiometer.
• N-DET02. Gas Detector Module.
• Voltage supply: 12 VAC.
  Two alarm outputs.
  Acoustic alarm indicator.
  Status indicator light. N-DET02
  Test button.
• N-DET03. Built-in Power Supply Module (gas, flood detector).
• Voltage supply: 230 VAC.
• Output voltage: 12 VAC.
  Ground connection.
  N-DET03
  Service LED.
• N-DET12. Gas Solenoid Valve Module.
• Voltage supply: 230 VAC.
• Power: 14 W.
  Ground connection.
  Automatic reset. N-DET12
• Maximum pressure: 500 mBar.
• Closing time: 0.1s.
• N-DET36. Home Use Smoke Detector Module.
• Voltage supply: 230 VAC.
  Two alarm outputs.
  Alarm sound and status LED. N-DET36
• The application “ATENG 11075” includes the following elements:
• N-ALI02. Domestic Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC. N-ALI02
  Single-phase supply hose with connecting plug.
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
  6

Specifications

• N-CTR01. Basic Control Module.
• Two voltage inputs: 230 VAC.
• Frequency: 50 Hz.
  Five inputs.
  Five outputs per relay (20 outputs).
  One telephone connection input.
  N-CTR1
  One telephone connection output.
• N-VAR05. Tone Dialing Telephone Module.
  Standard telephone with tones.
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
  N-VAR05
