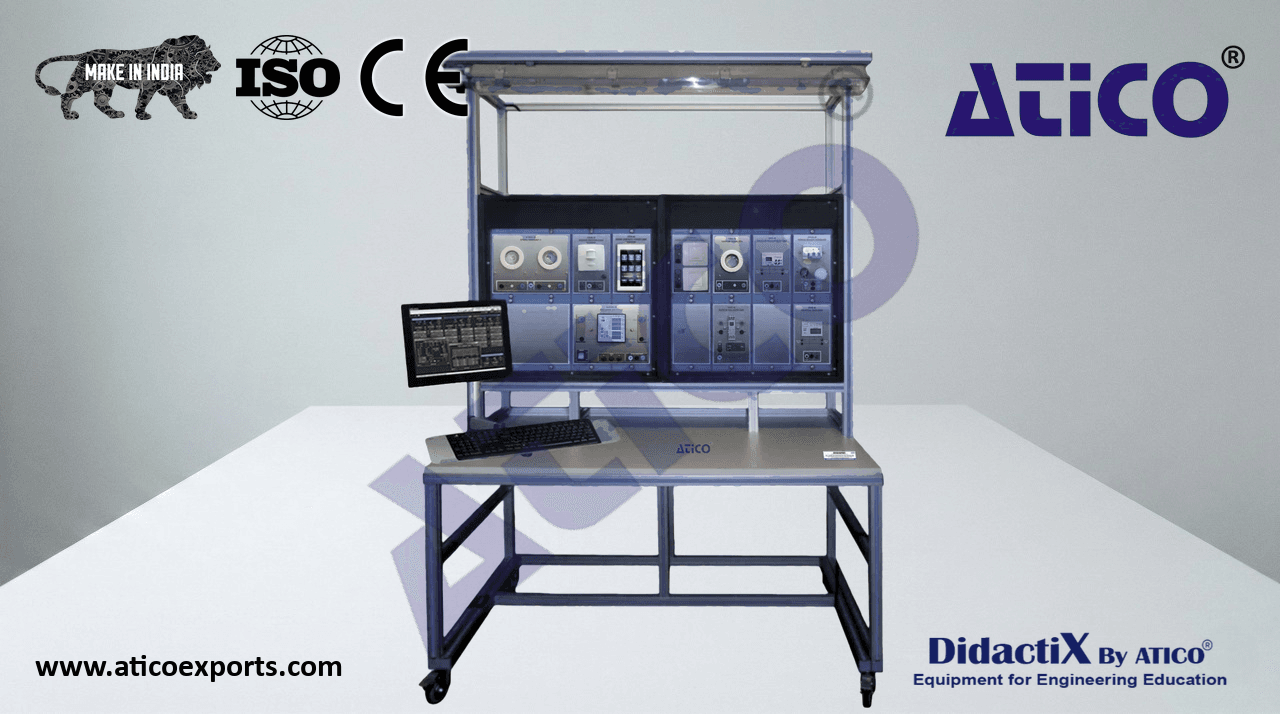

The DALI Installations Application, is to study the most important subjects related to DALI technology, giving special hands-on training on this field.
Technical Specifications
ATENG 11095 — DALI Installations Application
The Application includes the following modules:
N-ALI02. Domestic Main Power Supply.
Supply voltage (Single-Phase): 230 VAC, PH+N+G.
ON-OFF removable key.
Output Voltage Connections:
Two Single-Phase: 230 VAC.
Single-Phase supply wire connecting plug.
N-ALI02
Differential magnetothermal, 2 poles, 25A, 30 mA AC 6 KA.
N-DAC. DALI Controller Module.
DALI input controller.
4 independent inputs for floating contacts.
For connecting standard momentary-action switch or switches.
N-DAC
Adjustable operating mode and range via rotary selector.
Power supply via DALI line: 24 VDC.
N-LED1. LED Lamps Module.
Power supply: 230 VAC.
Typ. luminous flux category: 1,000 / 2,000 lm.
High system efficacy up to 90 lm/W at tp = 65 °C.
N-LED1
N-MSE1. DALI Motion sensor Module.
Component of the comfortDIM system (DALI standalone).
With ambient light dependent control and presence detection.
Simple group assignment via rotary switch.
Multiple MSensors possible in a group. N-MSE1
Lighting control and presence detection can be deactivated.
Individual adjustment of the parameters with configuration software.
Power supply via DALI line: 24VDC.
N-PUS1. DALI Push-buttons Module.
N-PUS1
2 x Push buttons.
N-SFU1. Staircase Module.
Relay contact: 16 A.
Timer 0 – 17 min.
N-SFU1
3
Specifications
N-LAM10. Two Halogen Lamps.
Nominal voltage: 230 VAC.
Nominal Power: 2x40W.
Additional and recommended modules:
N-LAM10
N-MED60. Network Analyzer.
ON-OFF switch.
Supply voltage: 230 VAC.
Input terminals: Input connection with the measurement point.
Output terminals: Output connection with the measurement point.
Digital outputs: Three digital outputs are used for pulses or alarms, or for combining both. N-MED60
Fuses: 3x10 A.
Network Analyzer Display. It shows:
Active, reactive and apparent power.
Active, reactive and apparent energies.
Lines and phase currents.
Line and phase voltages.
Frequencies.
Power Factor.
N-TCP1. DALI Touch Control Panel Module.
Control panels for DALI systems.
For controlling multiple luminaire groups and calling up preset lighting scenes.
Power supply via DALI line: 24 VDC.
Individual adjustment of the control panel and button assignments with configuration software.
N-TCP1
Setting group addresses or “broadcast”.
Setting scenes.
N-DKG. DALI-KNX Gateway.
Power supply: 230 VAC.
DC BUS: 24 VDC.
All necessary cables to realize the practical exercises are included. N-DKG
Cables and accessories, for normal operation.
