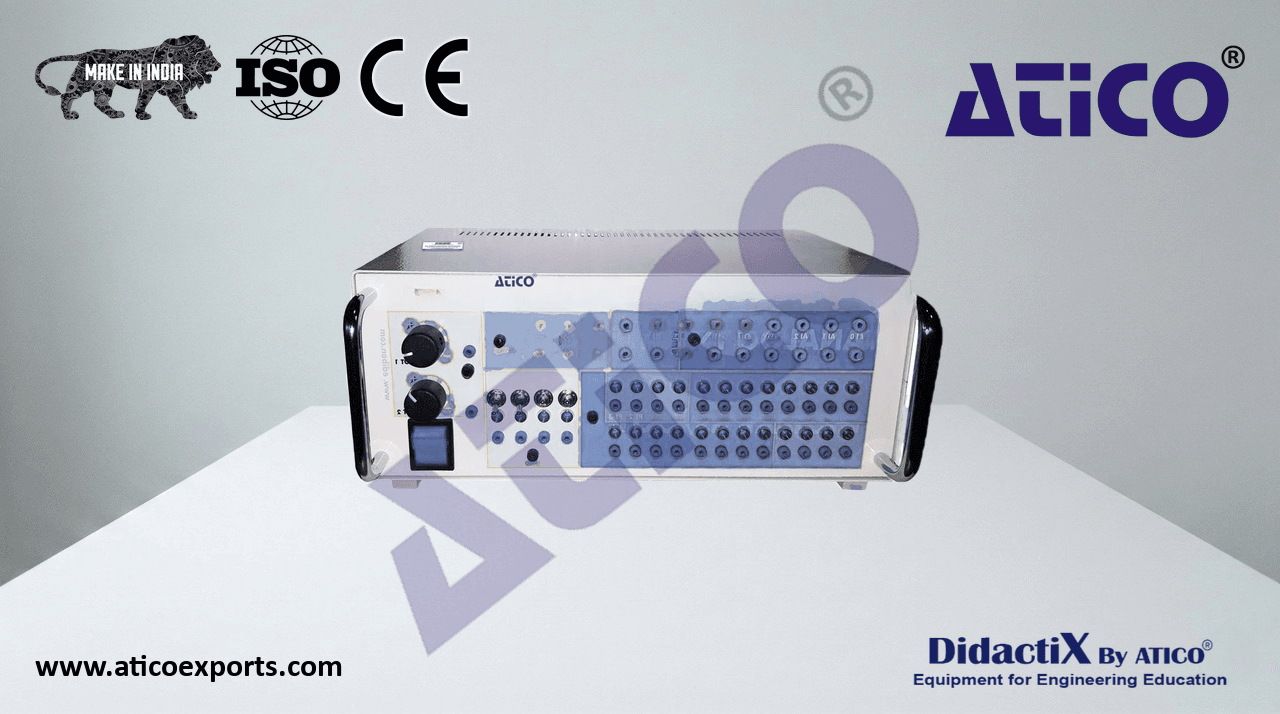

Data Acquisition and Virtual Instrumentation System (1,250,000 samples/s)

The Data Acquisition and Virtual Instrumentation System (speed: 1,250,000 samples/s), is a data acquisition and control system intended for electronics and communications equipment that does not include its own supervision, control, or data acquisition. This system allows the study of high-speed signals, enabling detailed analysis of fast and transient phenomena through virtual instrumentation in training and applied research applications.

ATENG 11275 — Data Acquisition and Virtual Instrumentation System (1,250,000 samples/s)

• 1 EDAS/VIS. Data Acquisition System and Virtual Instrumentation:
• 16 Analog inputs (1 block with 12 voltage channels and 1 block with 2 current channels
  (4 connections)).
  ATENG 11273, sampling velocity 250,000 samples per second.
  ATENG 11275, sampling velocity 1,250,000 samples per second.
  2 analog outputs.
  24 digital inputs/outputs, configurable as inputs or outputs, with 24 state LED indicators.
  These digital inputs/outputs are grouped in three ports of eight channels (P0, P1 and P3).
• 4 digital signal switches 0 - 5 V.
• 2 analog signal potentiometers 12 V.
  EDAS/VIS.
  Main ON/OFF switch.
  Data Acquisition
• Inside: internal power supply of 12 V and 5 V. Potentiometer.
  System and Virtual Instrumentation
• 2 DAB. Data Acquisition Board:
  The Data Acquisition board is part of the SCADA system.
• For ATENG 11275 Version Data Acquisition System and Virtual Instrumentation (speed:
• 1,250,000 samples/s):
  PCI Data acquisition board (National Instruments) to be placed in a computer slot. Bus PCI.
• Analog input:
  Number of channels= 16 single-ended or 8 differential. Resolution=16 bits, 1 in 65536.
• Sampling rate up to: 1,250,000 S/s (samples per second). Input range (V)= ±10V.
  Data transfers=DMA, interrupts, programmed I/0. Number of DMA channels=6.
• Analog output:
• Number of channels=2. Resolution=16 bits, 1 in 65536. Max. output rate up to: 900 KS/s.
• Output range(V)= ±10V. Data transfers=DMA, interrupts, programmed I/0.
• Digital Input/Output: Number of channels=24 inputs/outputs. Port 0 up to 8 MHz.
• Timing: Counter/timers=2. Resolution: Counter/timers: 32 bits. DAB
• For ATENG 11273 Version Data Acquisition System and Virtual Instrumentation (speed:
• 250,000 samples/s):
• Sampling rate up to: 250,000 S/s (samples per second).
• Analog output: Max. output rate up to: 10 KS/s.
• Digital Input/Output: Number of channels=24 inputs/outputs. Port 0 up 1 MHz.
• Rest of characteristics are the same than EDAS/VIS 1.25 Version.
  The Data Acquisition board model may change at any moment, providing the same or better
  features than those required for the unit.
• 3 EDAS/VIS/CCSOF. Computer Control + Data Acquisition + Data Management Software:
  Compatible with actual Windows operating systems. Amicable graphical frame.
  Configurable software allowing the temporal/frequency representation of the different inputs
  and outputs. Visualization of a voltage of the circuits on the computer screen.
  It allows data store in a file, print screens and reports of the signals at any time.
  Measurement, analysis, visualization, representation and report of results.
• Set of virtual instruments:
• Oscilloscope:
• Channels: 12 simultaneous. Maximum input voltage: 10 V.
  All 12 input channels could be scaled to compare signal with different voltage levels.
• Maximum sampling velocity: 1000 samples per second.
  “Math Menu” with operations as add, rest, multiplication and division, between any of the 12
  oscilloscope channels.
• Function generator:
  Two independent signal generators, for sinusoidal, triangular, sawtooth and square.
• Channels: 2 (allowing working simultaneously). Maximum output voltage: 10 V.
• Maximum output rate: 1000 samples per second.
  It includes a graph where an output signal for each channel is shown.
• Spectrum analyzer:
• Channels: 12 (simultaneous). Maximum voltage: 10 V. Digital spectrum
• analyzer: based on the FFT.
• Maximum sampling velocity: 1000 samples per second.
• Multimeter:
• Voltmeter, channels: 12 (simultaneous). Maximum voltage: 10 V RMS.
• Ammeter, channels: 2 (simultaneous). Maximum ampere: 500 mA RMS per channel.
  Transient analyzer.
• Logic analyzer: EDAS/VIS/CCSOF
• Number of input channels: 8. TTL Voltage level.
• Clock source: 2 different sources.
  This instrument allows receiving as far as 8 digital signal simultaneously.
• Logic generator:
• Number of transmission channels: 8. TTL voltage level.
  This instrument allows generating up to 8 digital simultaneous signals.
  4 Cables and Accessories, for normal operation.
• 5 Manuals:
• This unit is supplied with 7 manuals: Required Services, Assembly and Installation, Control Software, Starting-up, Safety, Maintenance
  & Practices Manuals.
