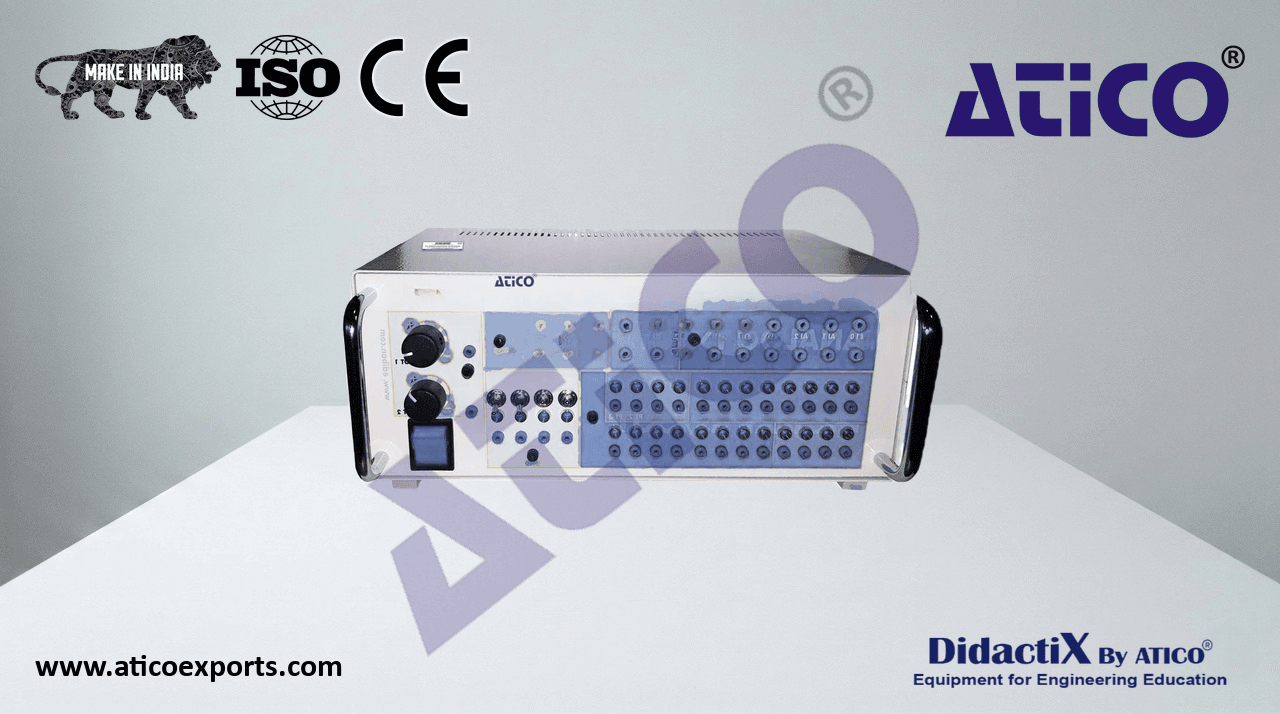

Data Acquisition and Virtual Instrumentation System (speed: 250,000 samples/s)

The Data Acquisition and Virtual Instrumentation System (speed: 250,000 samples/s), is a data acquisition and control system intended for electronics and communications equipment that does not include its own supervision, control, or data acquisition. This system allows the study and analysis of analog and digital signals, integrating virtual instrumentation and providing a flexible platform for technical training and applied research.

ATENG 11273 — Data Acquisition and Virtual Instrumentation System (speed: 250,000 samples/s)

• 1 EDAS/VIS. Data Acquisition System and Virtual Instrumentation:
• 16 Analog inputs (1 block with 12 voltage channels and 1 block with 2 current channels
  (4 connections)).
  ATENG 11273, sampling velocity 250,000 samples per second.
  ATENG 11275, sampling velocity 1,250,000 samples per second.
  2 analog outputs.
  24 digital inputs/outputs, configurable as inputs or outputs, with 24 state LED indicators.
  These digital inputs/outputs are grouped in three ports of eight channels (P0, P1 and P3).
• 4 digital signal switches 0 - 5 V.
• 2 analog signal potentiometers 12 V.
  EDAS/VIS.
  Main ON/OFF switch.
  Data Acquisition
• Inside: internal power supply of 12 V and 5 V. Potentiometer.
  System and Virtual Instrumentation
• 2 DAB. Data Acquisition Board:
  The Data Acquisition board is part of the SCADA system.
• For ATENG 11275 Version Data Acquisition System and Virtual Instrumentation (speed:
• 1,250,000 samples/s):
  PCI Data acquisition board (National Instruments) to be placed in a computer slot. Bus PCI.
• Analog input:
  Number of channels= 16 single-ended or 8 differential. Resolution=16 bits, 1 in 65536.
• Sampling rate up to: 1,250,000 S/s (samples per second). Input range (V)= ±10V.
  Data transfers=DMA, interrupts, programmed I/0. Number of DMA channels=6.
• Analog output:
• Number of channels=2. Resolution=16 bits, 1 in 65536. Max. output rate up to: 900 KS/s.
• Output range(V)= ±10V. Data transfers=DMA, interrupts, programmed I/0.
• Digital Input/Output: Number of channels=24 inputs/outputs. Port 0 up to 8 MHz.
• Timing: Counter/timers=2. Resolution: Counter/timers: 32 bits. DAB
• For ATENG 11273 Version Data Acquisition System and Virtual Instrumentation (speed:
• 250,000 samples/s):
• Sampling rate up to: 250,000 S/s (samples per second).
• Analog output: Max. output rate up to: 10 KS/s.
• Digital Input/Output: Number of channels=24 inputs/outputs. Port 0 up 1 MHz.
• Rest of characteristics are the same than EDAS/VIS 1.25 Version.
  The Data Acquisition board model may change at any moment, providing the same or better
  features than those required for the unit.
• 3 EDAS/VIS/CCSOF. Computer Control + Data Acquisition + Data Management Software:
  Compatible with actual Windows operating systems. Amicable graphical frame.
  Configurable software allowing the temporal/frequency representation of the different inputs
  and outputs. Visualization of a voltage of the circuits on the computer screen.
  It allows data store in a file, print screens and reports of the signals at any time.
  Measurement, analysis, visualization, representation and report of results.
• Set of virtual instruments:
• Oscilloscope:
• Channels: 12 simultaneous. Maximum input voltage: 10 V.
  All 12 input channels could be scaled to compare signal with different voltage levels.
• Maximum sampling velocity: 1000 samples per second.
  “Math Menu” with operations as add, rest, multiplication and division, between any of the 12
  oscilloscope channels.
• Function generator:
  Two independent signal generators, for sinusoidal, triangular, sawtooth and square.
• Channels: 2 (allowing working simultaneously). Maximum output voltage: 10 V.
• Maximum output rate: 1000 samples per second.
  It includes a graph where an output signal for each channel is shown.
• Spectrum analyzer:
• Channels: 12 (simultaneous). Maximum voltage: 10 V. Digital spectrum
• analyzer: based on the FFT.
• Maximum sampling velocity: 1000 samples per second.
• Multimeter:
• Voltmeter, channels: 12 (simultaneous). Maximum voltage: 10 V RMS.
• Ammeter, channels: 2 (simultaneous). Maximum ampere: 500 mA RMS per channel.
  Transient analyzer.
• Logic analyzer: EDAS/VIS/CCSOF
• Number of input channels: 8. TTL Voltage level.
• Clock source: 2 different sources.
  This instrument allows receiving as far as 8 digital signal simultaneously.
• Logic generator:
• Number of transmission channels: 8. TTL voltage level.
  This instrument allows generating up to 8 digital simultaneous signals.
  4 Cables and Accessories, for normal operation.
• 5 Manuals:
• This unit is supplied with 7 manuals: Required Services, Assembly and Installation, Control Software, Starting-up, Safety, Maintenance
  & Practices Manuals.
