ATENG 11276 — Data Acquisition System / Virtual Instrumentation System with WI-FI communication
The “ATENG 11276” system includes hardware (DAIB, Data Acquisition Interface-Box) and software (EDAS/VIS-SOF, Data Acquisition and
Virtual Instrumentation Software).
- DAIB. Data Acquisition Interface-Box:
- Metal box. Dimensions: 310 x 220 x 145 mm approx.
- Front panel:
6 analog inputs.
4 analog outputs.
24 digital inputs/outputs, configurable as inputs or outputs, with LED state indicators.
- 4 digital signal switches 0 - 5 V.
- 2 analog signal potentiometers ± 12 V.
Main ON/OFF switch.
- Inside: internal power supply of 12 and 5 V. Potentiometer.
- Back panel: power supply connector. USB connector (to connect with the PC).Antenna for the WI-FI communication.
Connection cables.
- EDAS/VIS-SOF. Data Acquisition and Virtual Instrumentation Software:
Compatible con los sistemas operativos Windows actuales. Entorno gráfico amigable.
Compatible with current Windows operating systems. User-friendly graphical environment.
Configurable software allowing the time/frequency representation of the inputs and outputs.
Visualization of the circuits voltage on the computer screen.
It allows data storage in a file. Screens and reports of the signals can
be printed at any time.
Measurement, analysis, visualization, representation and report of
results.

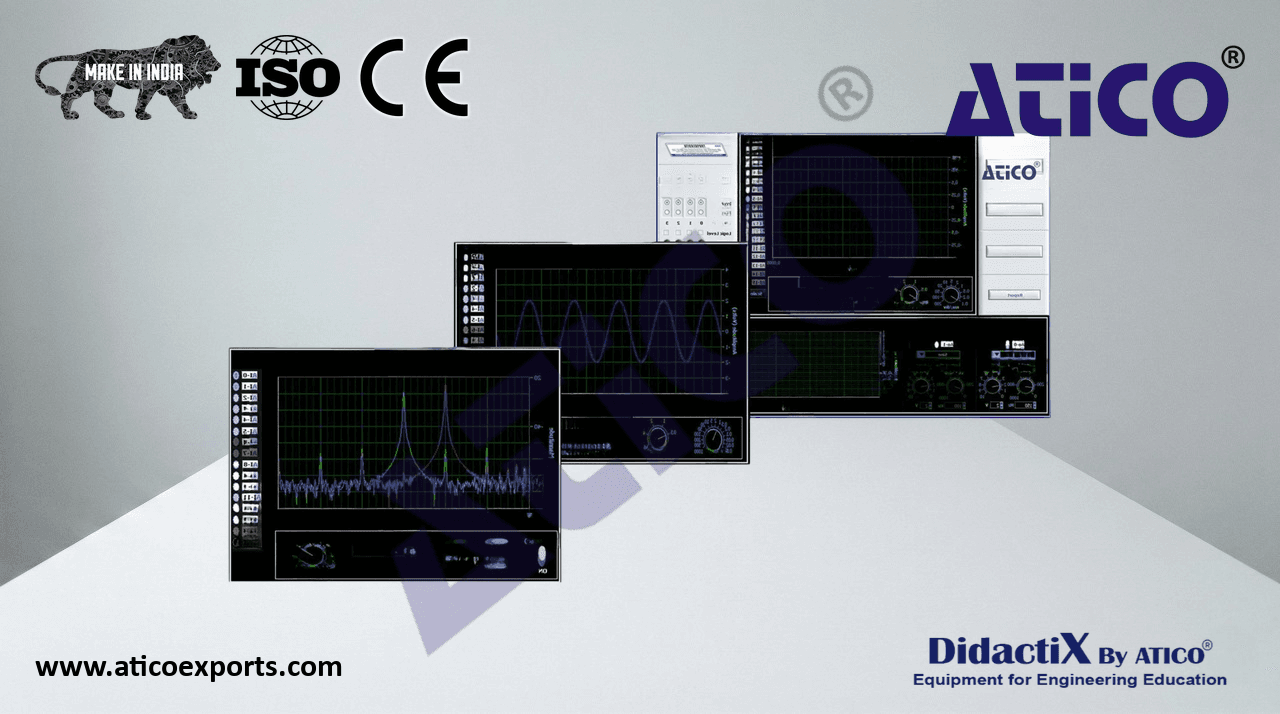

- Set of Virtual Instruments:
- Oscilloscope:
- Maximum input voltage: ±10V.
The channels can be scaled to compare signals with different
voltage levels.
“Math Menu” with Addition, Subtraction, Multiplication and Division
operations.
- Function Generator:
- Signal generators: sine, triangular, sawtooth and square.
- Maximum output voltage: ±10V.
It includes a chart where the output signal for each channel is
shown.
- Spectrum Analyzer:
- Maximum voltage: ±10V. Digital spectrum analyzer: based on the FFT.
- Multimeter:
- Voltmeter. Maximum voltage: ±10V RMS.
- Ammeter. Maximum amperes: 500 mA RMS per channel.
