DC Brushless Motor Application

The DC Brushless Motor Application, for the study of the main operations performed in the industrial field with this type of electrical machines.

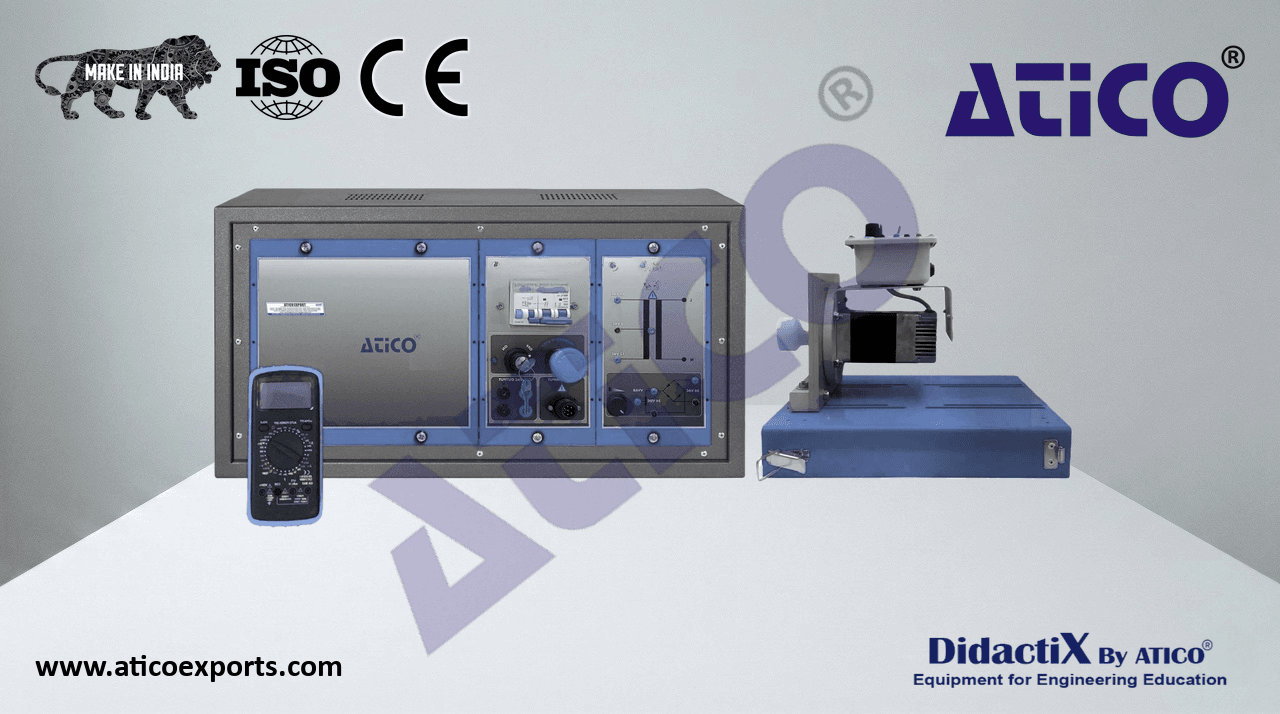

ATENG 11164 — DC Brushless Motor Application

• The application “ATENG 11164” includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
  ON/OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  N-ALI02
  Single-phase supply hose with connecting plug.
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-ALI03. AC Auxiliary Power Supply (24 Vac) Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
• Output voltage:
• Single-phase 24 VAC / 12 VAC.
• 24 VDC.
  N-ALI03
• 0 – 24 VDC through potentiometer.
• MED65. Digital Multimeter.
• This digital multimeter of about 3 ½ digits, with double-jack ending cables of about 4 mm to
  facilitate interconnections.
• With this digital multimeter we will be able to measure:
  Voltage.
  Current. MED65
  Resistance.
  Capacitors capacity.
  Temperature.
• EMT18. DC Brushless Motor.
• Nominal power: 80 W.
• Armature voltage: 24 VDC.
• Armature current: 3,3 A.
• Speed: 3250 rpm.
  EMT18
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
