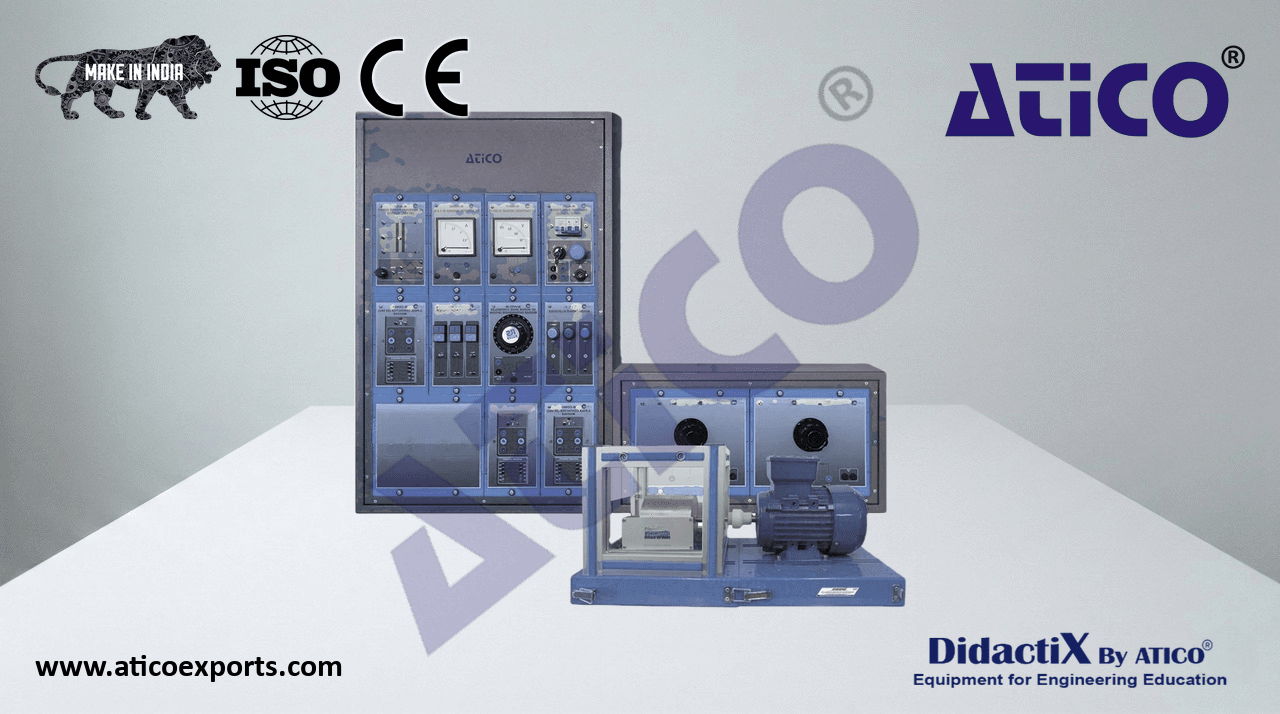

DC Electrical Motors Application

The DC Electrical Motors Application, has been developed for theoretical and practical training on the most important operations carried out with different DC electric motors such as the DC motor with independent excitation, the DC motor with series excitation, the DC motor with shunt excitation, the DC motor with compound excitation and the DC motor with permanent magnets.

ATENG 11165 — DC Electrical Motors Application

• The “ATENG 11165” application includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
• Supply voltage (single–phase): 230 VAC, 1PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Two single-phase: 230 VAC.
  Single-phase supply hose with connecting plug. N-ALI02
• Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-ALI03. AC Auxiliary Power Supply (24 Vac) Module.
• Voltage supply (single-phase): 230 VAC, 1PH + N.
• Output voltage:
• Single–Phase 24 VAC / 12 VAC.
• 24 VDC.
  N-ALI03
• 0 – 24 VDC through potentiometer.
• N-PUL48. Three Double Chamber Push-Buttons Module.
  Two independent chambers.
• Nominal voltage: 24 VAC.
  Three double chamber push-buttons (green and red).
• Contacts: N-PUL48
  Three Normally Open Contacts (NO) for green switch.
  Three Normally Close Contacts (NC) for red switch.
• N-CON01. Three-Pole Contactor Module (24 VAC). (3 units).
• Nominal voltage for power contacts: 400 VAC.
• Nominal voltage for control contacts: 24 VAC.
• Nominal voltage for the control coil: 24 VAC.
• Contacts: N-CON01
  Three-phase Normally Open Contact (NO) for power circuit.
  Three Normally Open Contacts (NO) for control circuit.
  Two Normally Close Contacts (NC) for control circuit.
• N-VVCC/M. DC Motor Speed Controller (Intermediate option) Module.
• Supply voltage: 230 VAC.
  N-VVCC/M
• Variable output voltage: 0 – 300 VDC.
• Fuse: 2 A.
• N-LAM02. Auxiliary Lamps Module.
• Nominal voltage: 24 VAC.
  Three lamps (red, yellow and green). N-LAM02
• FLYW. Flywheel.
• Weight: 2 kg.
• Recommended maximum speed: 4000 rpm.
• Moment of inertia: 0.0025 kgm².

FLYW

3

Specifications

• N-MED17. DC Voltimeter Module (0-200 V).
• Measurement range: 0 – 200 VDC.
• Terminals:
  Measurement terminals.
  N-MED17
• N-MED05. DC Amperimeter Module (0-1.5 A).
• Measurement range: 0 – 200 VDC.
• Terminals:
  Measurement terminals.
• MED65. Advanced Digital Multimeter. N-MED05
• Digital multimeter with 3 ½ digits, with 4 mm double connector termination cables to facilitate
  interconnections.
• With this digital multimeter we can measure:
  Voltage.
  Current.
  MED65
  Resistance.
  Capacitors capacity.
  Temperature.
• Required elements (at least one) (Not included):
• EMT1-DC-KIT: DC Independent Excitation Motor-Generator Study Kit.
• EMT1. DC Independent excitation motor-Generator.
• Nominal power: 250 W.
• Armature voltage: 200 VDC.
• Excitation voltage: 190 VDC.
• Armature current: 1.5 A.
  EMT1
• Excitation current: 0.3 A.
• Speed: 3000 rpm.
• Shaft height: 71 mm.
• N-REV. Single Phase Variable Resistor. (2 units).
• Variable resistor: 150 Ohm.
• Maximum power: 500 W.
  Potentiometer.
• Terminals:
  N-REV
  Three terminals to choose all resistance or variable resistance.
• Fuse: 2 A.
• EMT2-DC-KIT: DC Series Excitation Motor-Generator Study Kit.
• EMT2. DC Series Excitation Motor-Generator.
• Nominal power: 300 W.
• Armature voltage: 200 VDC.
• Armature current: 1.5 A.
• Speed: 7500 rpm.
• Shaft height: 71 mm. EMT2
  4

Specifications

• N-REV. Single Phase Variable Resistor.
• Variable resistor: 150 Ohm.
• Maximum power: 500 W.
  Potentiometer.
• Terminals:
  Three terminals to choose all resistance or variable resistance. N-REV
• Fuse: 2 A.
• EMT3-DC-KIT: DC Shunt Excitation Motor-Generator Study Kit.
• EMT3. DC Shunt excitation Motor-Generator.
• Nominal power: 300 W.
• Nominal voltage: 200 VDC.
• Nominal current: 1.5A.
• RPM: 3400 rpm.
• Shaft height: 71 mm.
  EMT3
• N-REV. Single Phase Variable Resistor.
• Variable resistor: 150 Ohm.
• Maximum power: 500 W.
  Potentiometer.
• Terminals:
  Three terminals to choose all resistance or variable resistance. N-REV
• Fuse: 2 A.
• EMT4-DC-KIT: DC Compound Excitation Motor-Generator Study Kit.
• EMT4. DC Compound Excitation Motor-Generator.
• Nominal power: 250 W.
• Armature voltage: 200 VDC.
• Armature current: 1.5A.
• Excitation current: 0.3 A.
• Speed: 3000 rpm. EMT4
• Shaft height: 71 mm.
• N-REV. Single Phase Variable Resistor. (2 units).
• Variable resistor: 150 Ohm.
• Maximum power: 500 W.
  Potentiometer.
• Terminals:
  Three terminals to choose all resistance or variable resistance. N-REV
• Fuse: 2 A.
• EMT5-DC-KIT: DC Shunt/Series/Compound Excitation Motor-Generator Study Kit.
• EMT5. DC Shunt/Series/Compound Excitation Motor-Generator.
• Nominal power: 300 W.
• Armature voltage: 200 VDC.
• Excitation voltage: 230 VDC.
• Armature current: 1.5A.
• Excitation current: 0.4 A. EMT5
• Speed: 3400 / 7500 rpm.
• Shaft height: 71 mm.
  5

Specifications

• N-REV. Single Phase Variable Resistor. (2 units).
• Variable resistor: 150 Ohm.
• Maximum power: 500 W.
  Potentiometer.
• Terminals:
  Three terminals to choose all resistance or variable resistance. N-REV
• Fuse: 2 A.
• EMTGEN-DC-KIT: Independent Excitation DC Generator Study Kit.
• . 3PH Squirrel-Cage Motor.
• Nominal power: 370 W.
• Nominal voltage: 3 x 230 / 400 VAC Δ/Y.
• Frequency: 50 / 60 Hz.
• Number of poles: 2.
• Speed: 2730 rpm.
• Nominal current: 1.67 / 0.97 A.
• Shaft height: 71 mm.
• N-REV. Single Phase Variable Resistor.
• Variable resistor: 150 Ohm.
• Maximum power: 500 W.
  Potentiometer.
• Terminals:
  Three terminals to choose all resistance or variable resistance. N-REV
• Fuse: 2 A.
• N-REF. Single Phase Fixed Resistor.
• Resistor value: 150 Ohm.
• Maximum power: 500 W.
• Selector:
• Position 0: Circuit opened.
• Position 1: Circuit closed.
  N-REF
• Fuse: 2 A.
• N-VVCA/M. AC Motor Speed Controller (Intermediate option).
  ON / OFF Switch.
• Supply voltage: 230 VAC.
• Nominal power: 750 W.
• PWM output voltage connections:
• Three-phases: 230 VAC.
  N-VVCA/M
  10 K, potentiometer for the induction motor control speed.
  Setting and visualization display of the machine parameters.
• EMT1. DC Independent Excitation Motor-Generator.
• Nominal power: 250 W.
• Armature voltage: 200 VDC.
• Excitation voltage: 190 VDC.
• Armature current: 1.5 A.
• Excitation current: 0.3 A.
  EMT1
• Speed: 3000 rpm.
• Shaft height: 71 mm.
  6

Specifications

• EMT15. DC Permanent Magnet Motor.
• Nominal power: 300 W.
• Nominal voltage: 200 VDC.
• Nominal current: 0.5 A.
• Speed: 3400 rpm.
  EMT15
