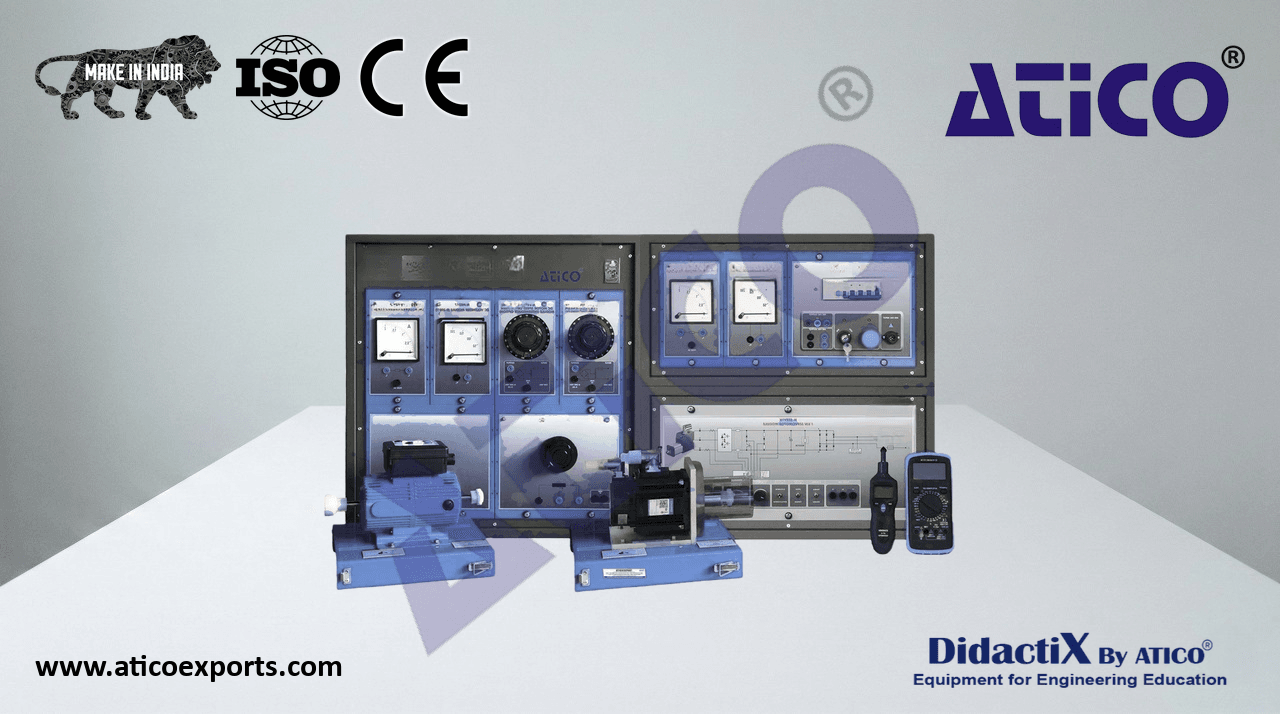

The DC Electrical Motors Applications, have been to carry out electrical/mechanical tests for a great variety of DC motors.
Technical Specifications
ATENG 11152 — DC Electrical Motors Applications
The applications “ATENG 11152” includes the following elements:
N-ALI01. Industrial Main Power Supply Module.
Supply voltage: 400 VAC, 3PH + N.
ON/OFF removable key.
Output voltage connections:
Three-phase + Neutral: 400 VAC.
Single-phase: 230 VAC.
N-ALI01
Three-phase supply hose with IP44 3PN+E 32 A 400 V connecting plug.
Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
Emergency stop push-button.
N-MED17. DC Voltmeter Module (0-200 V).
Measurement range: 0 – 200 VDC.
Terminals:
Measurement terminals.
N-MED17
N-MED05. DC Ammeter Module (0-1.5 A).
Measurement range: 0 – 2 VDC.
Terminals:
Measurement terminals.
Fuse: 3 A.
N-MED05
MED65. Digital Multimeter.
Digital multimeter with 3 ½ digits, with 4 mm double connector termination cables to facilitate
interconnections.
With this digital multimeter we will be able to measure:
Voltage.
Current.
Resistance.
MED65
Capacitors capacity.
Temperature.
N-SERV1K. 1 kW Servomotor Module.
Dynamic and static operating regime in four quadrants.
Speed and torque signals.
Power supply terminals: 3 x 400 VAC.
Frequency: 50/60 Hz.
Nominal power: 1 kW.
Maximum power: 3 kW.
Maximum speed: 5000 rpm.
N-SERV1K
Nominal torque: 3.18 Nm.
Maximum torque: 9.55 Nm.
Temperature control.
Speed control potentiometer.
Torque control potentiometer.
Mode selection switch: torque/speed control.
Motor turning reversal switch.
TECNEL/TM. Hand Tachometer.
Two AA batteries.
Three positions switch to choice the measurement method.
Speed recording push-button.
Speed measurement push-button.
Disassemble pieces for different shafts.
Speed digital display. TECNEL/TM
3
Specifications
Required elements (at least one) (Not included):
DCEMT-K1. DC Independent Excitation Motor-Generator Kit.
EMT1. DC Independent Excitation Motor-Generator.
Nominal power: 250 W.
Armature voltage: 200 VDC.
Excitation voltage: 190 VDC.
Armature current: 1.5 A.
Excitation current: 0.3 A. EMT1
Speed: 3000 rpm.
Shaft height: 71 mm.
N-REV. Single-Phase Variable Resistor Module.
Variable resistor of 150 Ohm.
Maximum power: 500 W.
Potentiometer.
Terminals: N-REV
Three terminals to choose all resistance or variable resistance.
Fuse: 2 A.
N-VVCC/M. DC Motor Speed Controller (Intermediate Option) Module (2 units).
Supply voltage: 230 VAC.
Variable output voltage: 0 – 300 VDC.
N-VVCC/M
Fuse: 2 A.
N-MED17. DC Voltmeter Module (0-200 V).
Measurement range: 0 – 200 VDC.
Terminals:
Measurement terminals.
N-MED17
N-MED05. DC Ammeter Module (0-1.5 A).
Measurement range: 0 – 2 VDC.
Terminals:
Measurement terminals.
Fuse: 3 A.
N-MED05
DCEMT-K2. DC Series Excitation Motor-Generator Kit.
EMT2. DC Series Excitation Motor-Generator.
Nominal power: 300 W.
Armature voltage: 200 VDC.
Armature current: 1.5 A.
Speed: 7500 rpm.
EMT2
Shaft height: 71 mm.
N-REV. Single-Phase Variable Resistor Module.
Variable resistor of 150 Ohm.
Maximum power: 500 W.
Potentiometer.
Terminals:
Three terminals to choose all resistance or variable resistance. N-REV
Fuse: 2 A.
4
Specifications
N-VVCC/M. DC Motor Speed Controller (Intermediate Option) Module.
Supply voltage: 230 VAC.
Variable output voltage: 0 – 300 VDC.
Fuse: 2 A.
DCEMT-K3: DC Shunt Excitation Motor-Generator Kit. N-VVCC/M
EMT3. DC Shunt Excitation Motor-Generator.
Nominal power: 300 W.
Nominal voltage: 200 V.
Nominal current: 1.5 A.
Speed: 3400 rpm.
Shaft height: 71 mm.
EMT3
N-REV. Single-Phase Variable Resistor Module.
Variable resistor of 150 Ohm.
Maximum power: 500 W.
Potentiometer.
Terminals:
Three terminals to choose all resistance or variable resistance.
N-REV
Fuse: 2 A.
N-VVCC/M. DC Motor Speed Controller (Intermediate Option) Module.
Supply voltage: 230 VAC.
Variable output voltage: 0 – 300 VDC.
Fuse: 2 A.
N-VVCC/M
N-MED17. DC Voltmeter Module (0-200 V).
Measurement range: 0 – 200 VDC.
Terminals:
Measurement terminals.
N-MED05. DC Ammeter Module (0-1.5 A). N-MED17
Measurement range: 0 – 2 VDC.
Terminals:
Measurement terminals.
Fuse: 3 A.
DCEMT-K4: DC Compound Excitation Motor-Generator Kit. N-MED05
EMT4. DC Compound Excitation Motor-Generator.
Nominal power: 250 W.
Armature voltage: 200 VDC.
Armature current: 1.5 A
Excitation current: 0.3 A.
Speed: 3000 rpm.
EMT4
Shaft height: 71 mm.
N-REV. Single-Phase Variable Resistor Module.
Variable resistor of 150 Ohm.
Maximum power: 500 W.
Potentiometer.
Terminals:
Three terminals to choose all resistance or variable resistance.
N-REV
Fuse: 2 A.
5
Specifications
N-VVCC/M. DC Motor Speed Controller (Intermediate Option) Module.
Supply voltage: 230 VAC.
Variable output voltage: 0 – 300 VDC.
Fuse: 2 A.
N-MED17. DC Voltmeter Module (0-200 V). N-VVCC/M
Measurement range: 0 – 200 VDC.
Terminals:
Measurement terminals.
N-MED05. DC Ammeter Module (0-1.5 A).
Measurement range: 0 – 2 VDC. N-MED17
Terminals:
Measurement terminals.
Fuse: 3 A.
DCEMT-K5: DC Shunt/Series/Compound Excitation Motor-Generator Kit.
N-MED05
EMT5. DC Shunt/Series/Compound Excitation Motor-Generator.
Nominal power: 300 W.
Armature voltage: 200 VDC.
Excitation voltage: 230 VDC.
Armature current: 1.5 A.
Excitation current: 0.4 A. EMT5
Speed: 3400 / 7500 rpm.
Shaft height: 71 mm.
N-REV. Single-Phase Variable Resistor Module.
Variable resistor of 150 Ohm.
Maximum power: 500 W.
Potentiometer.
Terminals:
Three terminals to choose all resistance or variable resistance. N-REV
Fuse: 2 A.
N-VVCC/M. DC Motor Speed Controller (Intermediate Option) Module (2 units).
