The Application of DC Generator is designed for the study of the main operations performed in the industrial field with DC Generators.
Technical Specifications

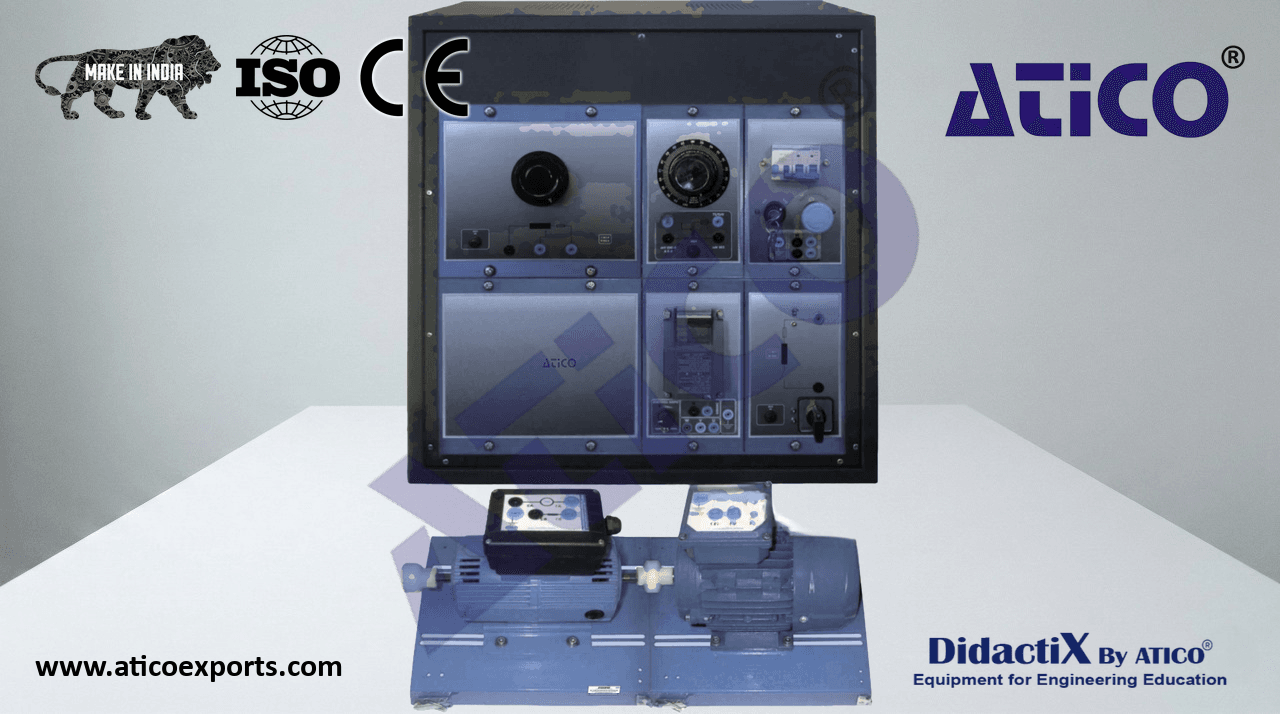

ATENG 11161 — DC Generators Application
The application “ATENG 11161” includes the following elements:
N-ALI02. Domestic Main Power Supply Module.
Supply voltage (single-phase): 230 VAC, 1PH + N.
ON / OFF removable key.
Output voltage connections:
Two single-phase: 230 VAC.
N-ALI02
Single-shase supply hose connecting plug.
Differential magnetothermal, 2 poles, 25 A, 30 mA AC, 6 KA.
Emergency stop push-button.
N-VVCC/M. DC Motors Speed Controller (Intermediate option).
Supply voltage: 230 VAC.
Variable output voltage: 0 – 300 VDC.
Fuse: 2 A.
N-VVCC/M
N-REV. Single-Phase Variable Resistor Module.
Variable resistor: 150 Ohm.
Maximum power: 500 W.
Potentiometer.
Terminals:
N-REV
Three terminals to choose all resistance or variable resistance.
Fuse: 2 A.
N-REF. Single-Phase Fixed Resistor Module.
Resistor value: 150 Ohm.
Maximum power: 500 W.
Selector:
Position 0: Circuit opened.
N-REF
Position 1: Circuit closed.
Fuse: 2 A.
EMT1. DC Independent Excitation Motor-Generator.
Nominal power: 250 W.
Armature voltage: 200 VDC.
Excitation voltage: 190 VDC.
Armature current: 1.5 A.
EMT1
Excitation current: 0.3 A.
Speed: 3000 rpm.
Shaft height: 71 mm.
N-VVCA/M. AC Motors Speed Controller Module (intermediate option).
ON / OFF Switch.
Supply voltage: 230 VAC.
Nominal power: 750 W.
PWM output voltage connections:
Three-phases: 230 VAC. N-VVCA/M
10 K, potentiometer for the induction motor control speed.
Setting and visualization display of the machine parameters.
