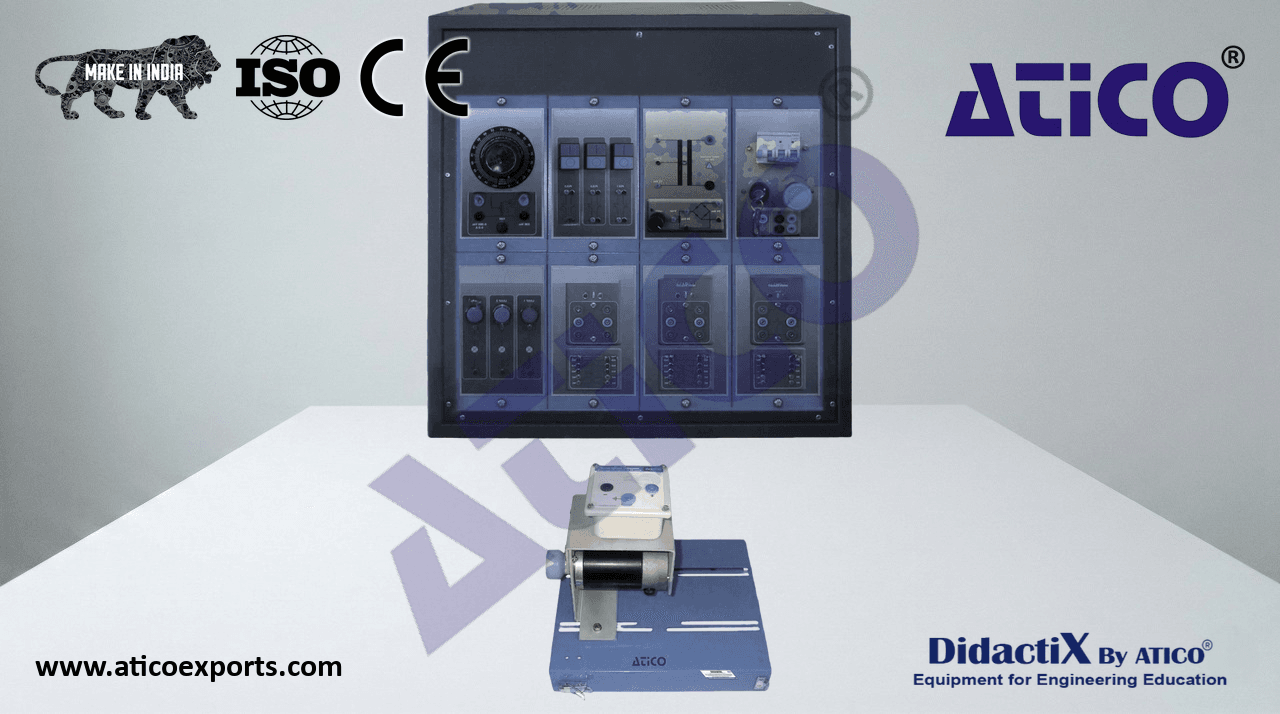

The Application of DC Permanent Magnet Motors is designed for the study of the main operations performed in the industrial field with DC Permanent Magnet Motors.
Technical Specifications
ATENG 11162 — DC Permanent Magnet Motors Application
The application includes the following modules:
N-ALI02. Domestic Power Supply Module.
Supply voltage (Single-Phase): 230 VAC, PH+N+G.
ON-OFF removable key.
N-ALI02
Output Voltage Connections:
Two Single-Phase: 230 VAC.
Single-Phase supply hose connecting plug.
Differential magnetothermal, 2 poles, 25 A, 30 mA AC 6 KA.
N-PUL48. 3 Double Chamber Push-Buttons.
Two independent chambers.
Nominal voltage: 24 VAC.
Three double chamber push-buttons (green and red). N-PUL48
Contacts:
Three Normally Open Contacts (NO) for green switch.
Three Normally Close Contacts (NC) for red switch.
Ground terminal.
N-LAM02. Auxiliary Lamps.
Nominal voltage: 24 VAC.
Three lamps (red, yellow and green).
Ground terminal. N-LAM02
N-CON01. 3-pole Contactor (24 VAC). (3 units)
Nominal voltage for power contacts: 400 VAC.
Nominal voltage for control contacts: 24 VAC.
Nominal voltage for the control coil: 24 VAC. N-CON01
Contacts:
One three-phase Normally Open Contact (NO) for power circuit.
Three Normally Open Contacts (NO) for control circuit.
Two Normally Close Contacts (NC) for control circuit.
Ground terminal.
3
Specifications
N-ALI03. AC Auxiliary Power Supply.
Supply voltage (Single-Phase): 230 VAC PH+N+G.
Output voltage:
Single-Phase 24 VAC/12 VAC.
N-ALI03
24 VDC.
0-24 VDC through potentiometer.
N-VVCC/M. DC Motor Speed Controller (Intermediate option).
