The Shunt Excitation Motor Aplication to study the electrical characteristics and mechanical parameters of shunt wound DC motors.
Technical Specifications

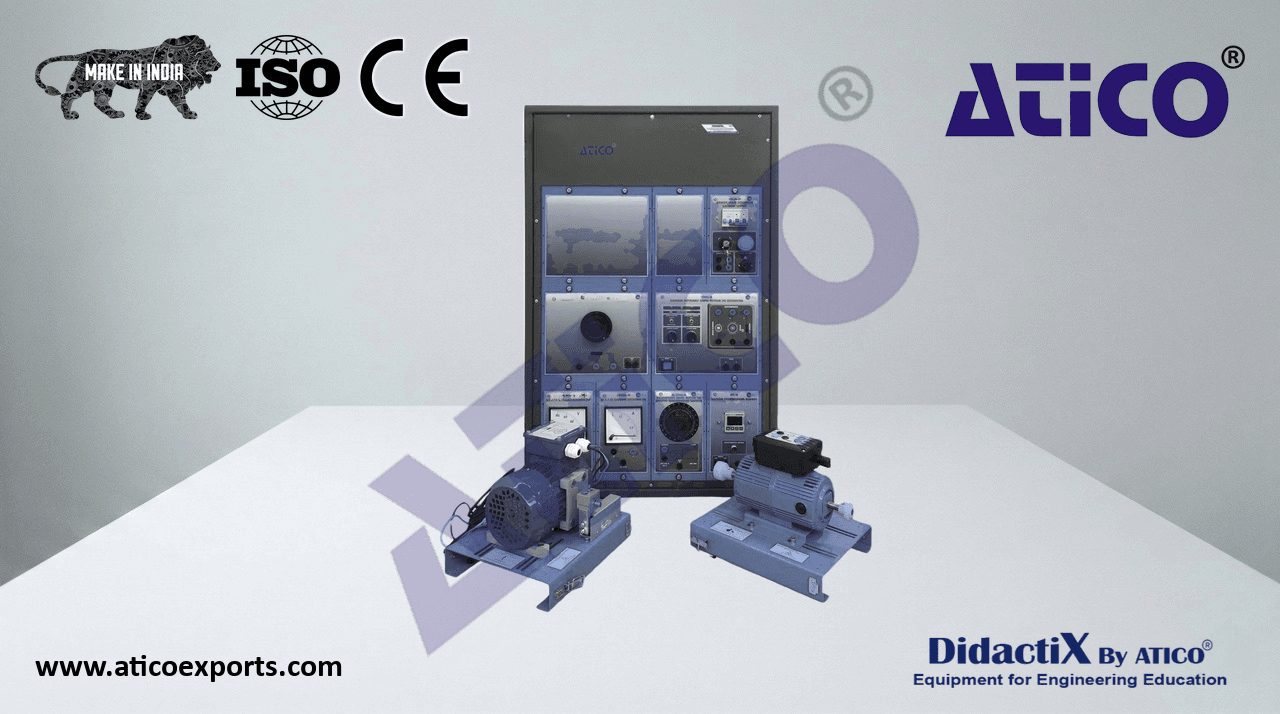

ATENG 11153 — DC Shunt Excitation Motor Application
The application “ATENG 11153” includes the following elements:
N-ALI02. Domestic Main Power Supply Module.
Supply voltage (single-phase): 230 VAC, 1PH + N.
ON / OFF removable key.
Output voltage connections:
Two single-phase: 230 VAC.
N-ALI02
Single-shase supply hose connecting plug.
Differential magnetothermal, 2 poles, 25 A, 30 mA AC, 6 KA.
Emergency stop push-button.
FRECP/LC. Eddy Current Brake with Load Cell.
Nominal current: 1.6 A.
Nominal braking torque: 1.4 Nm.
Maximum current: 1.8 A (do not exceed 10 seconds).
Maximum braking torque: 1.7 Nm.
Shaft height: 71 mm. FRECP/LC.
EMT3. DC Shunt Excitation Motor-Generator.
Nominal power: 300 W.
Nominal voltage: 200 V.
Nominal current: 1.5 A.
Speed: 3400 rpm.
EMT3
Shaft height: 71 mm.
N-VVCC/M. DC Motors Speed Controller Module (Intermediate option).
Supply voltage: 230 VAC.
Variable output voltage: 0 – 300 VDC.
Fuse: 2 A.
N-VVCC/M
N-VVCC. Advanced DC Motor Speed Controller Module.
Supply voltage: 230 VAC.
Three ON / OFF switches:
ON / OFF power switch.
Star-stop control activation switch.
Internal tacho dynamo feedback switch. N-VVCC
Two potentiometers:
Speed control.
Torque control.
Terminals:
Rotor terminals.
Excitation terminals.
Tacho dynamo terminals.
Three driver status leds: (red, yellow and green).
Variable output voltage: 0 – 300 VDC.
Fuses:
One of 1 A.
One of 2 A.
3
Specifications
MED65. Digital Multimeter.
This module has a digital multimeter of about 3 ½ digits, with double-jack ending cables of about
4 mm to facilitate interconnections.
With this digital multimeter we will be able to measure:
Voltage. MED65
Current.
Resistance.
Capacitors capacity.
Temperature.
TECNEL/TM. Hand Tachometer.
9 V battery.
Three positions switch to choice the measurement method.
Speed recording push-button.
Speed measurement push-button. TECNEL/TM
Disassemble pieces for different shafts.
Speed digital display.
N-REV. Single-Phase Variable Resistor Module.
Variable resistor: 150 Ohm.
Maximum power: 500 W.
Potentiometer.
Terminals: N-REV
Three terminals to choose all resistance or variable resistance.
Fuse: 2 A.
N-TM. Torque Measurement Module.
Single-phase power supply: 230 VAC.
Power switch.
Signals connection.
N-TM
