Digital Engine Instrument System Trainer

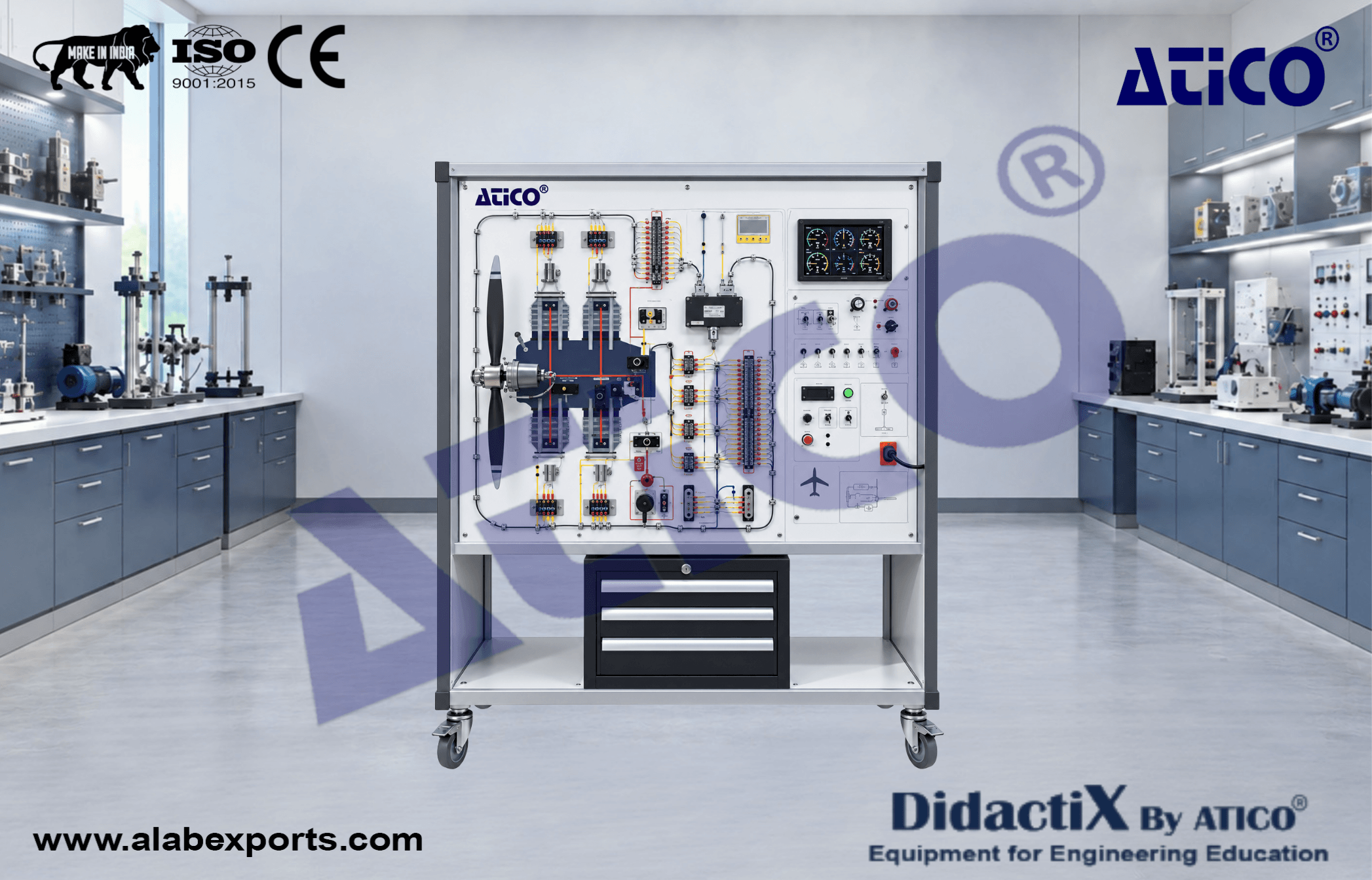

Digital Engine Instrument System Trainer is a complete and fully functional simulation of a typical aircraft piston engine instrument system. This training set provides hands-on maintenance training while also functioning as a demonstration tool for instructors. It demonstrates the principles of engine sensors and instruments and can also be used for teaching instrument connection, removal and replacement.

Example ATA Chapters :

• 31-10-00 Instrument & Control Panels
• 31-20-00 Independent Instruments
• 31-26-41 Aural Warning Module R&R
• 31-62-12 EFIS Control Panel R&R

Manufactured by Atico Export with quality-focused production and attention to engineering specifications for teaching and training purposes.

Components :

• Smart MFD Screen
• Engine Data Modules
• Analog Instruments
  • Fuel Temperature/Pressure Indicator
  • Oil Temperature/Pressure Indicators
• Sensors
  • Oil Temperature Sensor
  • Carburetor Air Temperature Sensor
  • Manifold Pressure Sensor
  • Fuel Level Sensor
  • Oil Pressure Sensor
  • Fuel Pressure Sensor
  • Engine RPM Sensor
  • Fuel Flow Sensor
  • Ammeter Shunt
  • CHT Thermocouples (Qty 4)
  • EGT Thermocouples (Qty 4)
  • OAT Sensor
  • Inductive Sensor
• Aircraft Circuit Breakers
• Throttle Lever
• Propeller Lever
• Power
  • Main Power
  • PDF
  • Tachometer
• Contacts
  • Pitot Heater
  • L/G
  • Taxi Light
• Auxiliary Flight Control Simulation
  • Aileron Trim
  • Elevator Trim
  • Flap Position
• Electronic Simulation of Sensors
  • Oil Temperature
  • Manifold Pressure
  • Engine RPM
  • Oil Pressure
  • Fuel Level
  • Fuel Pressure
• Sender Selector Panel
  • Fuel System
  • Oil System

Documentation :

• User's Manual
• Study Guide
• Instructor's Guide
• Components Diagrams

Power Specs :

• Electrical box
• Residual current device
• Emergency button
• Energy signal lamp
• 110 VAC, 60 Hz or 220–240 VAC, 50 Hz

• The system combines aircraft systems instrumentation and engine instrumentation.
• Functional engine monitoring system can be connected to engine sensors.
• Provision of engine sensor simulation.
• Instructor's Panel for fault insertion.
• Training video for teachers.
