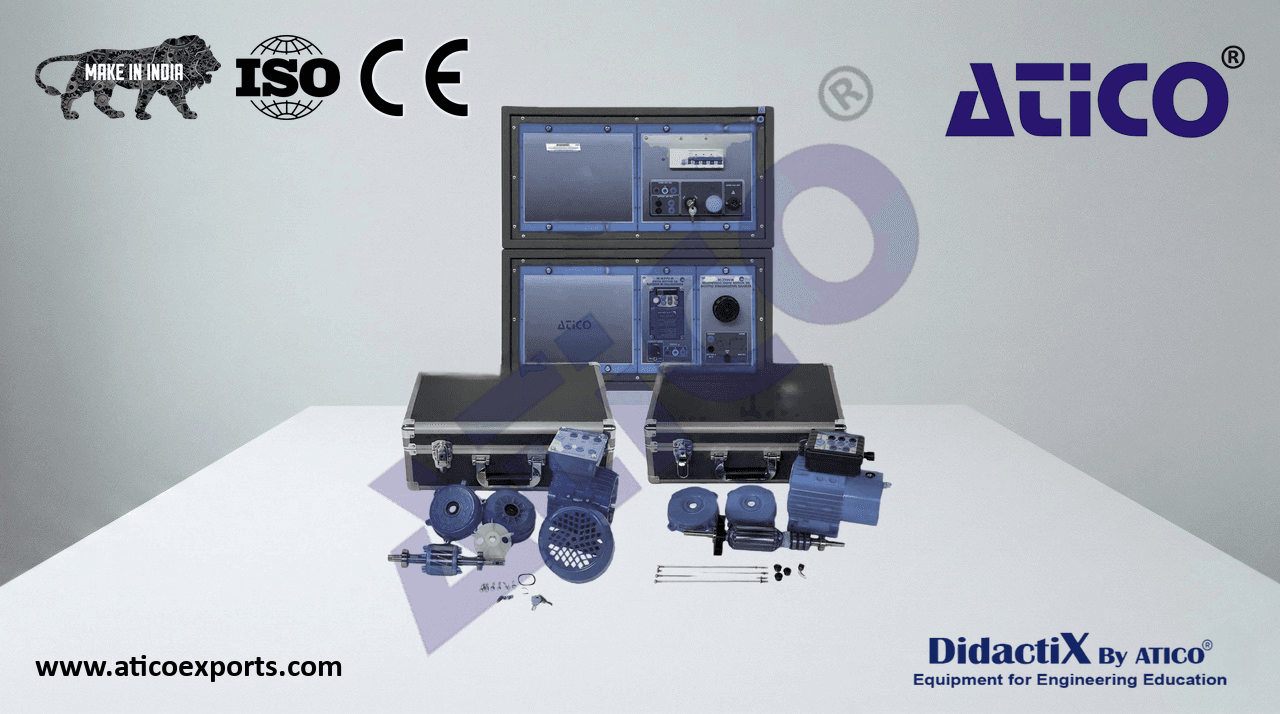

Dissectible Motors-Generators Application

The Disassembly Motors-Generators Application, for the training at theoretical-practical level about the assembly of the following electric motors: DC Compound with Shunt-Series Motor-Generator, Asynchronous Three-Phase Motor-Alternator, Asynchronous Three-Phase Motor of Squirrel Cage, Asynchronous Three-Phase Motor of Wound Rotor, Dahlander Three-Phase Motor, Asynchronous Three-Phase Motor of Two Independent Speeds, Asynchronous Single-Phase Motor with Starting Capacitor, Universal Motor, DC Permanent Magnet Motor, Asynchronous Single-Phase Motor with Starting and Running Capacitor, Asynchronous Three-Phase Motor of Squirrel Cage with "Y" Connection, DC Brushless Motor, Asynchronous Single-Phase Motor with Split Phase, Three-Phase Reluctance Motor, Three-Phase Shaded Pole Motor.

ATENG 11209 — Dissectible Motors-Generators Application

• The “ATENG 11209” application includes the following elements:
• N-ALI01. Industrial Main Power Supply Module.
• Supply voltage: 400 VAC, 3PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Three-phase + Neutral: 400 VAC.
  N-ALI01
• Single-phase: 230 VAC.
• Three-phase supply hose with IP44 3PN + E 32 A 400 V connecting plug.
• Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• MED65. Digital Multimeter (2 units).
• Digital multimeter with 3 ½ digits, with 4 mm double connector termination cables to facilitate
  interconnections.
• With this digital multimeter we can measure:
  Voltage.
  Current. MED65
  Resistance.
  Capacitors capacity.
  Temperature.
• BRLA. Compass.

BRLA

• Required elements (Not included):
• CHER. Tool Box.
  Crimper.
  Tin.
  Meter.
  Insulation tape.
  Heat shrink.
  Voltage tester screwdriver.
  Cross-head screwdriver and flat-head screwdriver.

CHER

Allen keys.

Soldering iron and soldering iron stand.

Rubber hammer.

Connection terminals.

Flanges.

Wire cutter.

Screw clamp terminals.

Wire strippers.

• Required elements (at least one) (Not included):
• DMG-K1: Dissectible of DC Independent Shunt-Series-Compound Excitation Motor-Generator Kit.
• EMT5-D. Dissectible DC Shunt/Series/Compound Excitation Motor-Generator.
• Nominal power: 300 W.
• Armature voltage: 200 VDC.
• Excitation voltage: 230 VDC.
• Armature current: 1.5 A.
• Excitation current: 0.4 A. EMT5-D
• Speed: 3400 / 7500 rpm.
• Shaft height: 71 mm.
  4

Specifications

• N-VVCC/M. DC Motor Speed Controller Module (Intermediate option).
• Supply voltage: 230 VAC.
• Variable output voltage: 0 – 300 VDC.
• Fuse: 2 A.
• N-REV. Single Phase Variable Resistor Module.
  N-VVCC/M
• Variable resistor: 150 Ohm.
• Maximum power: 500 W.
  Potentiometer.
• Terminals:
  Three terminals to choose all resistance or variable resistance.
• Fuse: 2 A.
  N-REV
• DMG-K2: Dissectible of AC Synchronous Three-Phase Motor Alternator Kit.
• EMT6-D. Dissectible Independent Excitation 3PH Synchronous Motor-Generator.
• Nominal power: 250 W.
• Nominal output voltage: 3 x 400 VAC.
• Frequency: 50 / 60 Hz.
• Speed: 3000 rpm.
• Nominal output current: 1 A.
  EMT6-D
• Nominal excitation current: 0.25 A.
• Shaft height: 71 mm.
• N-VVCA/M. AC Motors Speed Controller (Intermediate option).
  ON / OFF switch.
• Supply voltage: 230 VAC.
• Nominal power: 750 W.
• PWM output voltage connections:
• Three-phases: 230 VAC.
  N-VVCA/M
  10 K potentiometer for the induction motor control speed.
  Setting and visualization of the machine parameters.
• N-VVCC/M. DC Motor Speed Controller Module (Intermediate option).
  Setting and visualization of the machine parameters.
• Supply voltage: 230 VAC.
• Variable output voltage: 0 – 300 VDC.
• Fuse: 2 A.
  N-VVCC/M
• DMG-K3: Dissectible of Asynchronous Three-Phase Motor of Squirrel Cage Kit.
• -D. Dissectible 3PH Squirrel-Cage Motor.
• Nominal power: 370 W.
• Nominal voltage: 3 x 400 VAC.
• Frequency: 50 / 60 Hz.
• Speed: 900 / 1420 rpm.
• Nominal current: 1.05 / 1.35 A.
  EMT7-D
• Shaft height: 71 mm.
• DMG-K4: Dissectible of Asynchronous Three-Phase Motor with Wound Rotor Kit.
• EMT8-D. Dissectible 3PH Wound Motor.
• Nominal power: 300 W.
• Nominal voltage: 3 x 230 / 400 VAC Δ / Y.
• Frequency: 50 / 60 Hz.
• Poles number: 2.
• Speed: 2870 rpm.
  EMT8-D
• Nominal current: 1 / 0.5 A.
• Shaft height: 71 mm.
  5

Specifications

• DMG-K5: Dissectible of Dahlander Three-Phase Motor Kit.
• EMT9-D. Dissectible Dahlander Motor, 2 speeds.
• Nominal power: 370 W.
• Nominal voltage: 3 x 400 VAC.
• Frequency: 50 / 60 Hz.
• Poles number: 4.
• Speed: 1400 / 2800 rpm. EMT9-D
• Nominal current: 1.2 / 1.55 A.
• Shaft height: 71 mm.
• DMG-K6: Dissectible of Asynchronous Three-Phase Motor of Two Independent Speeds Kit.
• EMT10-D. Dissectible 3PH Squirrel-Cage Motor, 2 speeds.
• Nominal power: 240 / 370 W.
• Nominal voltage: 3 x 400 VAC.
• Frequency: 50 / 60 Hz.
• Speed: 900 / 1420 rpm.
• Nominal Current: 1.05 / 1.35 A.
  EMT10-D
• Shaft height: 71 mm.
• DMG-K7: Dissectible of Asynchronous Single-Phase Motor with Starting Capacitor Kit.
• EMT11-D. Dissectible 1PH Squirrel-Cage Motor with Starting Capacitor.
• Nominal power: 370 W.
• Nominal voltage: 3 x 230 VAC.
• Frequency: 50 / 60 Hz
• Speed: 2780 rpm.
• Nominal current: 2.53 A.
  EMT11-D
• Shaft height: 71 mm.
• DMG-K8: Dissectible of Universal Motor Kit.
• EMT12-D. Dissectible Universal Motor.
• Nominal power: 230 W.
• Nominal voltage: 110 – 240 VAC / VDC.
• Speed: 9000 rpm.
• Shaft height: 71 mm.
  EMT12-D
• N-REV. Single Phase Variable Resistor Module.
• Variable resistor: 150 Ohm.
• Maximum power: 500 W.
  Potentiometer.
• Terminals:
  Three terminals to choose all resistance or variable resistance. N-REV
• Fuse: 2 A.
• DMG-K9: Dissectible of Asynchronous Single-Phase Motor with Starting and Running
  Capacitor Kit.
• EMT16-D. Dissectible 1PH Squirrel-Cage Motor with Starting and Running Capacitor.
• Nominal power: 370 W.
• Nominal voltage: 110 / 220 VAC.
• Speed: 2780 rpm.
• Frequency: 50 / 60 Hz.
• Nominal current: 1.85 A. EMT16-D
• Shaft height: 71 mm.
  6

Specifications

• DMG-K10: Dissectible of DC Brushless Motor Kit.
• EMT18-D. Dissectible DC Brushless Motor.
• Nominal power: 80 W.
• Nominal voltage: 24 VDC.
• Nominal current: 3.3 A.
• Speed: 3250 rpm.
• Shaft height: 71 mm. EMT18-D
• N-ALI03. AC Auxiliary Power Supply (24 VAC) Module.
• Supply voltage (single-phase): 230 VAC 1PH + N.
• Output voltage:
• Single-Phase 24 VAC / 12 VAC.
• 24 VDC.
• 0 – 24 VDC through potentiometer.
  N-ALI03
• DMG-K11: Dissectible of Asynchronous Single-Phase Motor with split phase Kit.
• EMT20-D. Dissectible 1PH Squirrel-Cage Motor with Split Phase.
• Nominal power: 370 W.
• Nominal voltage: 220 VAC.
• Speed: 2780 rpm.
• Frequency: 50 Hz.
• Armature current: 2.53 A. EMT20-D
• Shaft height: 71 mm.
• DMG-K12: Dissectible of Three-phase Reluctance Motor Kit.
• EMT21-D. Dissectible 3PH Reluctance Motor.
• Nominal power: 300 W.
• Nominal voltage: 3 x 400 VAC.
• Frequency: 50 / 60 Hz.
• Speed: 3000 rpm.
• Nominal current: 1.4 A. EMT21-D
• Shaft height: 71 mm.
• DMG-K13: Dissectible of Single-phase Shaded Pole Motor Kit.
• EMT22-D. Dissectible 1PH Shaded Pole Motor.
• Nominal power: 34 W.
• Nominal voltage: 230 / 240 VAC.
• Frequency: 50 / 60 Hz.
• Speed: 1550 rpm.
  EMT22-D
• Shaft height: 71 mm.
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
