ATENG 12964 — Domestic Gas Supply Experimentation Unit
Anodized aluminum frame and panels made of painted steel.
The unit includes wheels to facilitate its mobility.
Main metallic elements made of stainless steel.

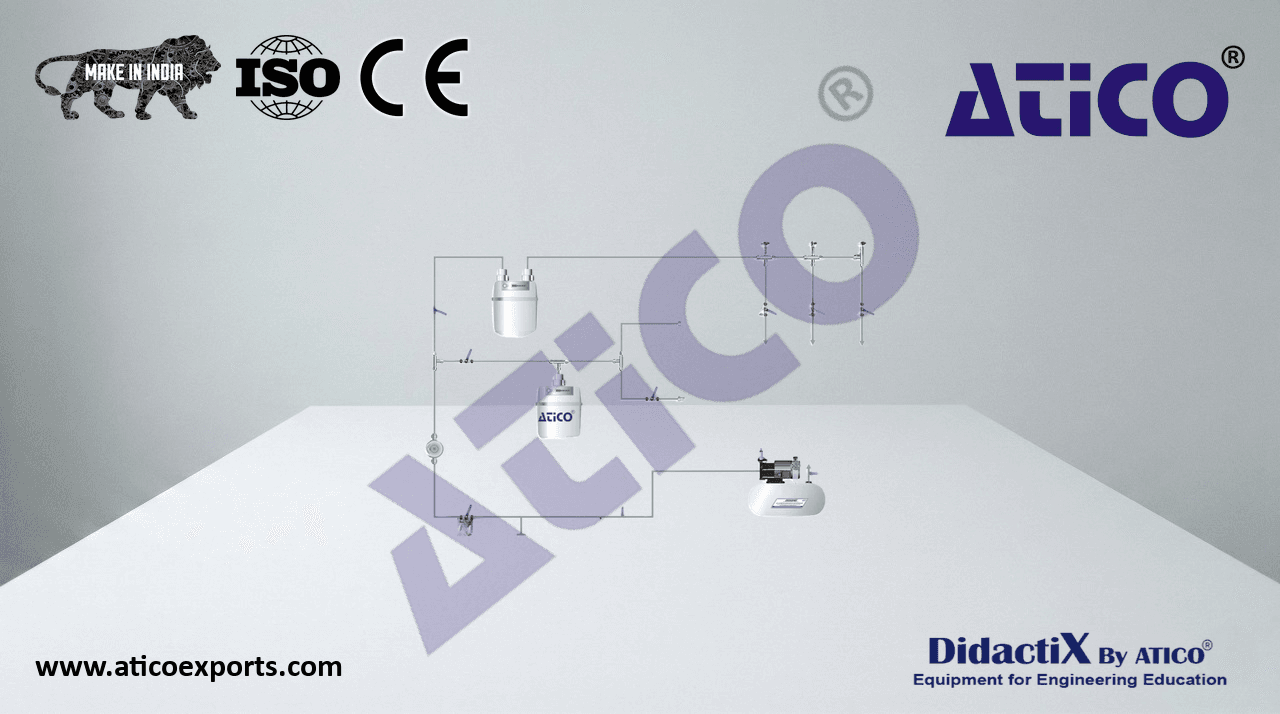

Diagram in the front panel with distribution of the elements similar to the real one.
- Air supply:
- Compressor. Power: 1.5 kW.
- Compressed air reservoir with relief valve. Capacity: 6 l.
Compressed air connection with ball valve in the front panel.
- Air pressure regulator:
- Maximum pressure: 10 bar.
- Outlet pressure: 0.01 – 0.6 bar.
- Gas pressure regulator:
- Inlet pressure: 350 mbar.
- Outlet pressure: 20 mbar.
Ball valve for the flow regulation and distribution.
- Gas supply pipe:
Gas connection with ball valve.
Gas connection.
- Gas meter with one connection. Maximum flow rate: 6 m³/h.
Two ball valves for the flow regulation and distribution.
- Leaks simulation pipe:
Three microflow regulation valves to simulate leaks.
- Gas meter with two connections. Maximum flow rate: 6 m³/h.
Four ball valves for the flow regulation and distribution.
Leak detection spray.
- Leak detection device. Maximum water column: 500 mm.
Cables and Accessories, for normal operation.
