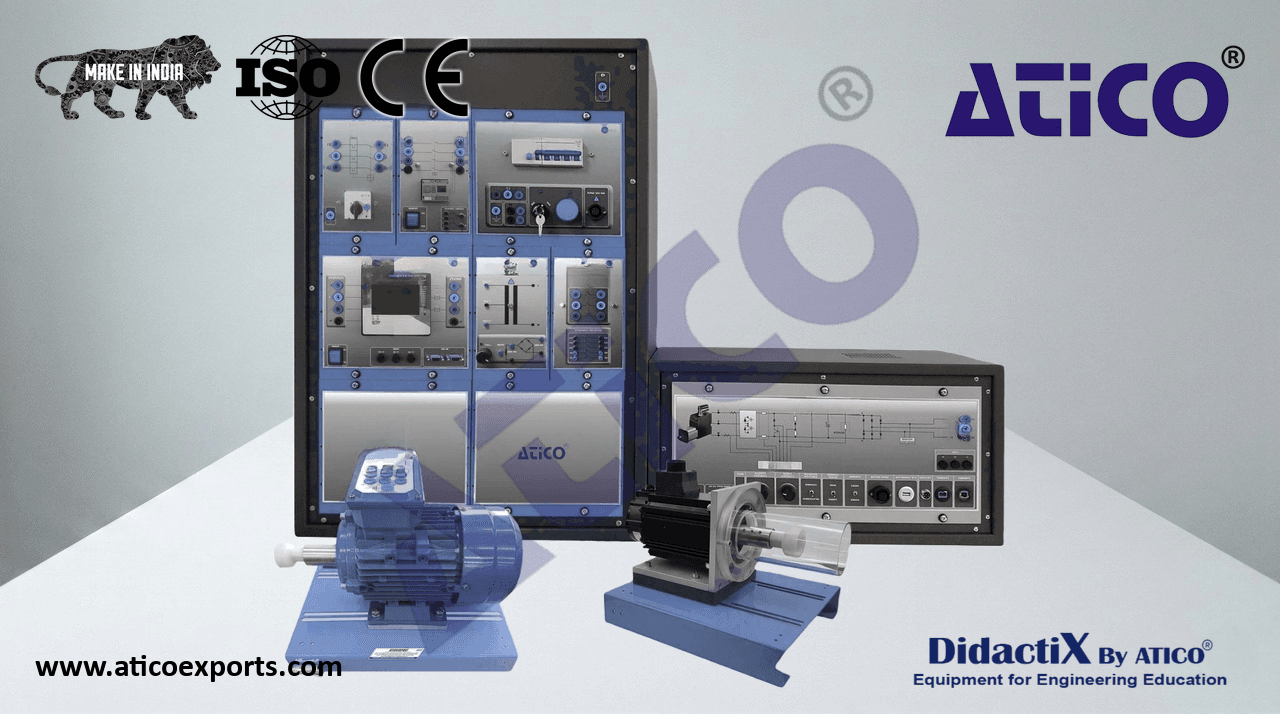

Three-Phase supply hose with IP44 3PN+E 32A 400V connecting plug.
Differential magnetothermal, 4 poles, 25 A, 300 mA AC 6 KA.
Emergency stop push button.
N-REL09. Time Electronic Relay against Overcurrents Module (0-16 A).
Nominal voltage: 230 / 24 VAC.
Time electronic relay against overcurrents module.
Contacts:
Normally Open Contact (NO).
Normally Close Contact (NC). N-REL09
Common point of normally close/open contacts.
N-MPS. Motor Protection (1.6 A-2.5 A).
ON/OFF switch.
Limit thermal current:
From 1.6 A to 2.5 A.
Input power terminals:
N-MPS
Power input connections: L1, L2, L3.
Output power terminals:
Power output connections: L1, L2, L3.
Ground Terminal.
/1K. 3PH Squirrel-Cage Motor, 1 kW.
Nominal power: 1100 W.
Nominal voltage: 3x 230/400 VAC Δ/Y.
Frequency: 50/60 Hz
Number of poles: 2.
EMT7/1K
Speed: 2730 rpm.
Nominal current: 2.52 / 1.45 A.
N-SERV1K. 1 kW Servomotor Module.
Dynamic and static four-quadrant operation. Speed and torque signals.
Connection voltage: 400 V.
Frequency: 50/60 Hz.
Maximum power output: 10 kVA.
Maximum speed: 4000 rpm.
Maximum torque: 30 Nm.
Temperature monitoring.
Speed control potentiometer.
Torque control potentiometer.
Control mode selection switch torque / speed servomotor control permission switch. N-SERV1K
Motor turning reversal switch.
GND terminal.
3
Specificacions
MED65. Digital Multimeter.
This digital multimeter of about 3 ½ digits, with double-jack ending cables of about 4 mm to facilitate
interconnections.
With this digital multimeter we will be able to measure:
Voltage.
Current.
MED65
Resistance.
Capacitors capacity.
Temperature.
N-EALD. Electrical Network Analyzer Module with Oscilloscope and Data Acquisition.
The network analyzer module allows fulfilling measurements, displaying and analyzing all the parameters
of the AC electrical networks. It has an LCD screen and push-buttons for the navigation through the
different menus. It includes specific software for monitoring current and voltage curves, harmonics display,
tariffs programming, alarms programming and electrical parameters storage.
Features: N-EALD
Multifunctional three-phase power meter:
Single and three-phase voltage. Up to 690 VAC L-L.
Line and neutral nominal current: 10 A.
Active, reactive and apparent power.
Suitable frequencies: 25 Hz, 50 Hz, 60 Hz y 400 Hz.
Display of the V-I vector diagram.
Supply voltage: 85 - 265 VAC.
Energy quality control:
Current and voltage individual harmonics measurement. Up to the 40 th harmonic.
Voltage and current THD, TDD & K-factor.
Maximums and minimums display.
Waveforms display, 128 samples/sec.
Events and data storage.
Harmonics analyzer:
Voltage and current THD, TDD current and K-factor, up to the 40 th harmonic.
Current and voltage harmonic spectrum and angles.
Tariff programming:
Class 0.5S IEC 62053 - 22, active and reactive power in four quadrants.
Measurement of the total and per phase three-phase active, reactive and apparent powers.
Usage time, four energy/demand records of total tariffs.
Eight tariffs, four seasons, four types of days.
Automatic daily report of energy consumption maximums and minimums.
Communications:
Modbus TCP communication protocol with Ethernet interface.
N-PSM. Power Switch Module.
Power terminals:
Four input terminals (3 PH+N).
Four output terminals (3PH+N).
Auxiliary contacts:
One NO contact.
N-PSM
One NC contact.
Two push-buttons to open/close the power switch and the auxiliary contacts.
Two 24 VDC control inputs.
Two 24 VDC voltage outputs.
4
Specificacions
N-DCPWS-24V/120W. 24VDC, 120W Power Supply Module.
DC Power supply.
