Electrotechnics Application (Motors)

The Electrotechnics Application (Motors), to study different motor types: single-phase induction motor with starting and running capacitor, universal motor, three-phase squirrel cage induction motor.

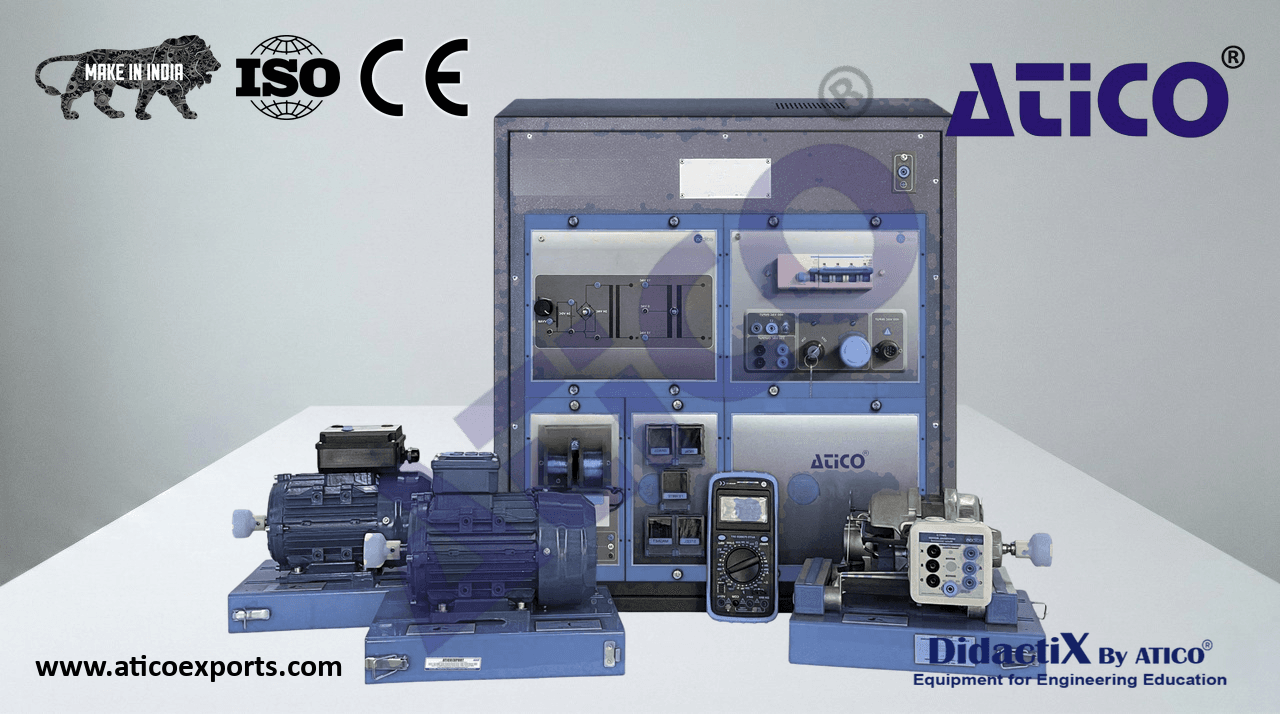

ATENG 11122 — Electrotechnics Application (Motors)

• The “ATENG 11122” application includes the following elements:
• N-ALI01. Industrial Main Power Supply Module.
• Supply voltage: 400 VAC, 3PH + N.
  ON / OFF removable key.
• Output voltage connections:
• Three-phase + Neutral: 400 VAC.
• Single-phase: 230 VAC.
• Three-phase supply hose with IP44 3PN + E 32 A 400 V connecting plug.
  N-ALI01
• Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
  Emergency stop push-button.
• N-ALI10. Power Supply Module.
• Supply voltage (single-phase): 230 VAC, 1PH + N.
• Output voltage:
• 15 – 0 – 15 VAC.
• 24 VAC.
• 24 VDC.
• 0 – 24 VDC (adjustable).
  N-ALI10
• EMT16. 1PH Squirrel-Cage Motor with Starting and Running Capacitor.
• Supply voltage: 110 – 220 V.
• Power: 370 W.
• Speed: 2780 rpm.
• Frequency: 50 / 60 Hz
• Armature current: 1.85 A.
• Shaft height: 71 mm.
  EMT16
• EMT12. Universal Motor.
• Supply voltage: 110 – 240 VAC/ VDC.
• Power: 0.3 HP.
• Speed: 9000 rpm.
• Shaft height: 71 mm.
• . 3PH Squirrel-Cage Motor.
  EMT12
• Nominal power: 370 W.
• Nominal voltage: 3 x 230 / 400 VAC Δ/Y.
• Frequency: 50 / 60 Hz.
• Number of poles: 2.
• Speed: 2730 rpm.
• Nominal current: 1.67 / 0.97 A.
• Shaft height: 71 mm.
  EMT7
• N-VAR16. Electromagnetism Kit with a DC Motor / Generator Set.
  Solenoids of 1000 turns and 2000 turns.
  Cores of brass, stainless steel, ferrite and magnetic materials.
• Motor/generator set with attached tachometer (24 VDC).
• MED65. Digital Multimeter.
• This 3 ½ digit digital multimeter, with dual 4 mm jack connector termination leads for easy
  interconnections. N-VAR16
• With this digital multimeter we will be able to measure:
  Voltage.
  Current.
  Resistance.
  Capacitors capacity.
  Temperature.
  MED65
• All necessary cables to realize the practical exercises are included.
  Cables and accessories, for normal operation.
