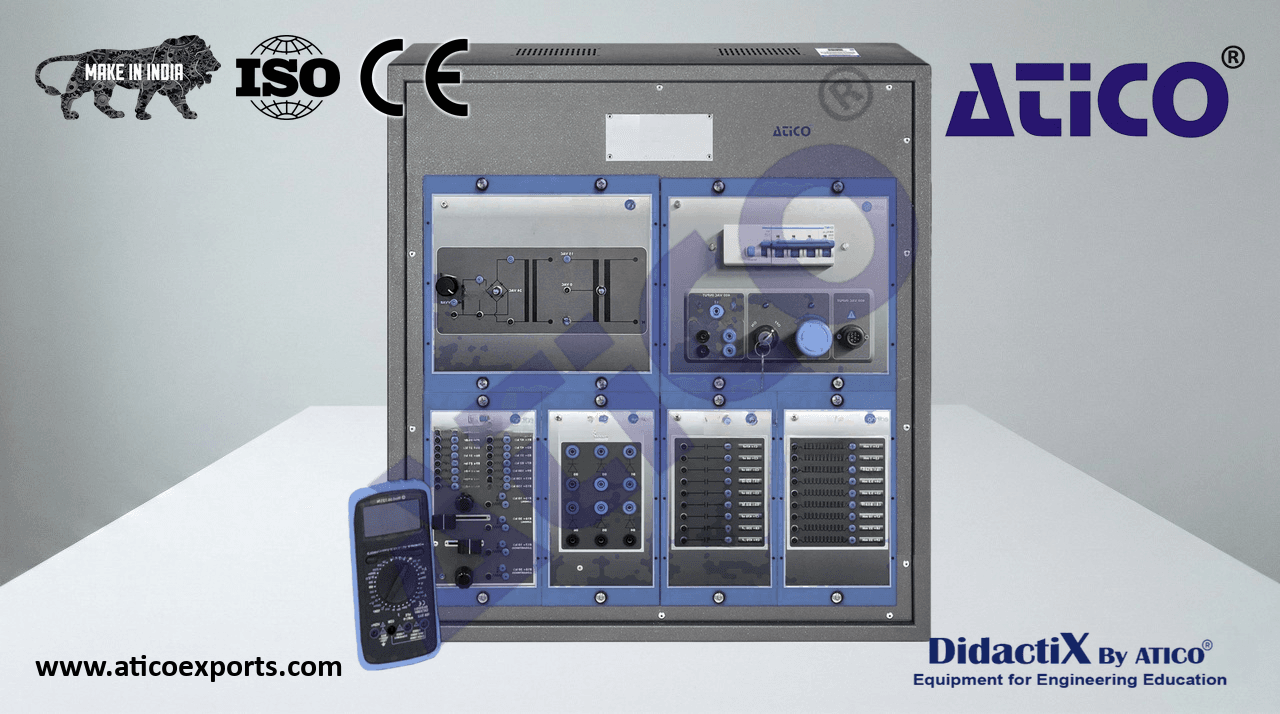

The “ATENG 11051” application includes the following elements:
N-ALI01. Industrial Main Power Supply Module.
Supply voltage: 400 VAC, 3PH + N.
ON / OFF removable key.
Output voltage connections:
Three-phase + Neutral: 400 VAC.
Single-phase: 230 VAC.
N-ALI01
Three-phase supply hose with IP44 3PN + E 32 A 400 V connecting plug.
Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
Emergency stop push-button.
N-ALI10. Power Supply Module.
Supply voltage (single-phase): 230 VAC, 1PH + N.
Output voltage:
15 – 0 – 15 VAC.
24 VAC.
24 VDC.
0 – 24 VDC (adjustable).
N-ALI10
N-CAR30. Inductances Module.
Nominal voltage: 24 V.
Inductances:
Two 1 mH inductances.
One 2.2 mH inductance.
Two 3.3 mH inductances.
Two 10 mH inductances.
N-CAR30
Two 22 mH inductances.
N-CAR31. Capacitors Module.
Nominal voltage: 24 V.
Capacitors:
One 47 µF non-polarised capacitor.
One 68 µF non-polarised capacitor.
Two 100 µF non-polarised capacitors.
One 220 µF non-polarised capacitor.
One 330 µF non-polarised capacitor. N-CAR31
One 470 µF non-polarised capacitor.
One 220 µF polarised capacitor.
One 470 µF polarised capacitor.
N-CAR32. Rectifier Diodes Module.
Nominal voltage: 230 V.
Rectifiers: 6 x 40 A rectifier diodes.
N-CAR32
N-CAR33: Resistive Components Module.
Nominal voltage: 24 V.
Resistors:
Three 47 k Ohm resistors.
Three 51 k Ohm resistors.
Two 82 k Ohm resistors.
Two 100 k Ohm resistors.
N-CAR33
One 120 k Ohm resistors.
Three 150 k Ohm resistors.
One 10 k Ohm linear 5 W wound potentiometer.
One 50 k Ohm linear potentiometer.
One 10 k Ohm logarithmic potentiometer.
One 50 k Ohm logarithmic potentiometer.
3
Specifications
MED65. Digital Multimeter.
This digital multimeter of about 3 ½ digits, with double-jack ending cables of about 4 mm to
facilitate interconnections.
With this digital multimeter we will be able to measure:
Voltage.
Current.
Resistance. MED65
Capacitors capacity.
Temperature.
All necessary cables to realize the practical exercises are included.
Cables and accessories, for normal operation.
